Engine Controls/Electrical - Service Manual Revisions

NUMBER: 25-01-94

GROUP: Emissions

DATE: Feb. 25, 1994

REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS**

Models:
1995 Neon - Publication No. 81-270-5025

DESCRIPTION OF CHANGES

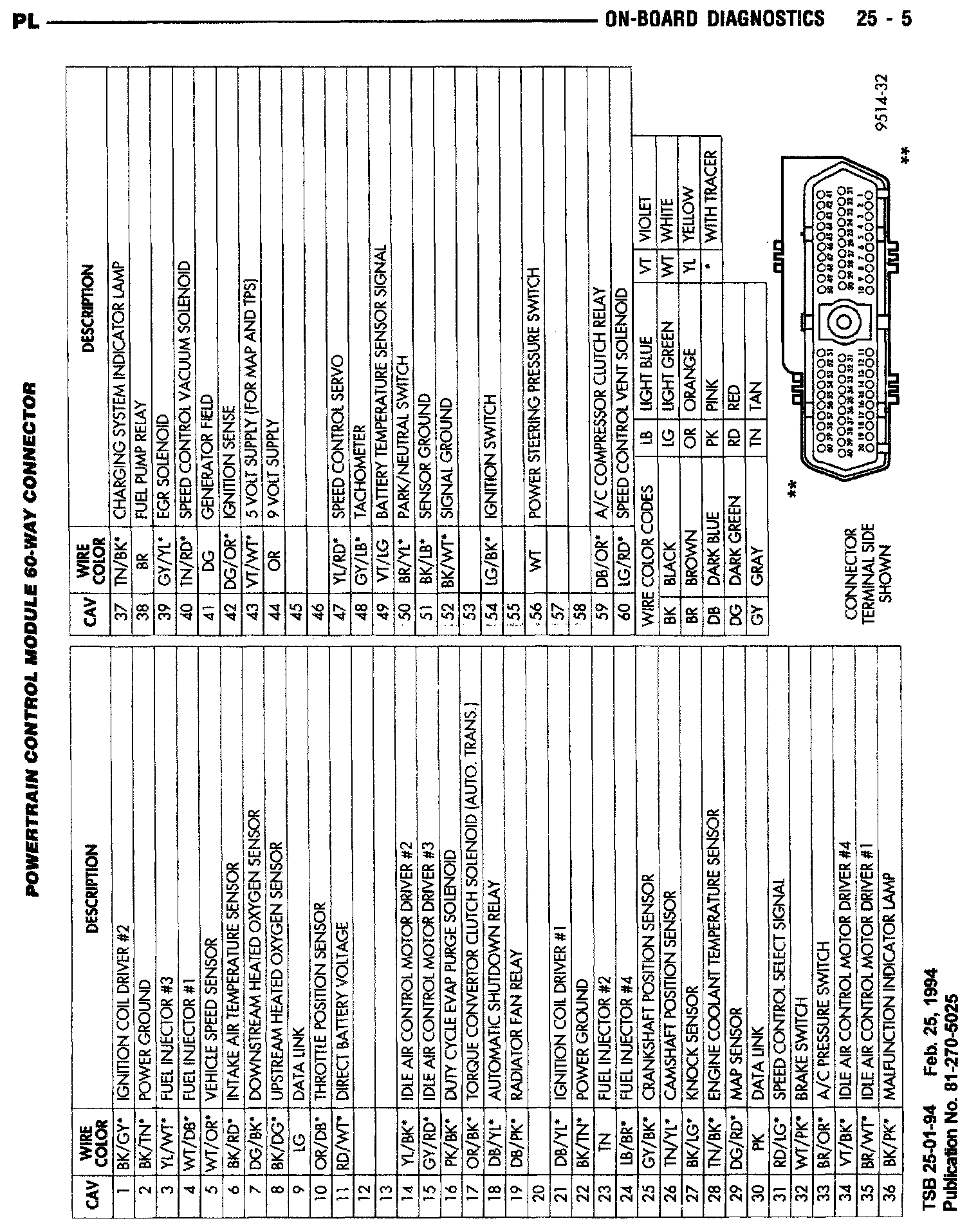

60 Way Connector Numbering





25-5

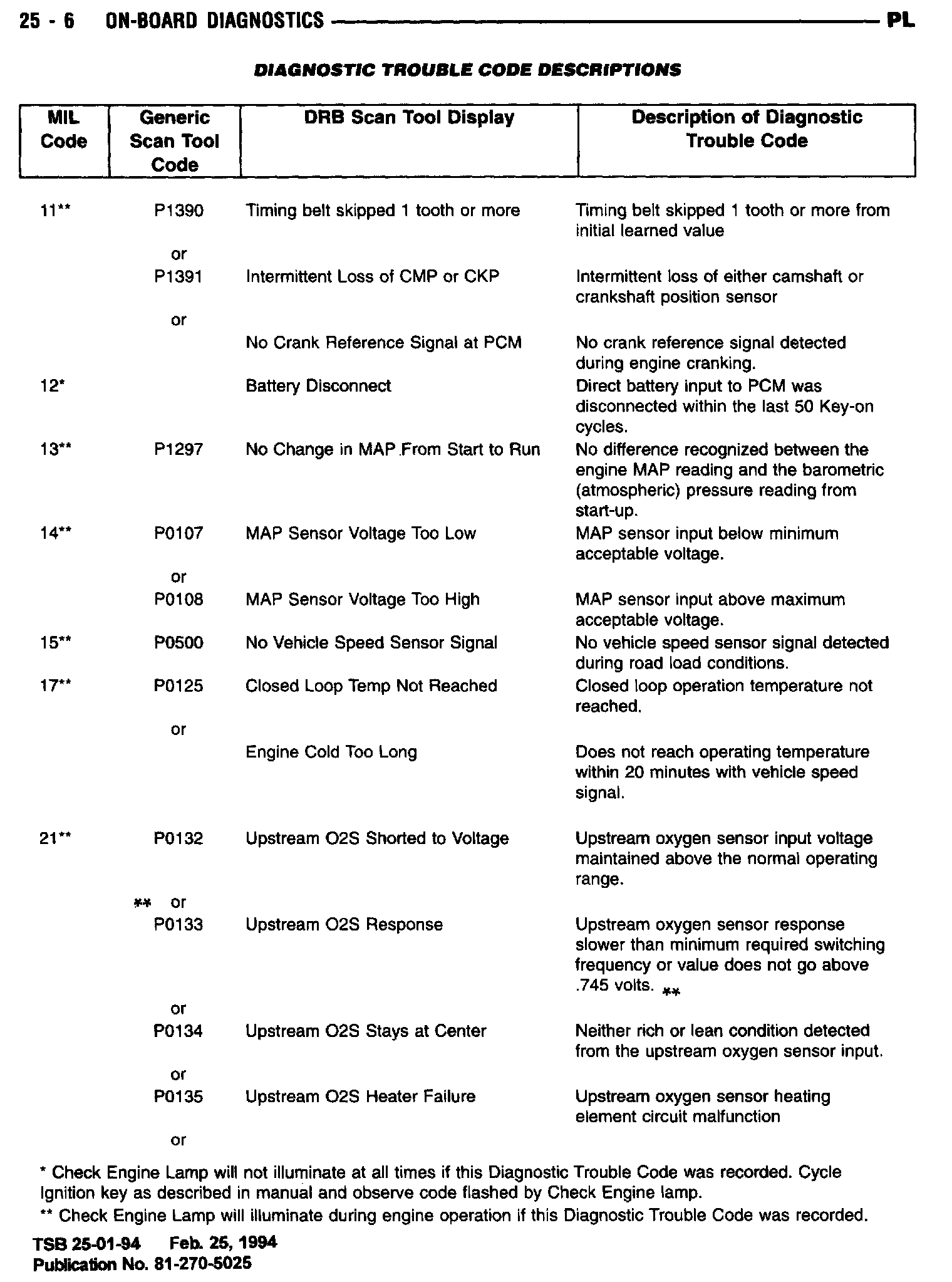

Code PO133 O2S Voltage





25-6

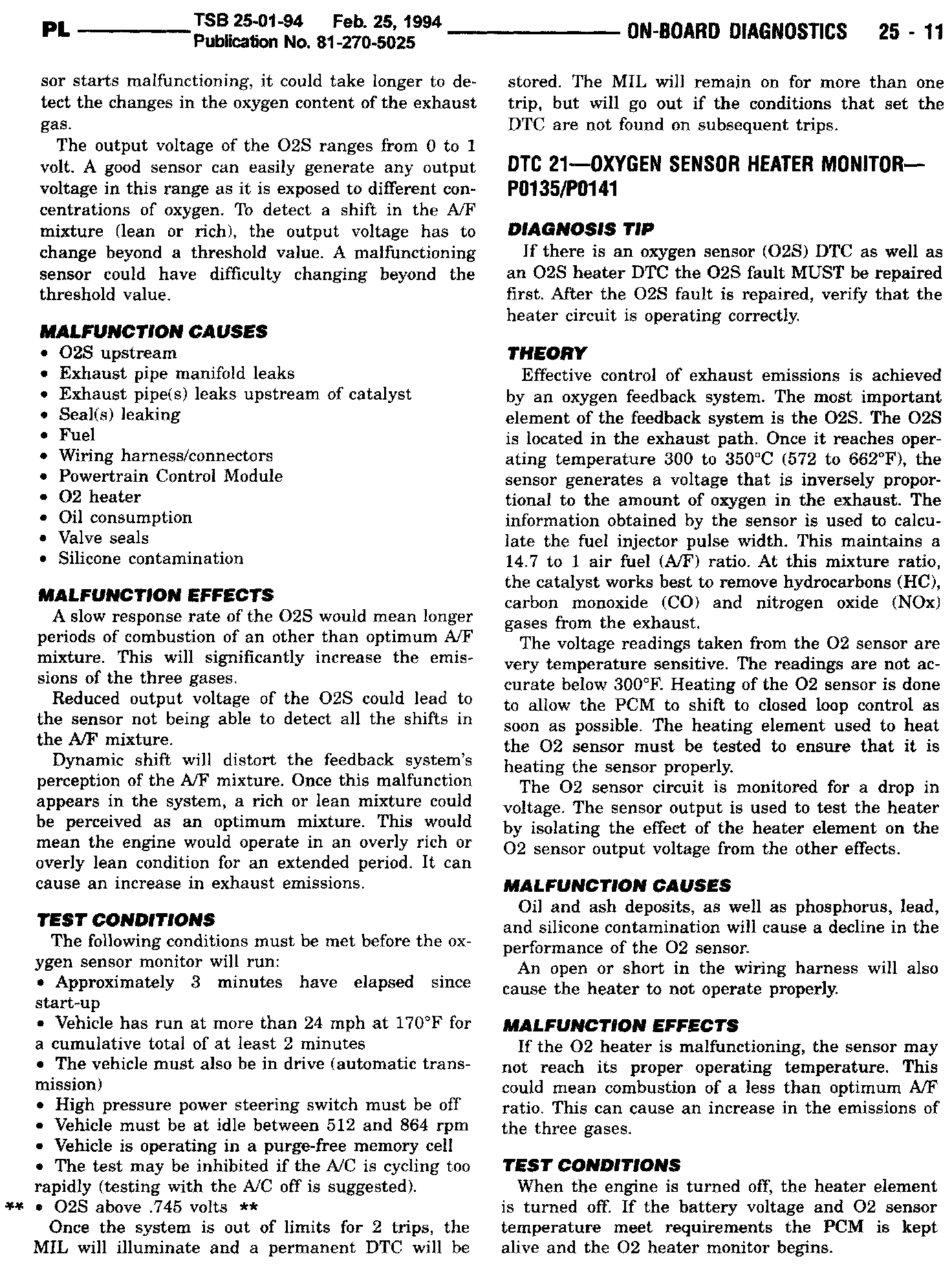

Test Conditions O2S





25-11

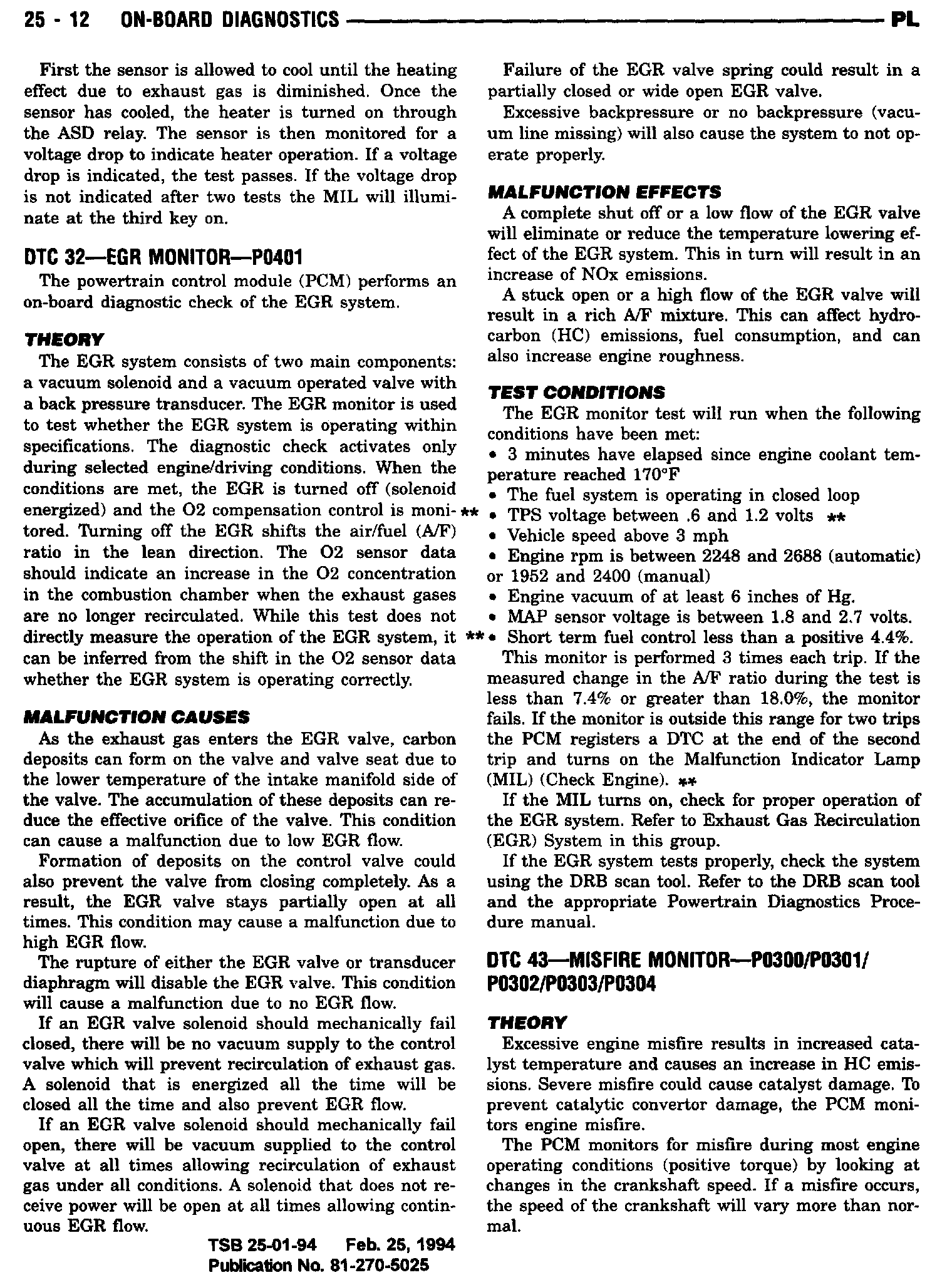

Test Conditions TPS Voltage & A/F Radio





25-12

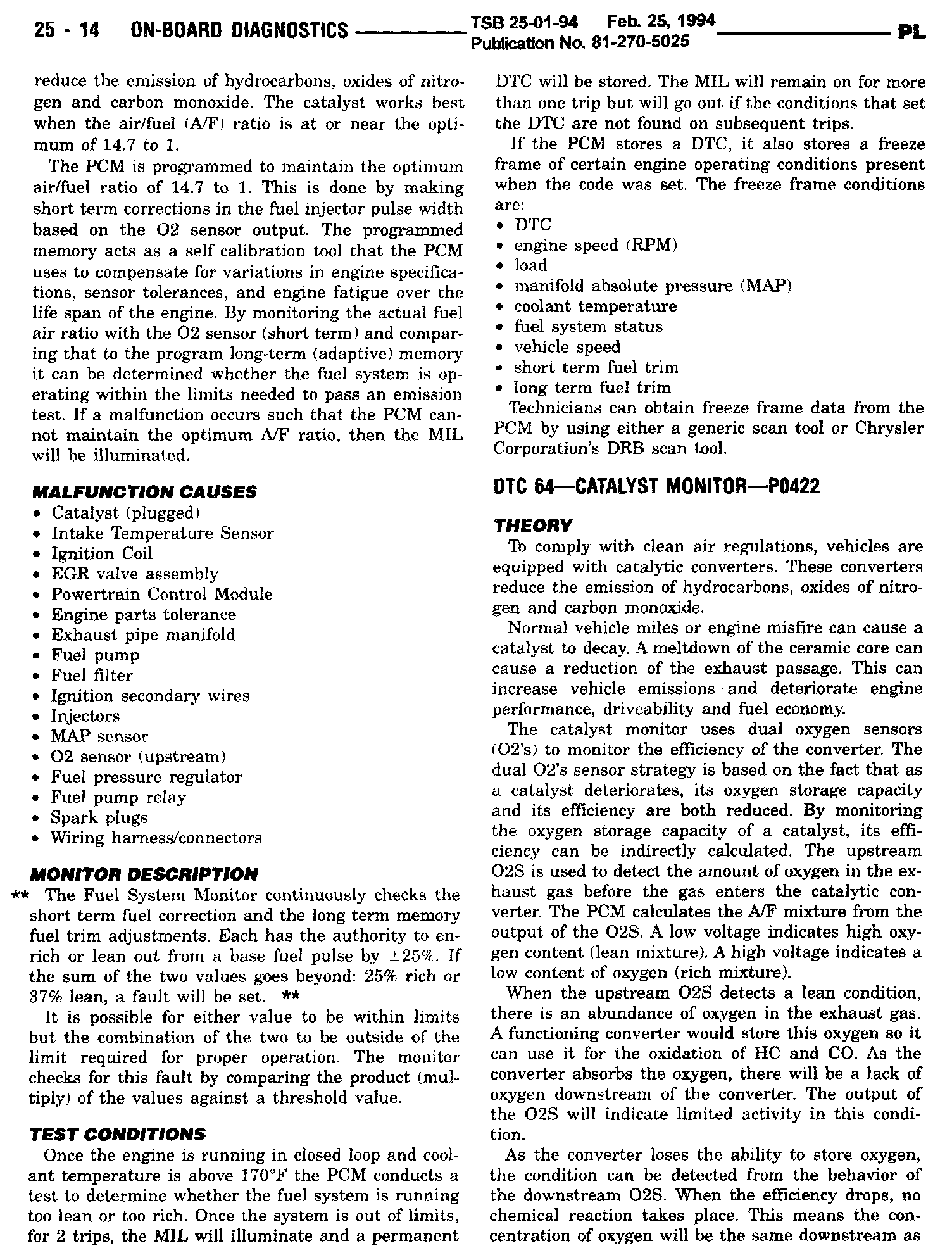

Monitor Description





25-14

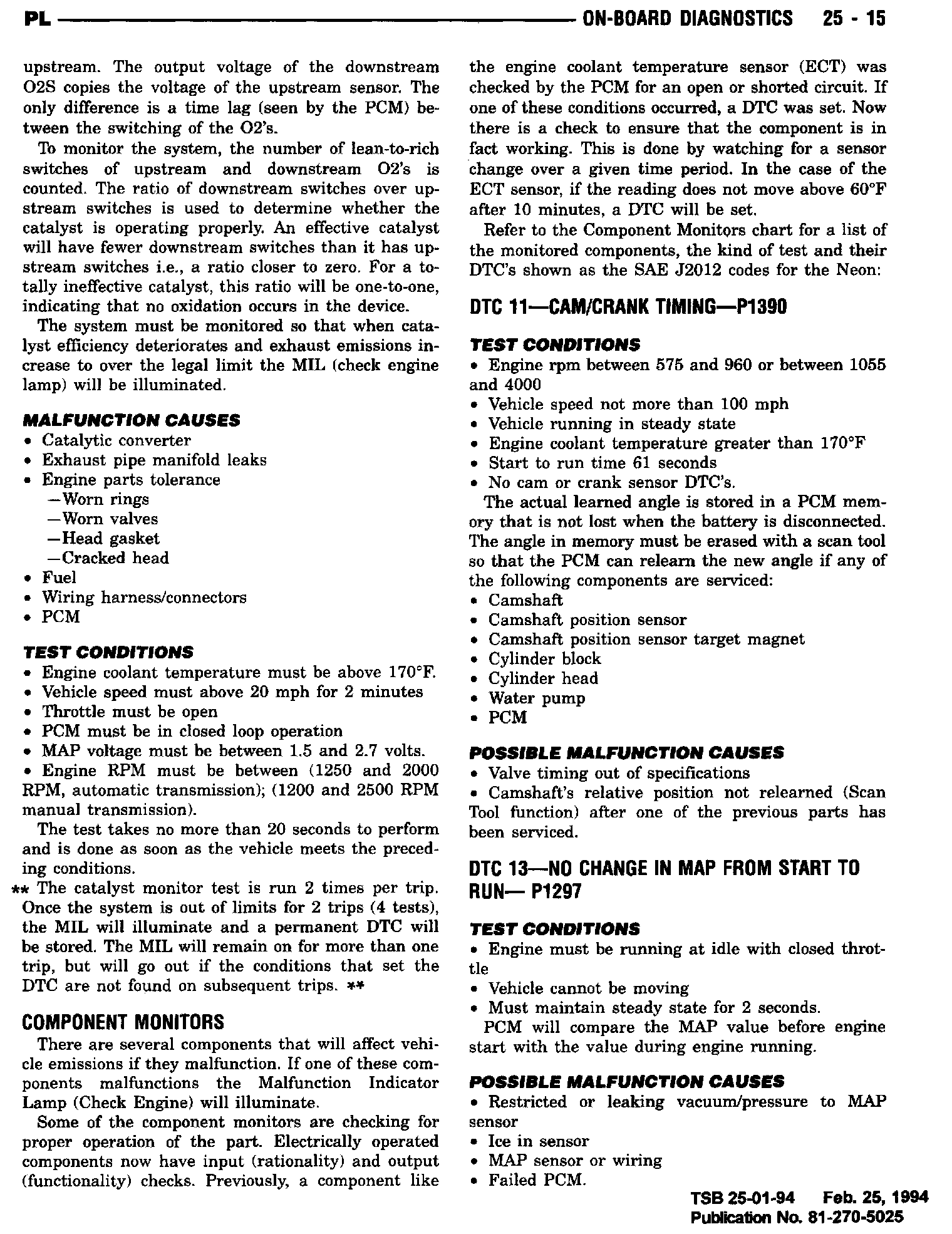

Test Conditions





25-15
