Service Point Locations

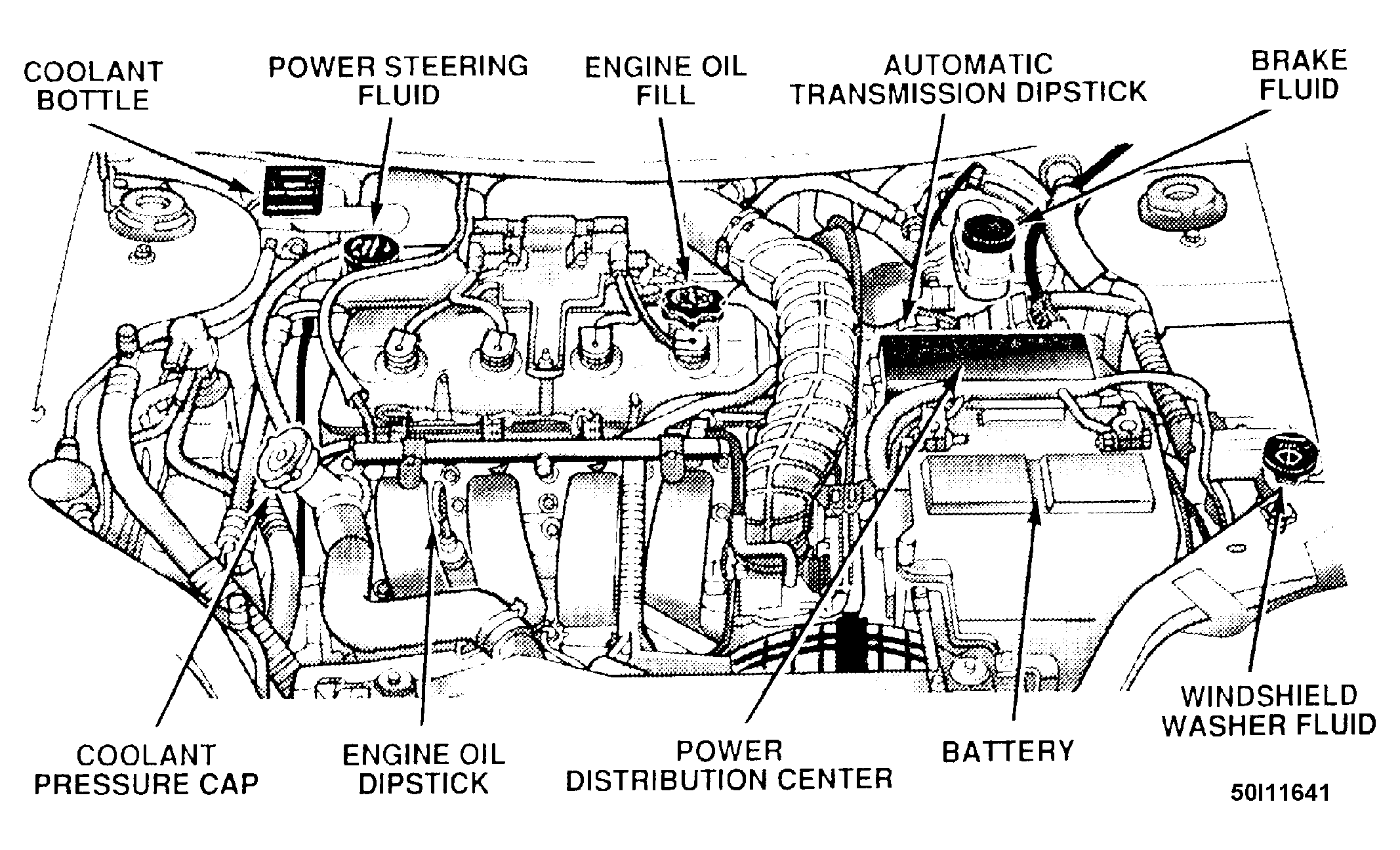

Fig 1: Service Point Locations (2.0L SOHC Engine)
G50I11641Courtesy of CHRYSLER CORP.

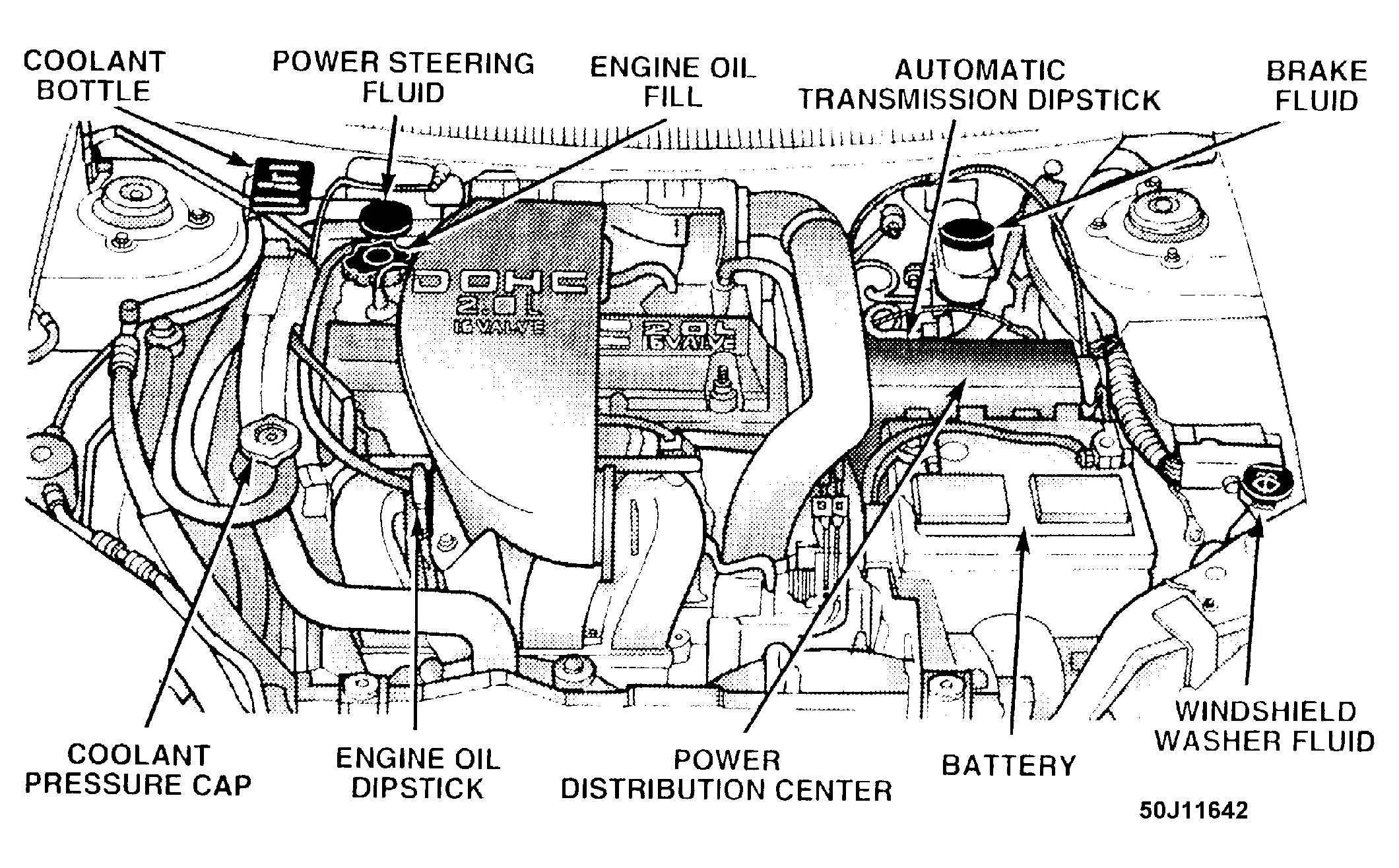

Fig 2: Service Point Locations (2.0L DOHC Engine)
G50J11642Courtesy of CHRYSLER CORP.
