Engine Control Module
MULTI ECU CONNECTORS
(View from Harness End)

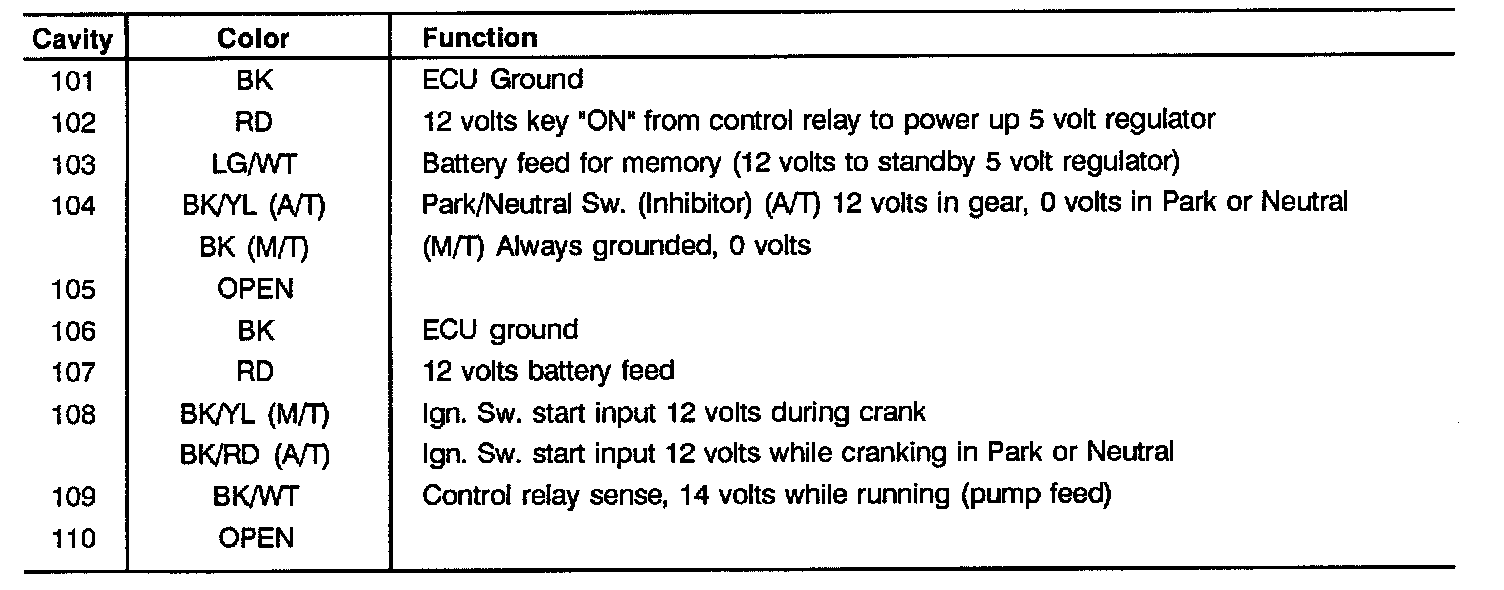

10-WAY CONNECTOR

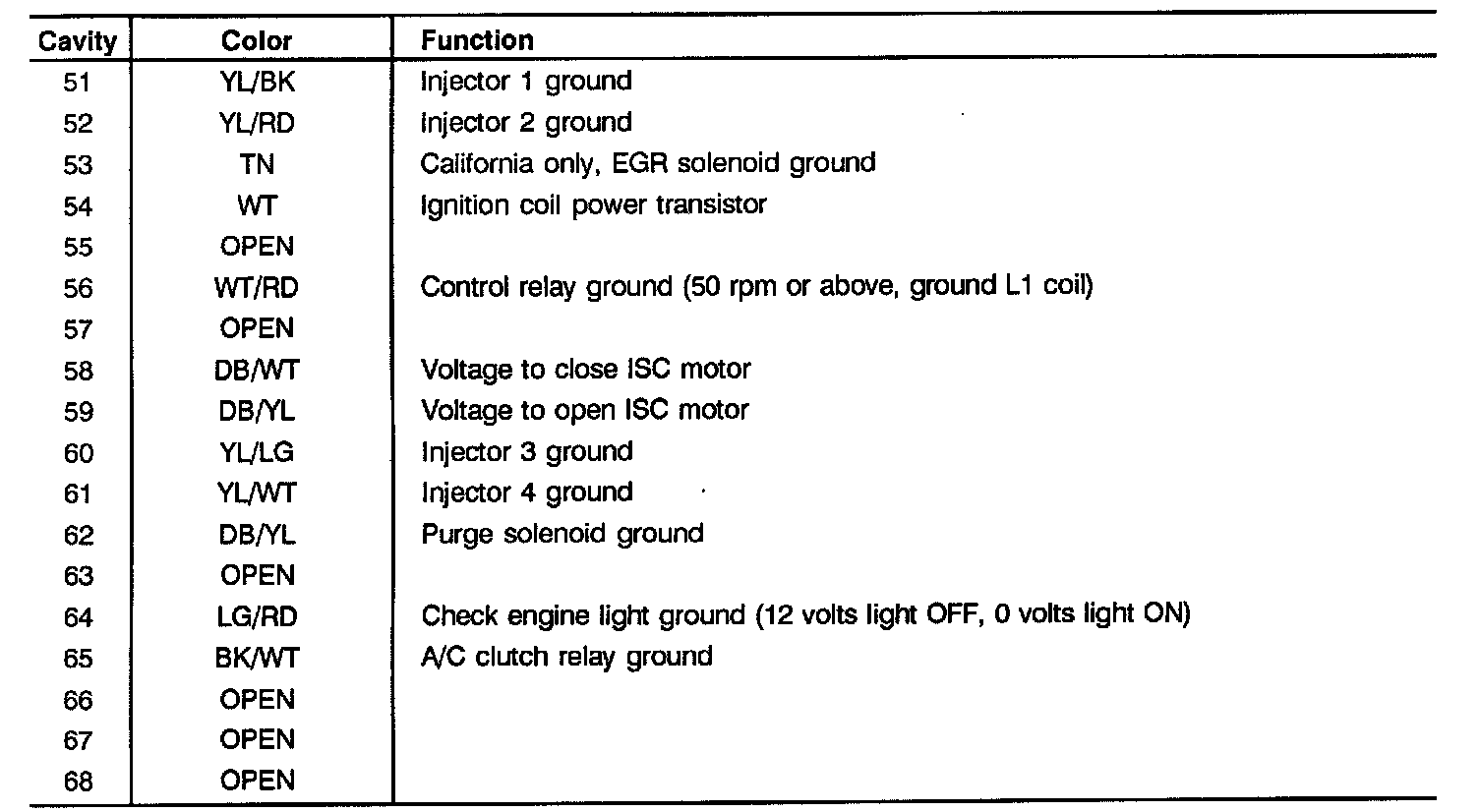

18-WAY CONNECTOR

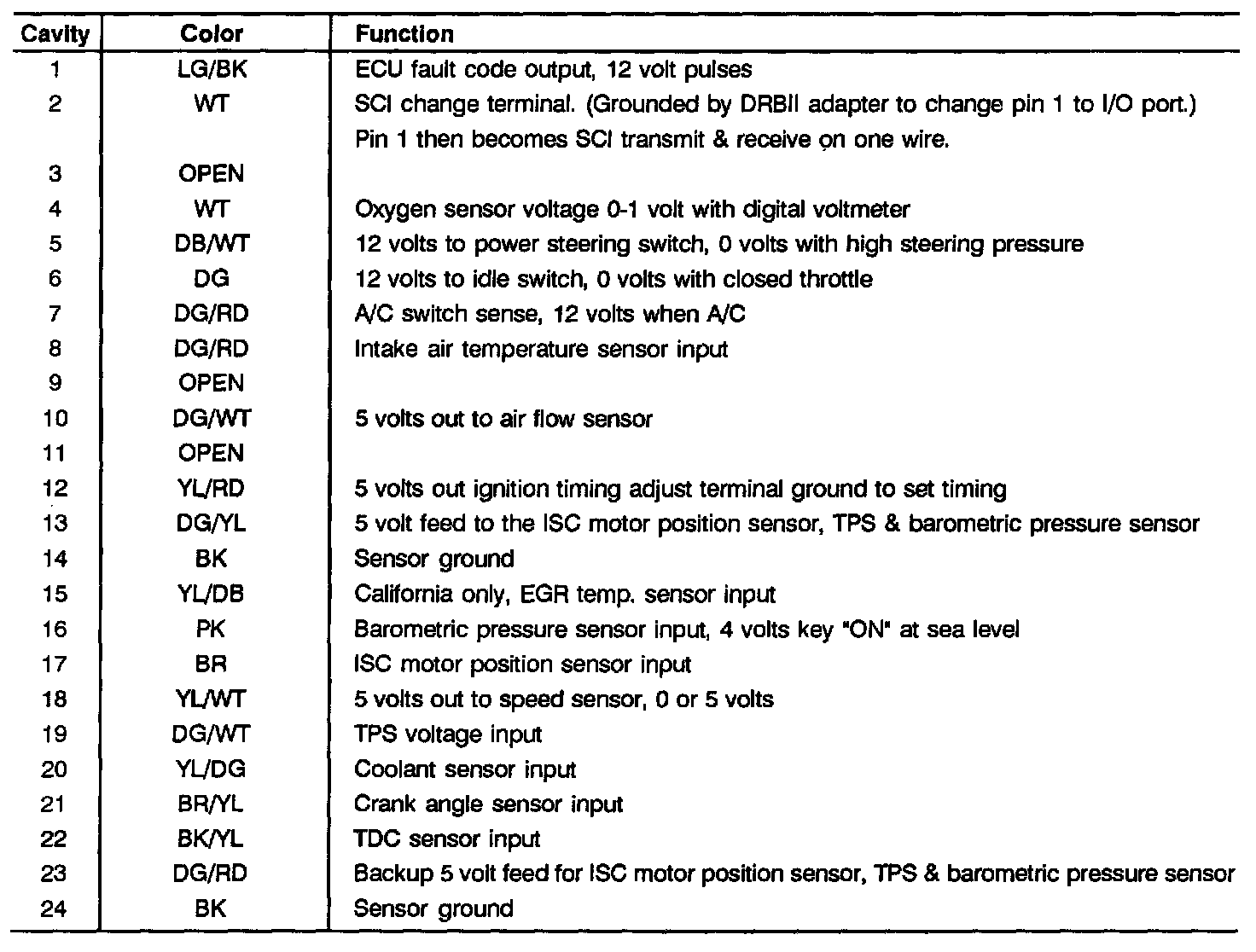

24-WAY CONNECTOR
