Test 4: Checking Traveler For Fuel Sensor Input

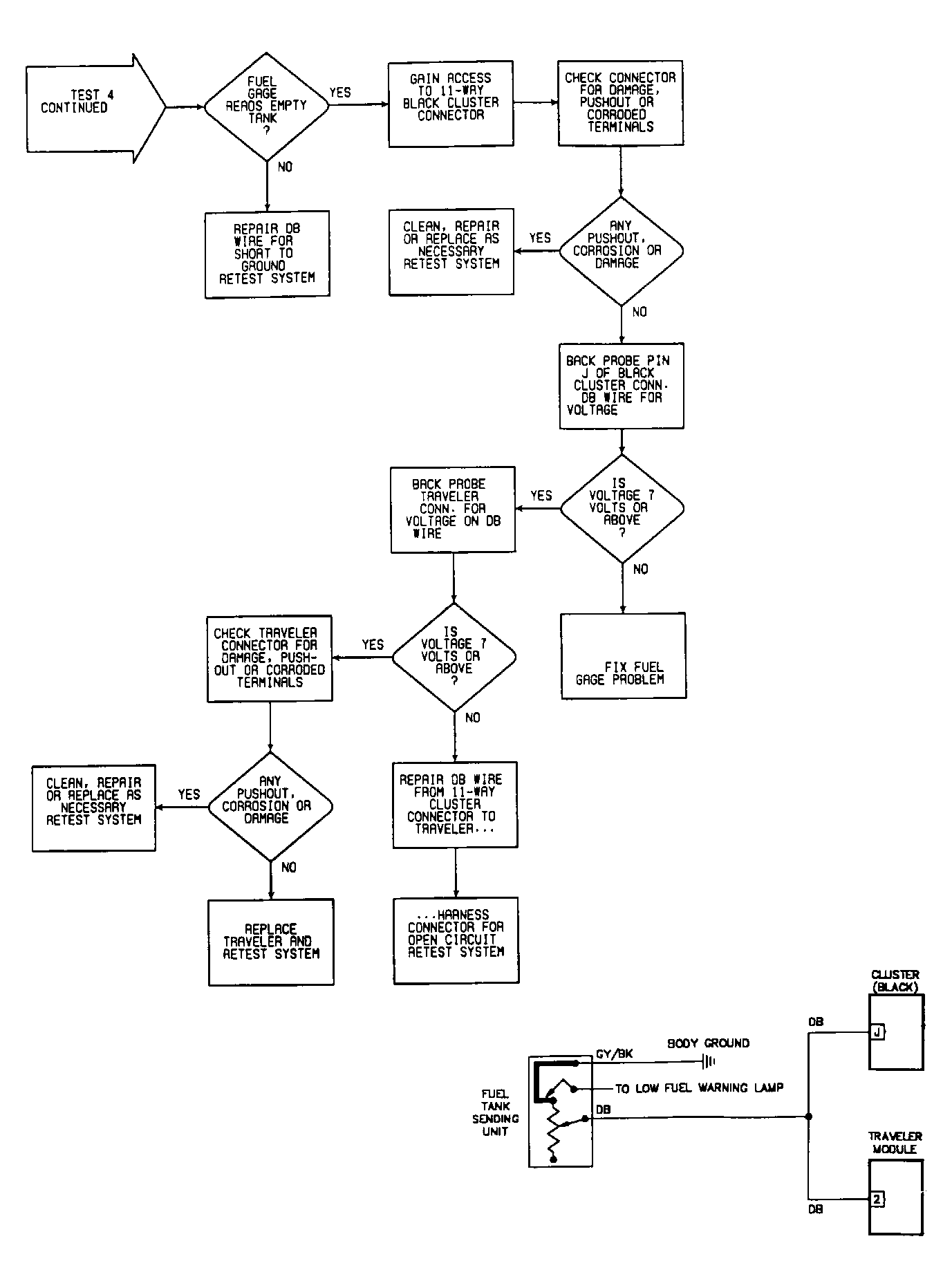

Fig 1: Test 4 Circuit Diagram

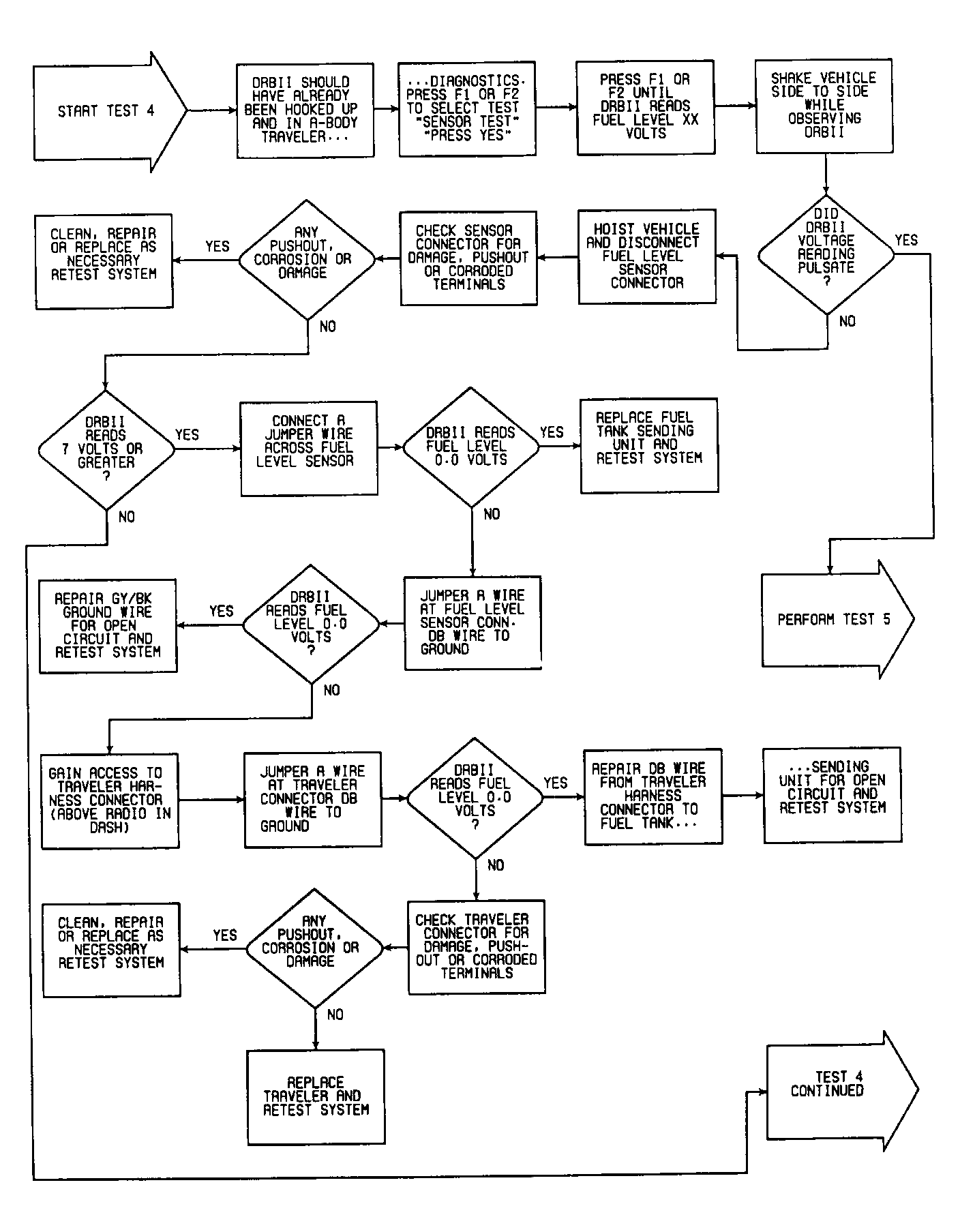

Fig 2: Test 4 Flow Chart (1 of 2)

Fig 3: Test 4 Flow Chart (2 of 2)
