Engine Controls - Tests W/O Codes - BCC
>>
Test 10: Repair CCD Bus System For Short To GRN
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test 10: Repair CCD Bus System For Short To GRN

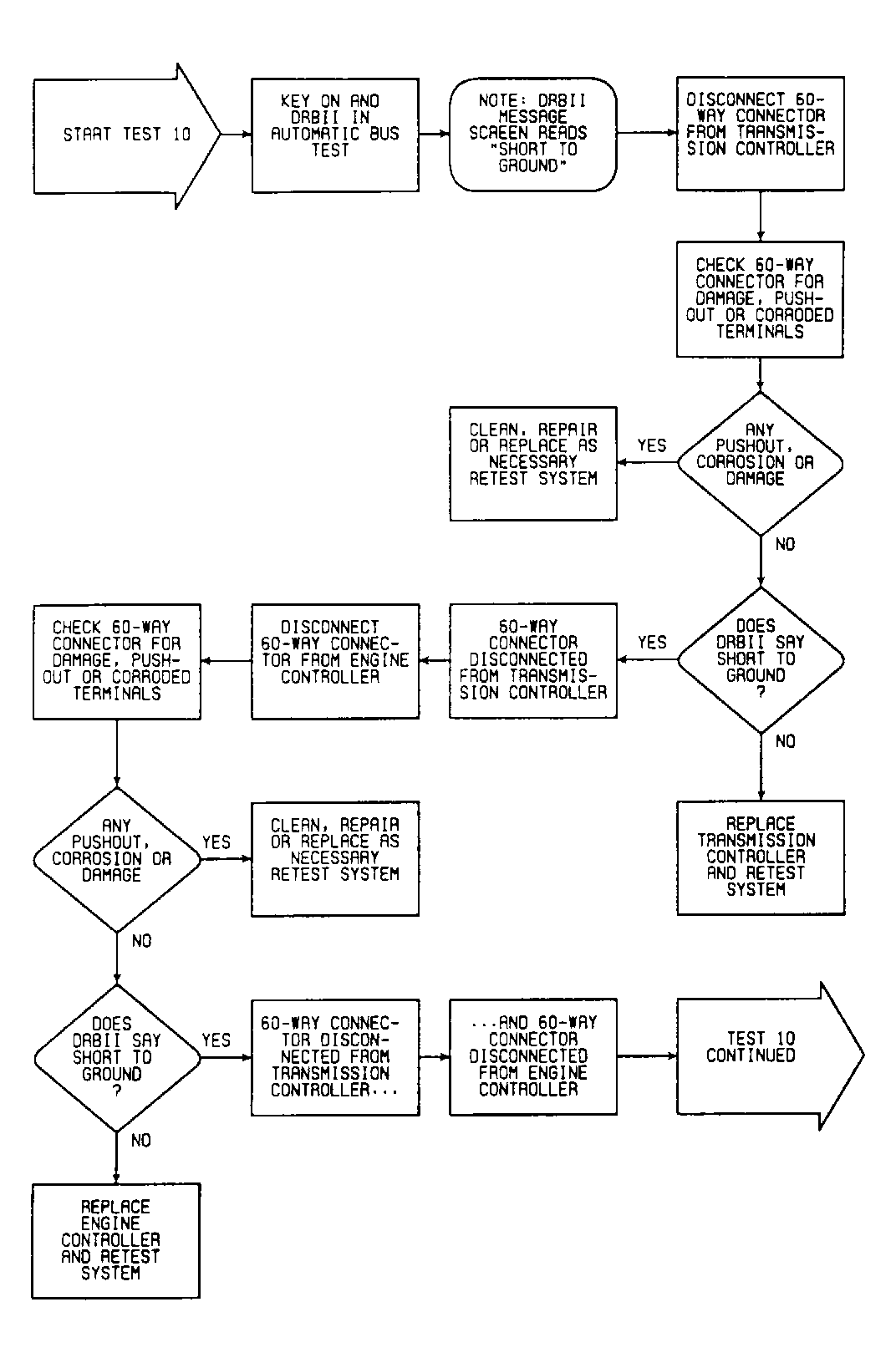

Fig 1: Test 10 Flow Chart (1 of 2)

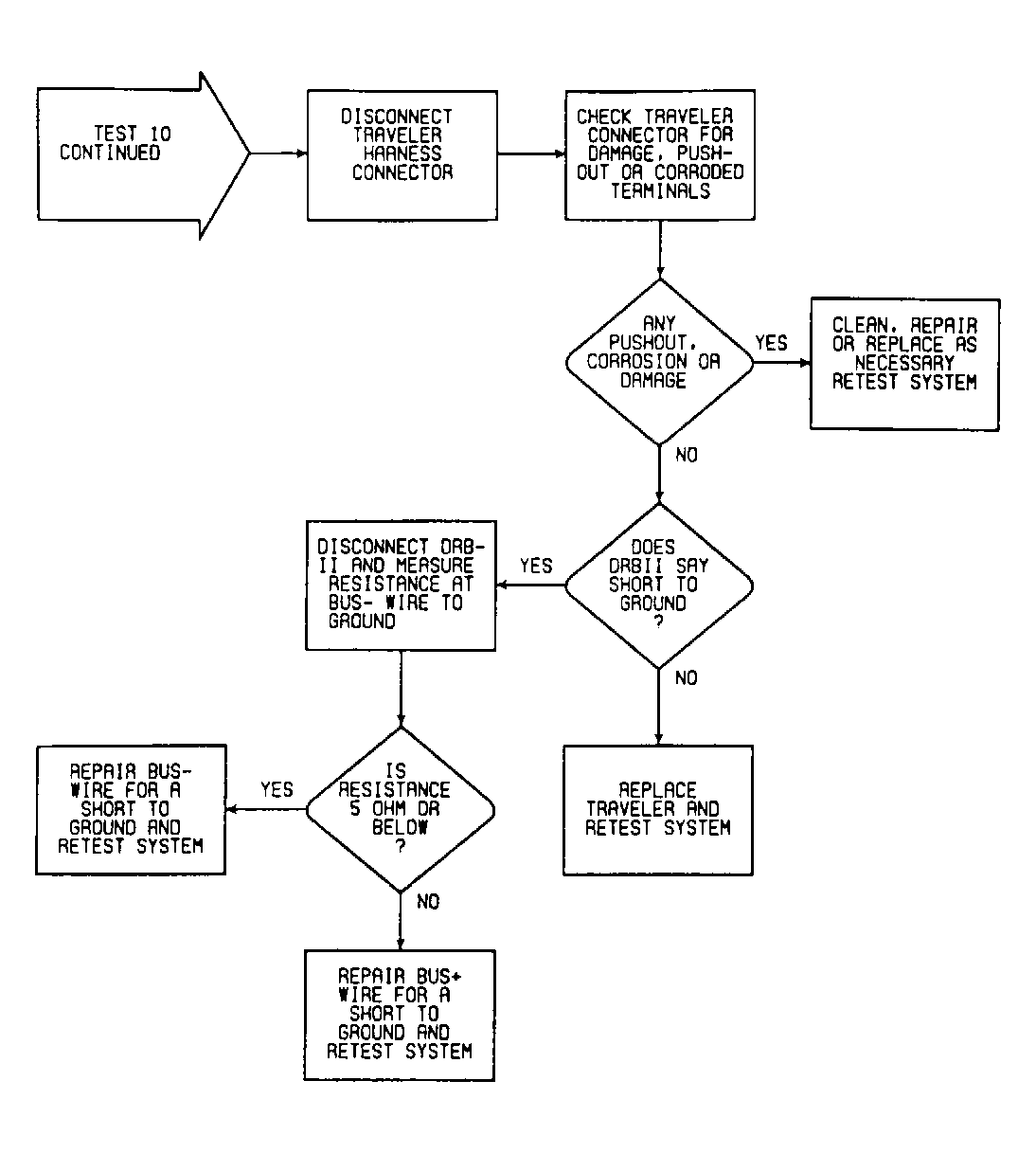

Fig 2: Test 10 Flow Chart (2 of 2)
