Schematic Of Computer, Input Sensors & Output Devices (SPFI)

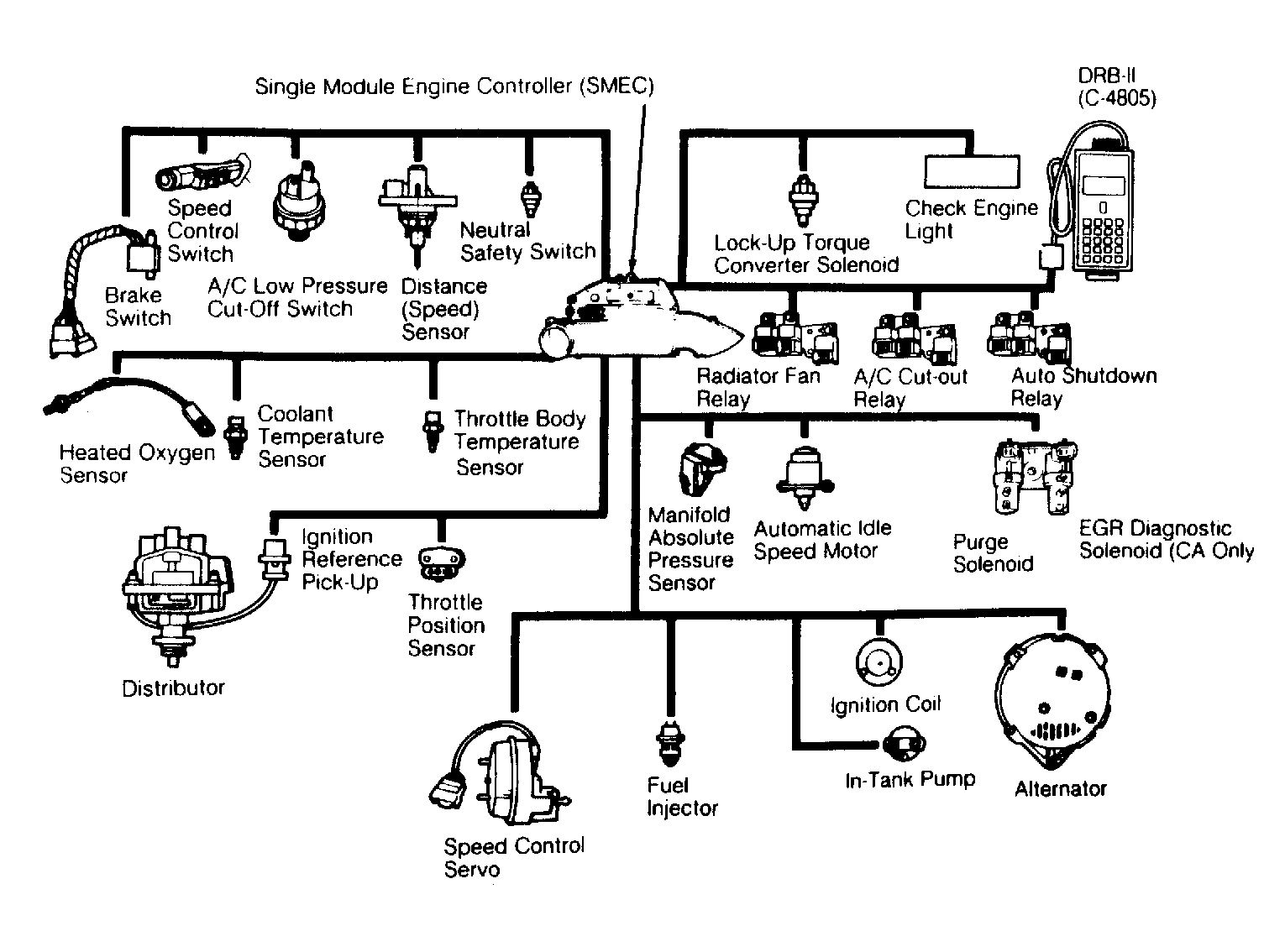

Fig 1: Schematic of Computer, Input Sensors & Output Devices (SPFI)
G107269Courtesy of CHRYSLER MOTORS.
