Audible Warning Device Control Module: Locations

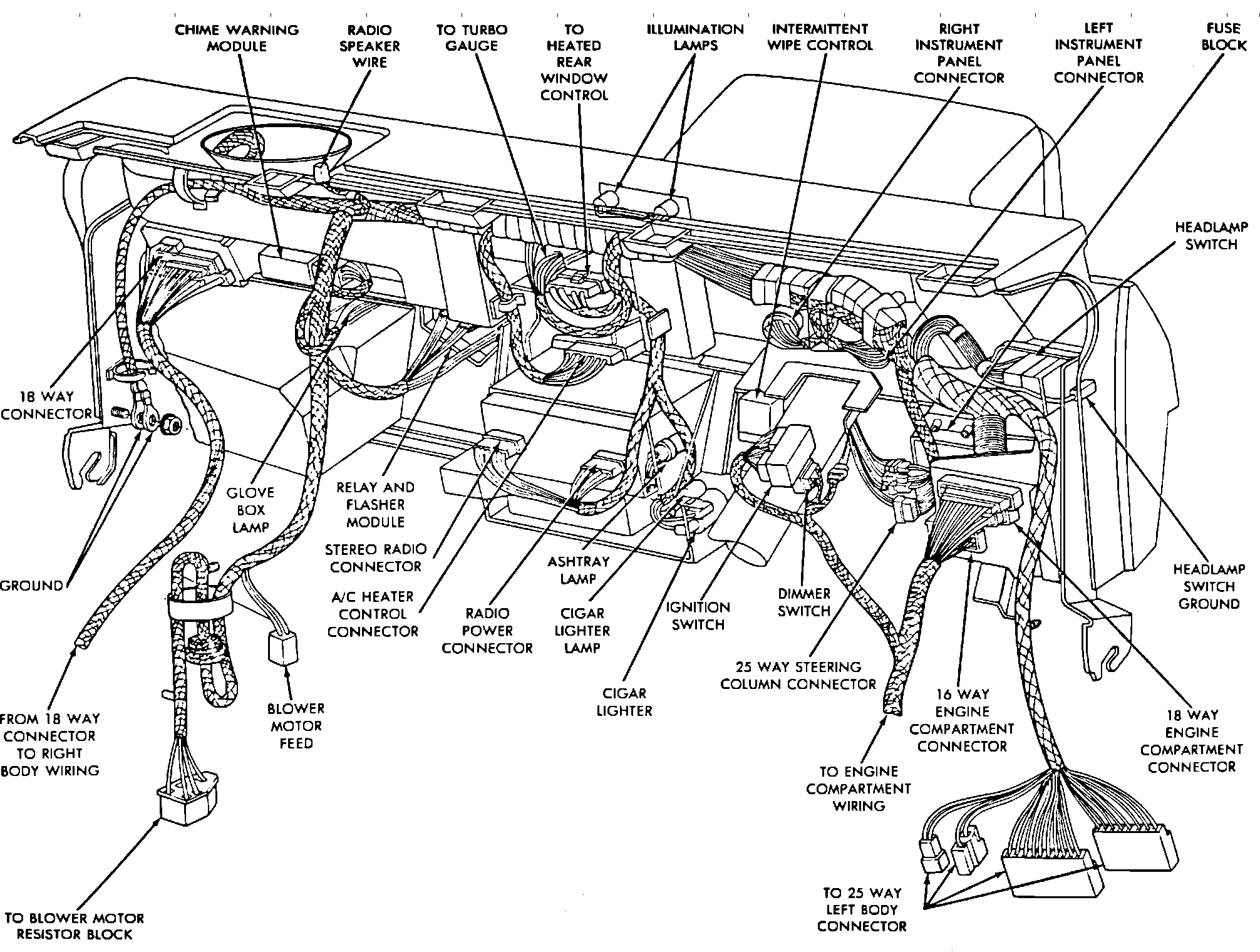

Instrument panel electrical components.:




Under RH Side Of I/P

Applicable to: 1987 Shadow & Sundance
