Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location

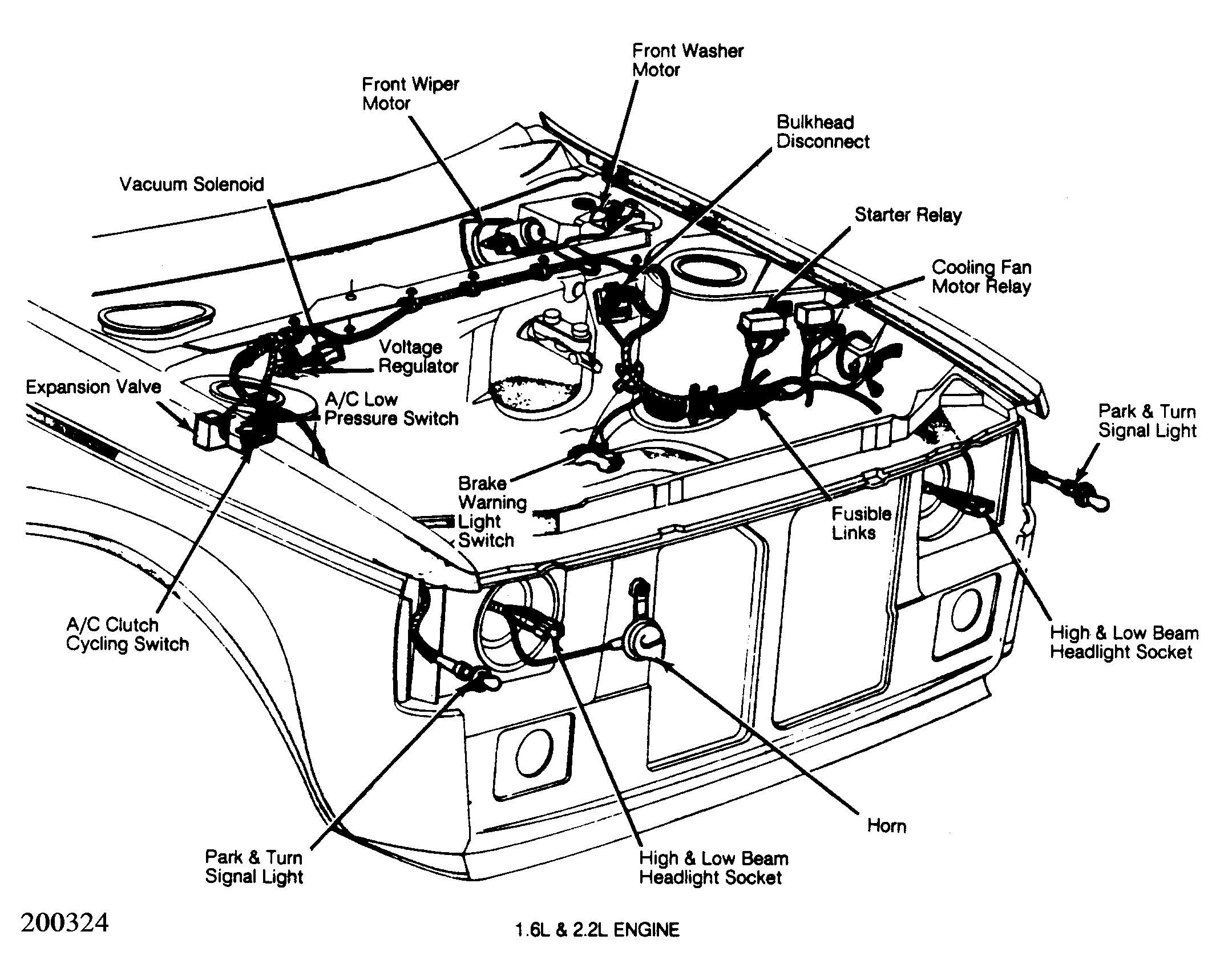

Bulkhead Disconnect At left rear corner of engine compartment. See Figure.
Heater Blower Motor Resistor On heater. See Figure.
Vacuum Transducer On spark control computer.
