Charging System: Testing and Inspection

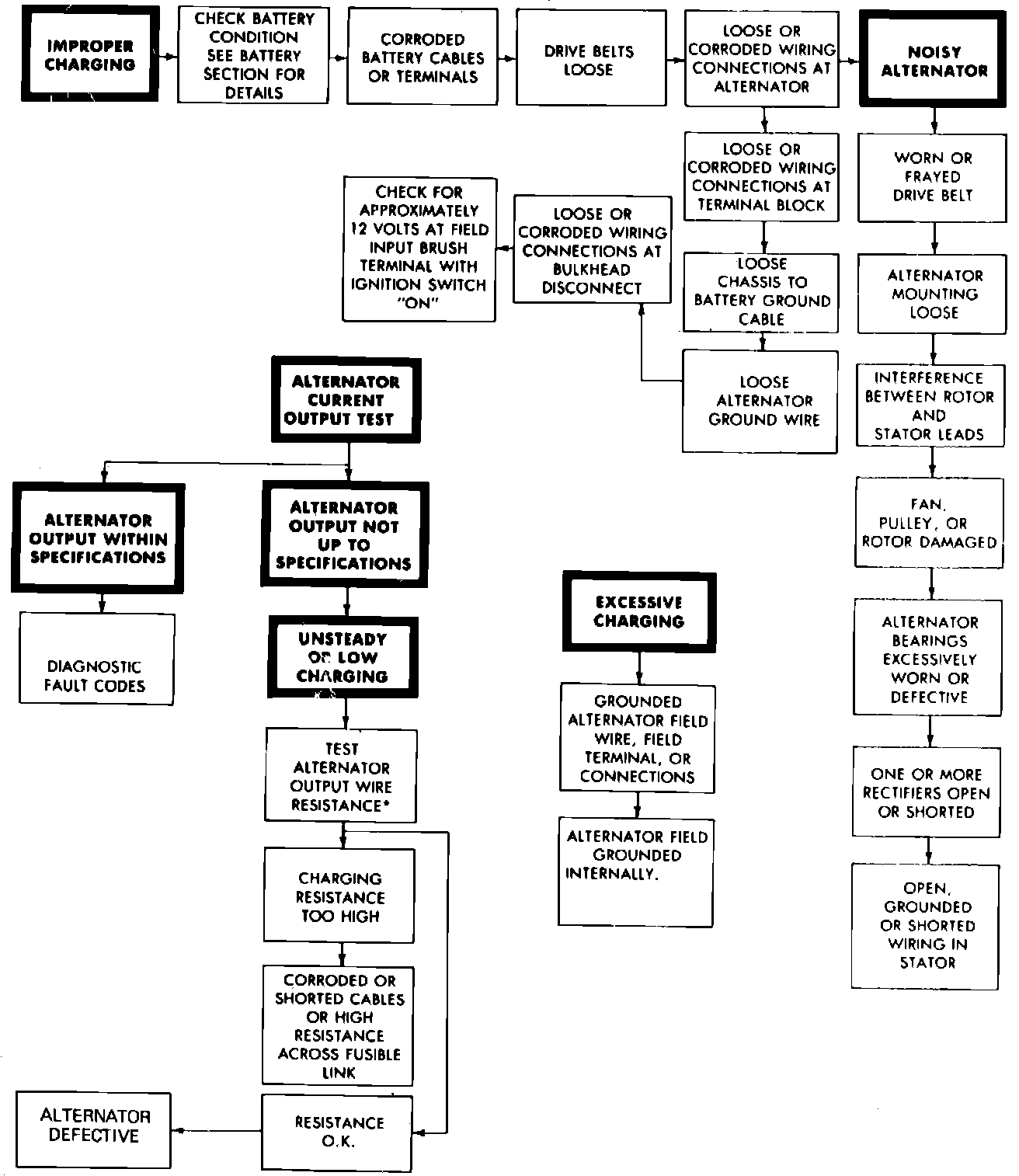

Fig. 3 Charging System Diagnosis chart. Bosch & Nippondenso alternators:
