Repair and Diagnosis: Transmission: Clutch: Clutches: Description

Clutch is a diaphragm spring, single disc type. Operation is controlled mechanically by a cable. Clutch release bearing is sealed and permanently lubricated.

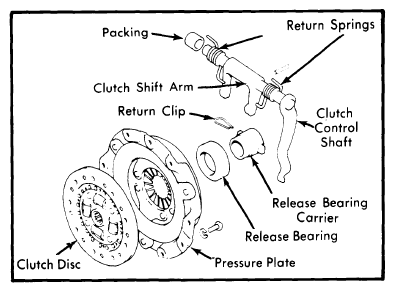

Fig 1: Exploded View of Clutch Assembly

Courtesy of CHRYSLER GROUP, LLC
