Wiring Diagrams

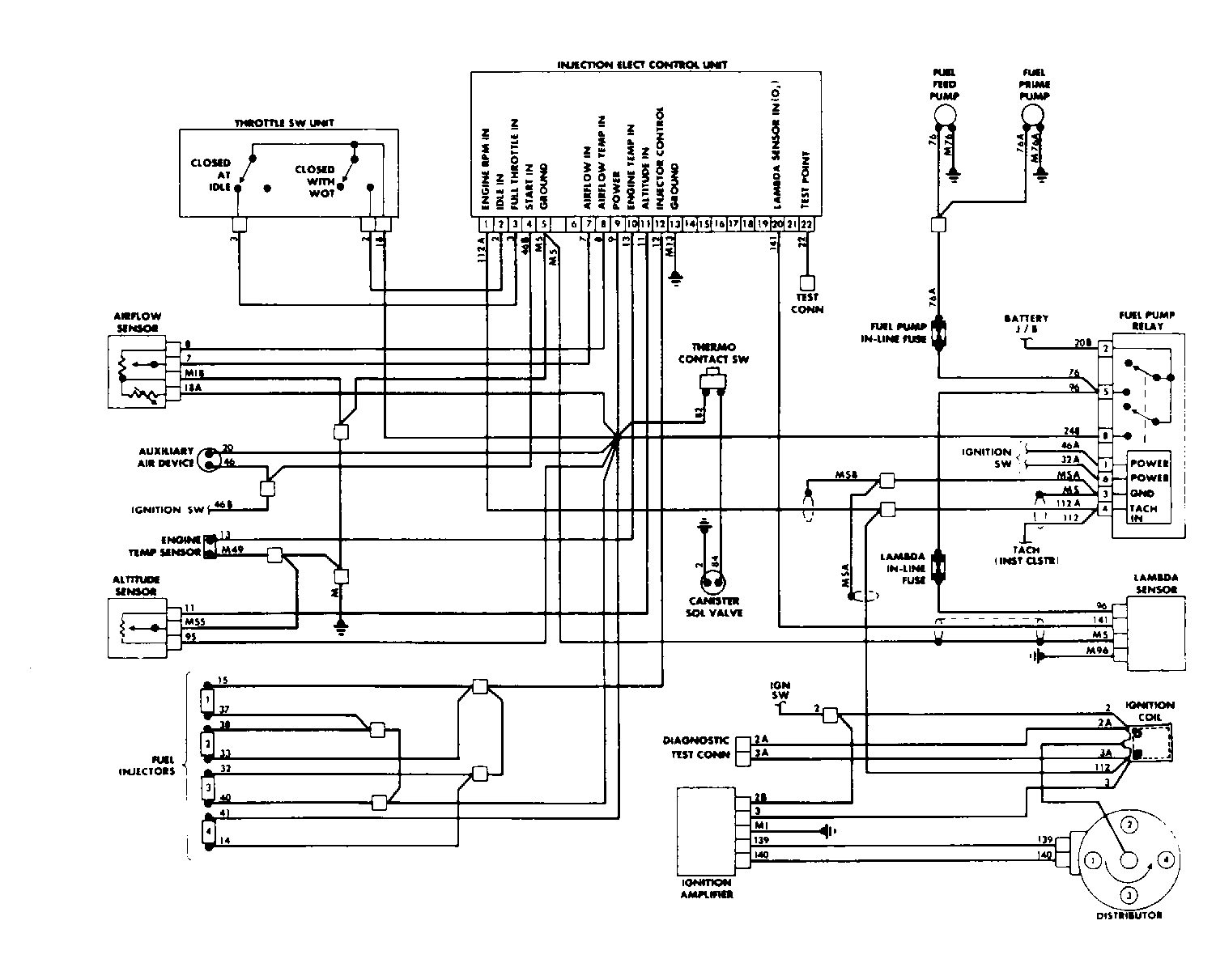

Fig 1: 505 with 2.2L Non-Turbo Engine Wiring Diagram

G62299

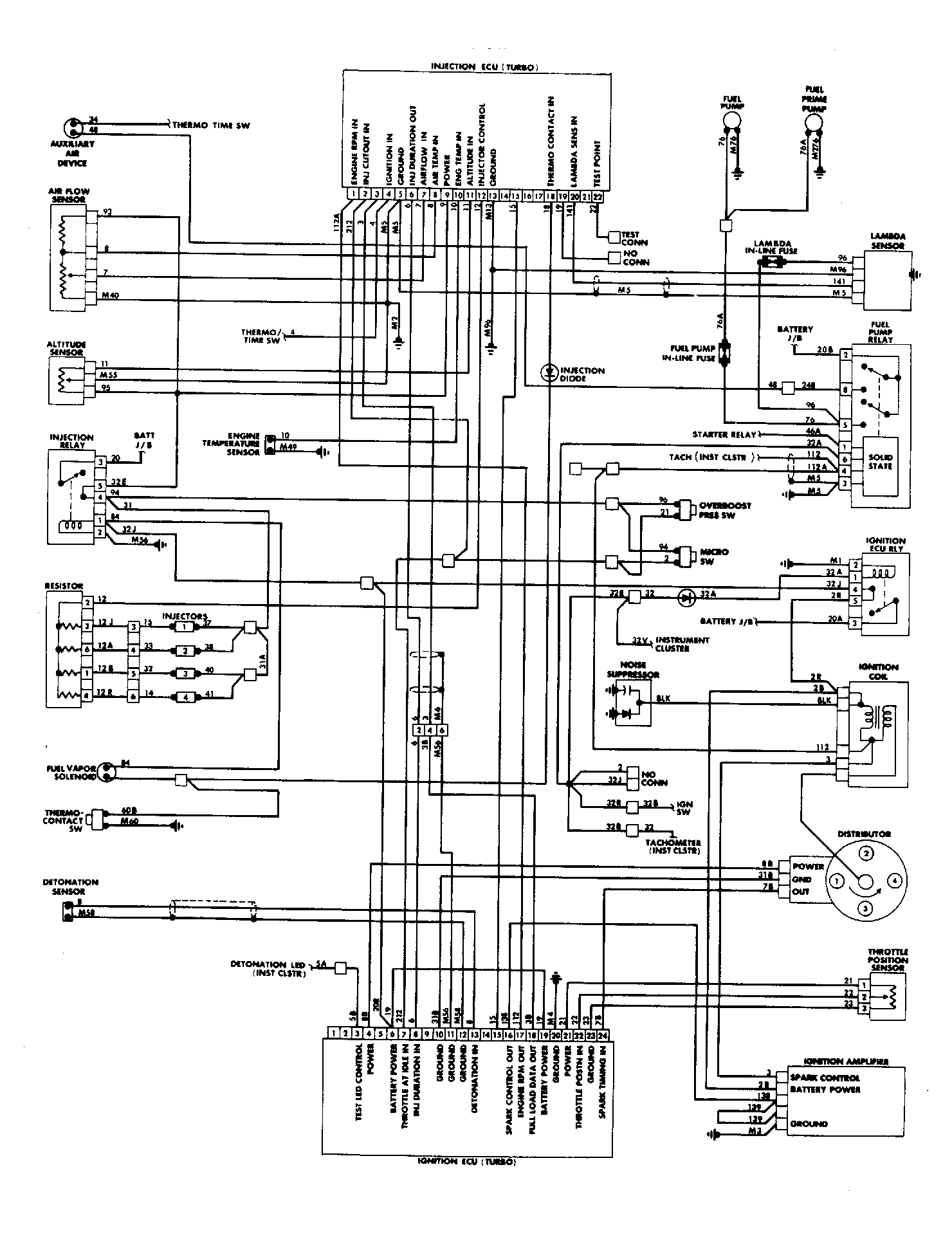

Fig 2: 505 with 2.2L Turbo Engine Wiring Diagram

G62300
