Exhaust Emissions System - Thermostatic Air Cleaners: Maintenance

The thermostatic air cleaner and hot idle compensator should be inspected every 12 months or 15, 000 miles for proper operation. Replace air cleaner element every 30, 000 miles.

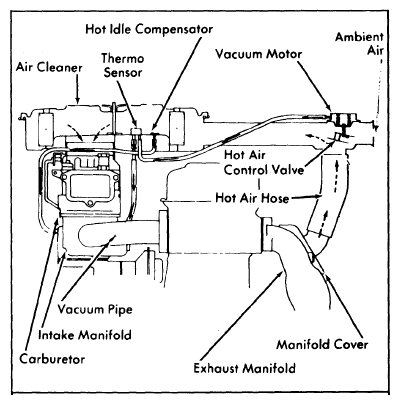

Fig 1: Thermostatic Air Cleaner

Courtesy of NOT AVAILABLE
