Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT  in Interior Trim.
  2. Disconnect the microphone electrical connector (3).
  3. Remove the 2 retaining screws to the microphone.
  4. Remove the microphone (2) from the overhead console.

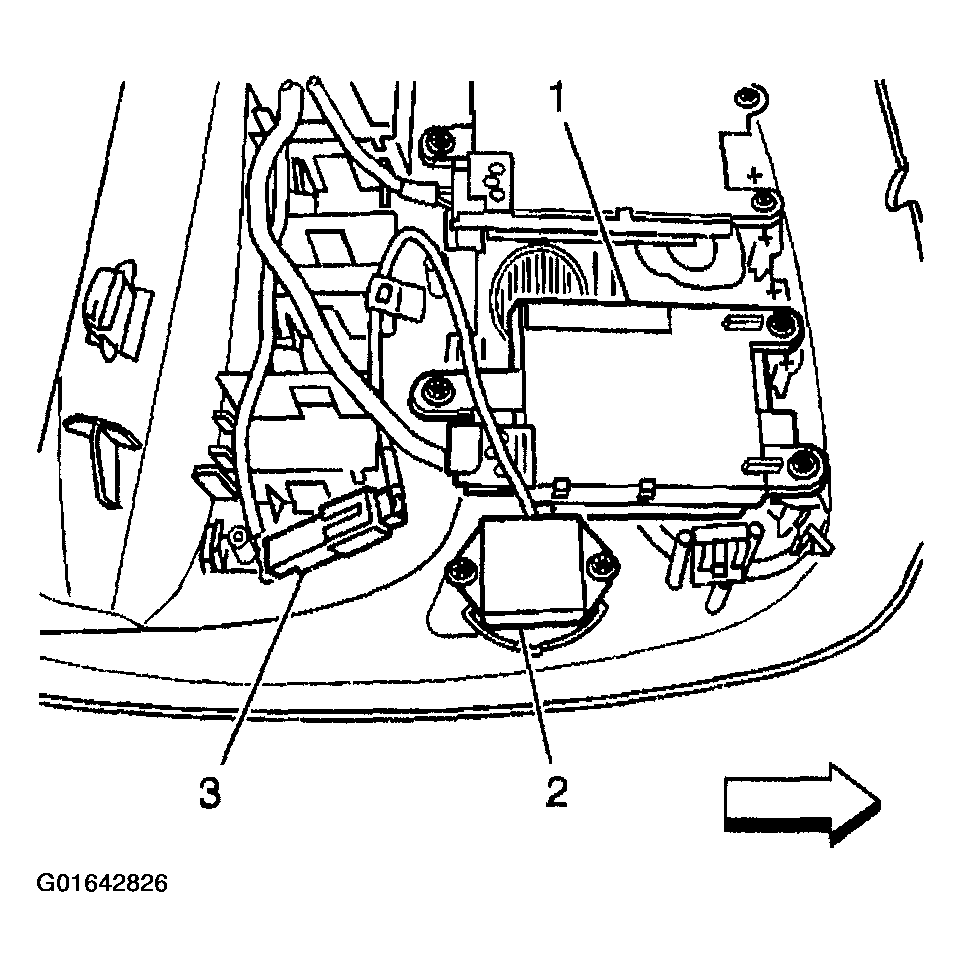

    Fig 1: Removing Microphone From Overhead Console
    G01642826Courtesy of GENERAL MOTORS CORP.
