Removal Replacement

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.
  2. Drill out the 3 front door speaker rivets.
  3. Disconnect the speaker electrical connector.
  4. Remove the front door speaker from the vehicle.

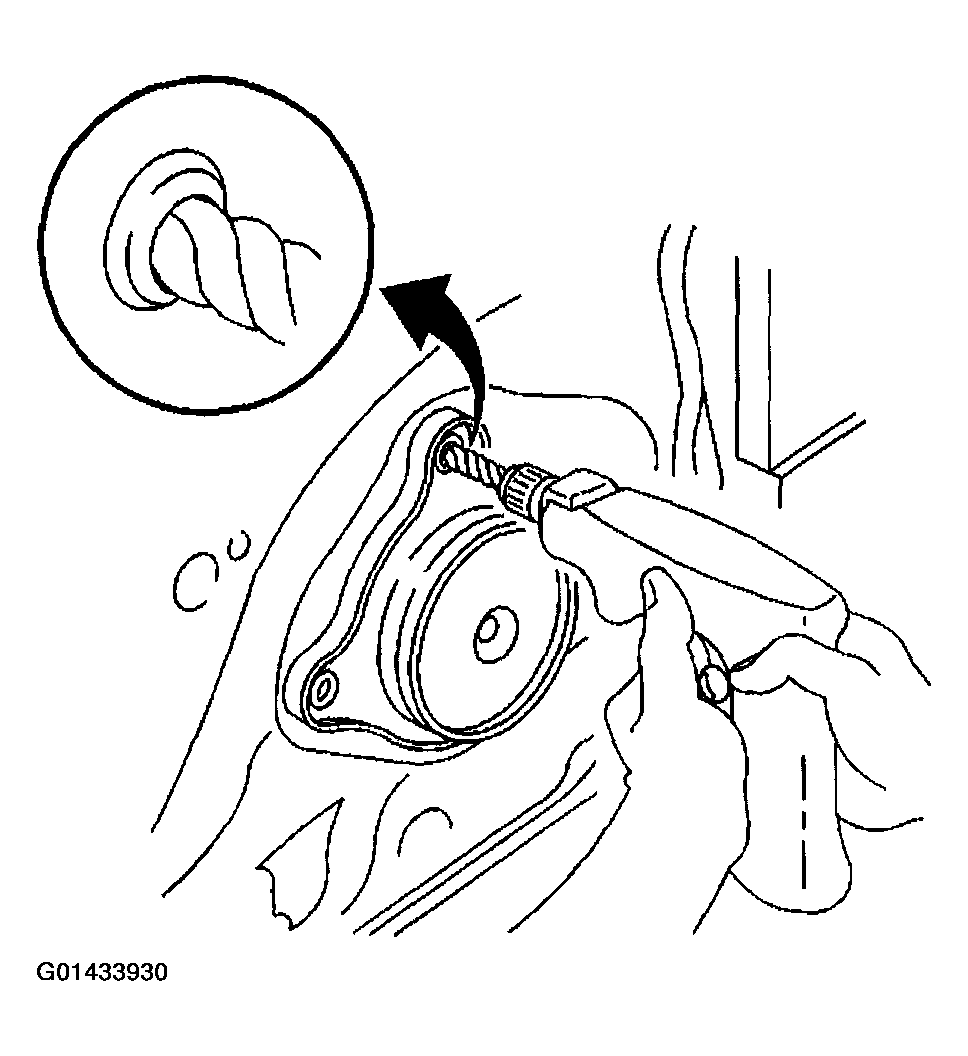

    Fig 1: Removing Front Door Lower Speaker From Vehicle
    G01433930Courtesy of GENERAL MOTORS CORP.
