Removal Procedure

  1. Remove the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (4.2L)   or POWER STEERING PUMP REPLACEMENT (5.3L)   .
  2. Remove the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT  in Engine Mechanical - 4.2L.
  3. Remove the power steering pump bracket mounting bolts.
  4. Remove the power steering pump bracket.

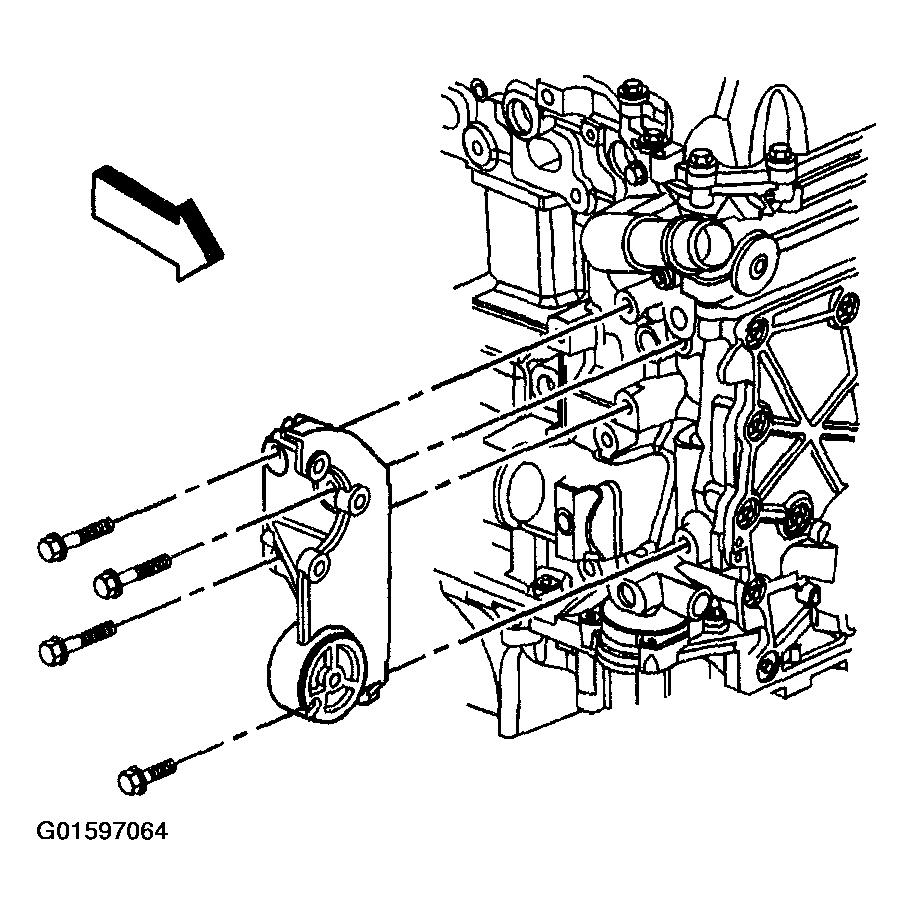

    Fig 1: Removing Power Steering Pump Bracket Mounting Bolts
    G01597064Courtesy of GENERAL MOTORS CORP.
