Fluid Capacity Specifications

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
FLUID CAPACITY SPECIFICATIONS

Application Specification
Metric English
Fluid Recommended ATF Type T-IV
Dry Fill 7.3 liters 7.75 qts
Drain and Refill 3.1 liters 3.25 qts

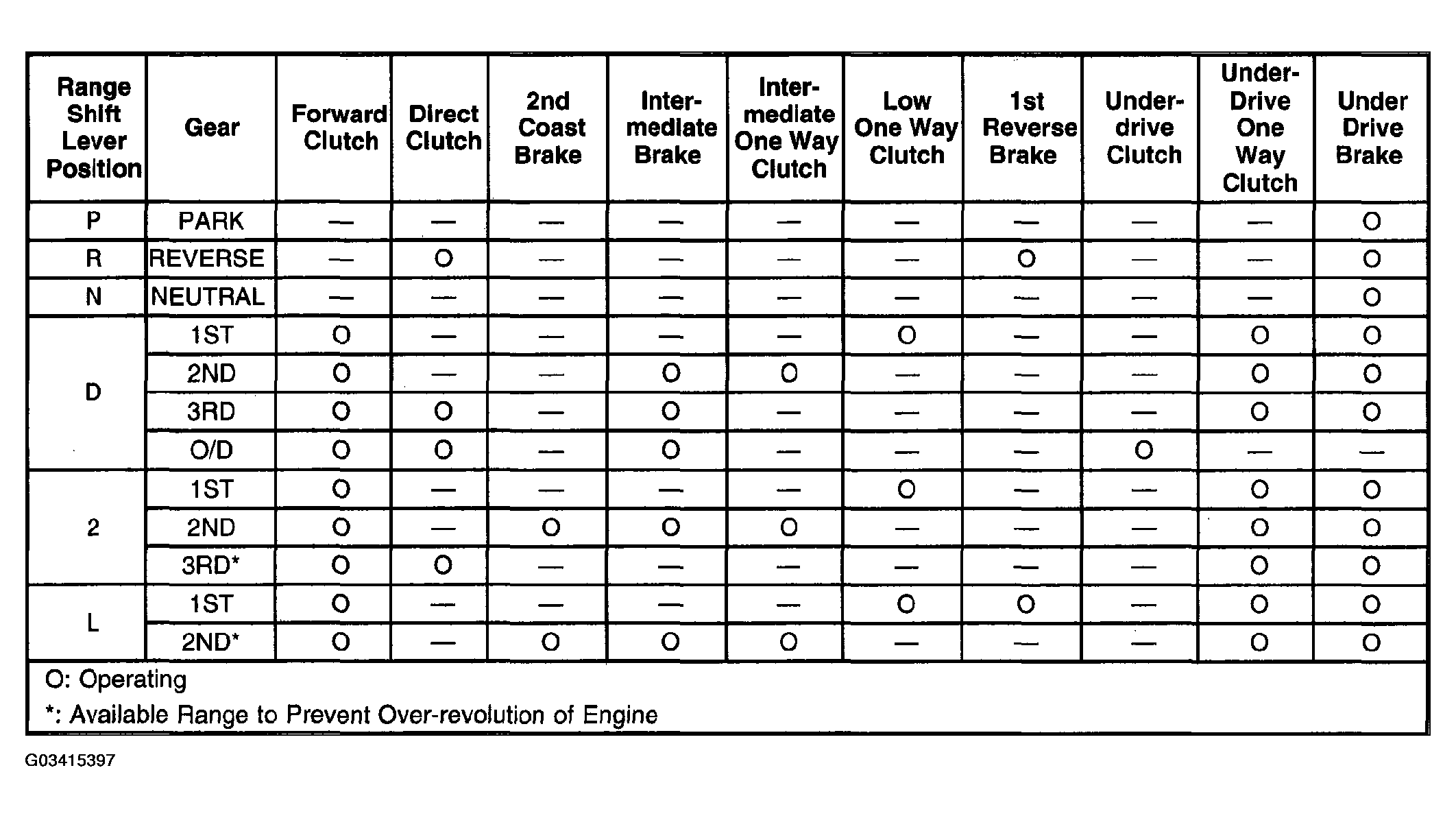

Fig 1: Range Reference Chart
G03415397Courtesy of GENERAL MOTORS CORP.
