Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the cruise control release switch electrical connector (4).
  2. Loosen the cruise control release switch locknut (1).
  3. Remove the cruise control release switch (3) with the locknut from the clutch pedal bracket (2) by unscrewing it in the counterclockwise direction.

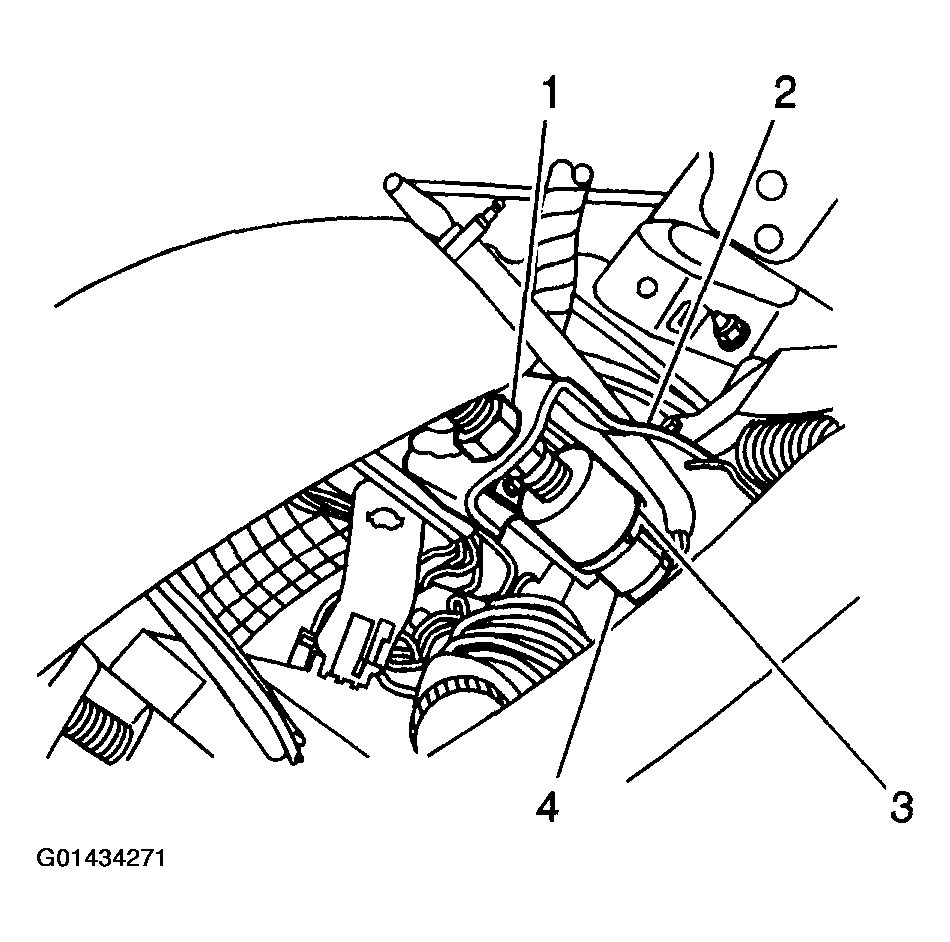

    Fig 1: Removing Cruise Control Release Switch With Locknut From Clutch Pedal Bracket
    G01434271Courtesy of GENERAL MOTORS CORP.
