Engine Block - Front View

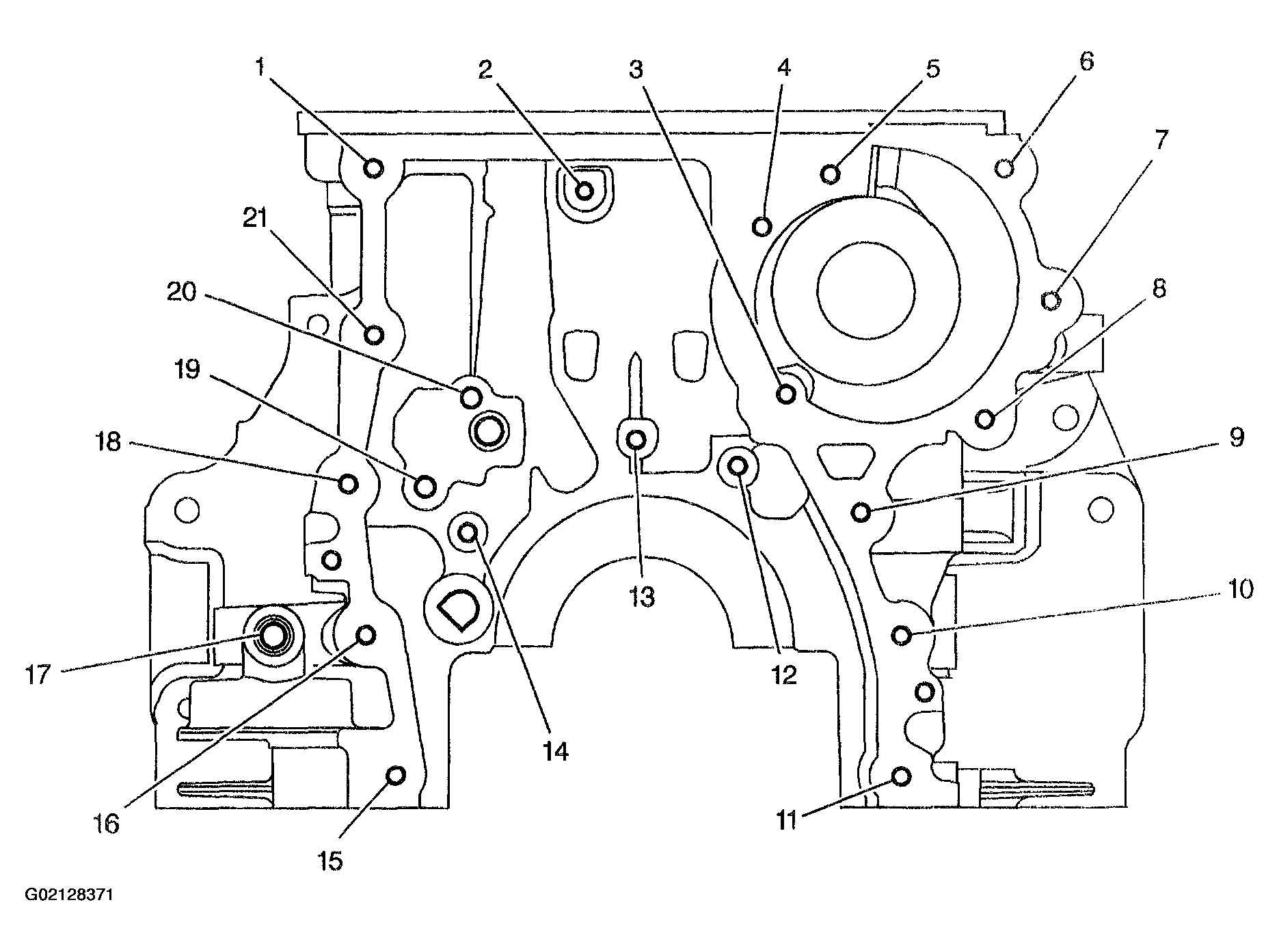

Fig 1: Thread Repair Specifications - Engine Block - Front View
G02128371Courtesy of GENERAL MOTORS CORP.

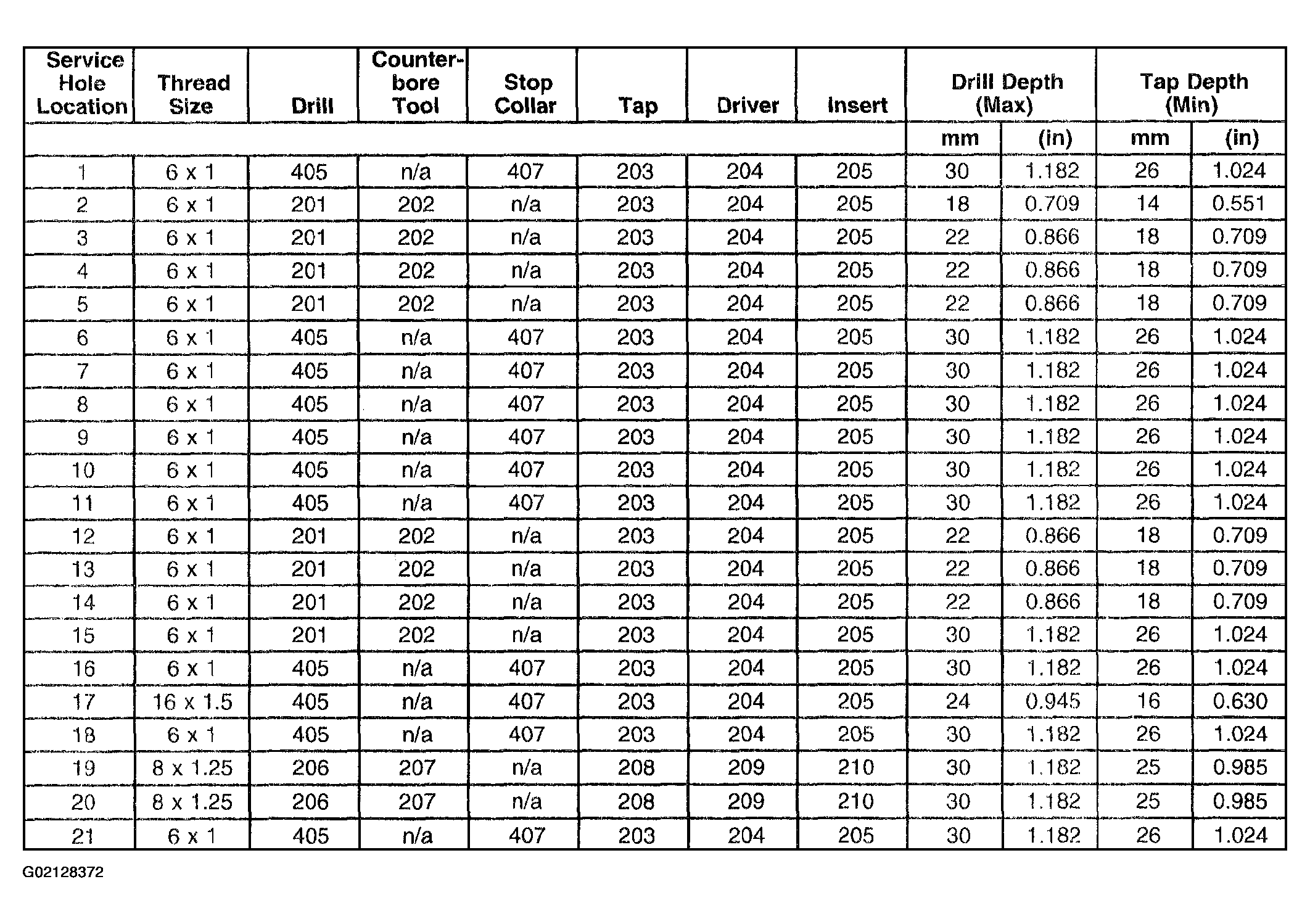

Fig 2: Thread Repair Specifications - Engine Block - Front View Callouts
G02128372Courtesy of GENERAL MOTORS CORP.
