Cylinder Head - End View (Rear)

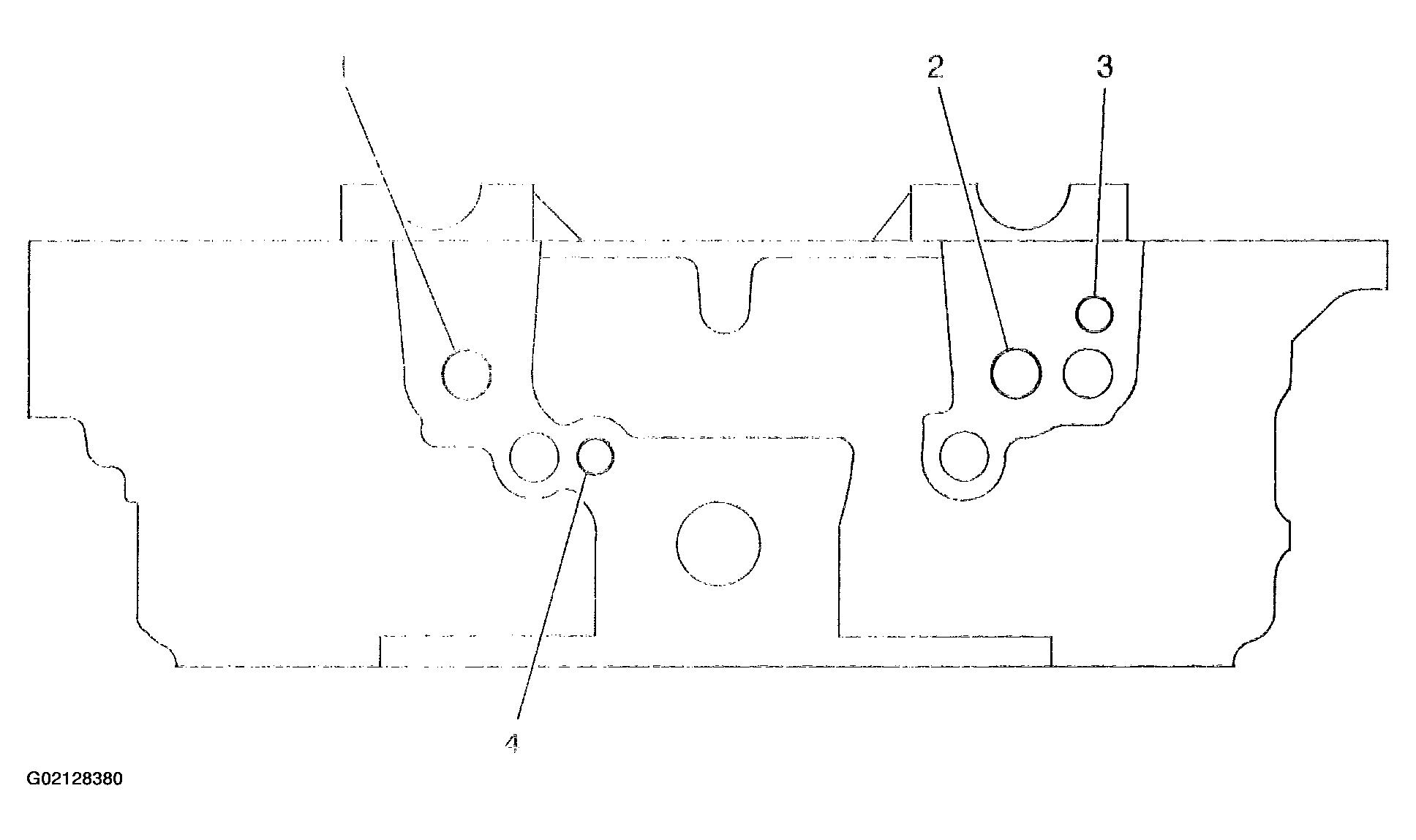

Fig 1: Thread Repair Specifications - Cylinder Head - End View (Rear)
G02128380Courtesy of GENERAL MOTORS CORP.

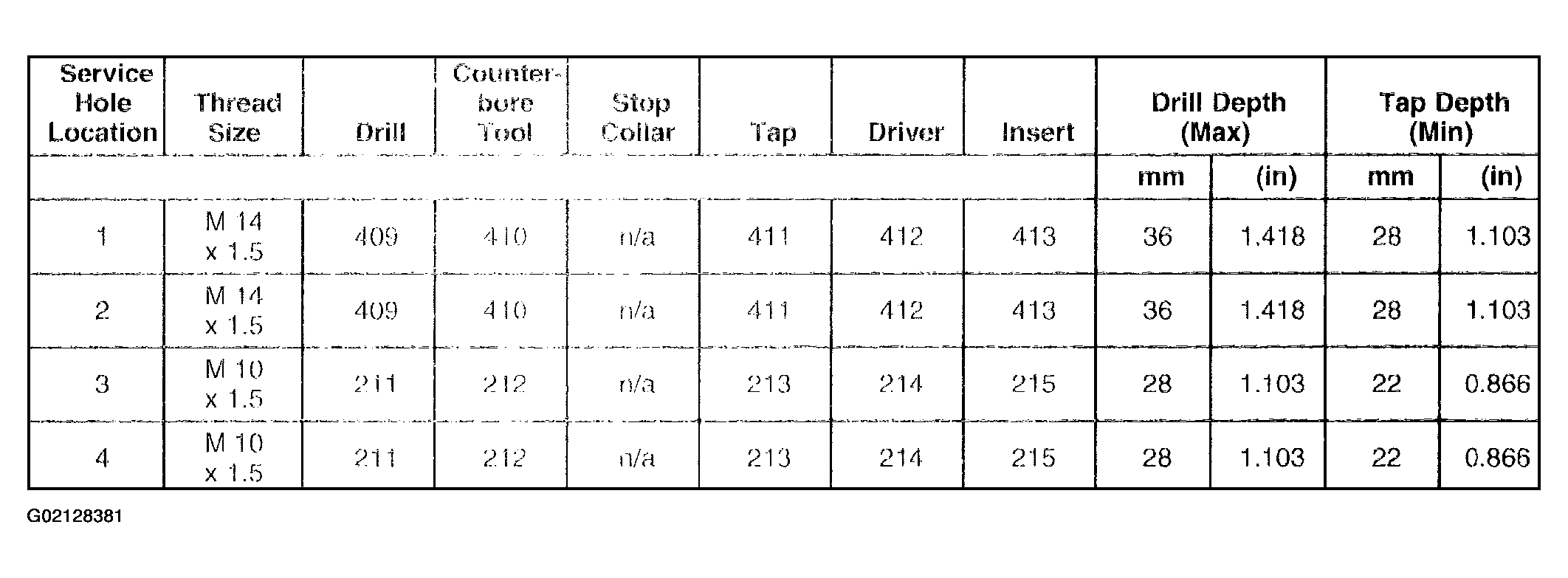

Fig 2: Thread Repair Specifications - Cylinder Head - End View Callouts (Rear)
G02128381Courtesy of GENERAL MOTORS CORP.
