Installation Procedure

  1. Place the catalytic converter heat shield onto the floor panel studs.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Secure the heat shield with the 5 bolts.

    Tighten

    Tighten the catalytic converter heat shield bolts to 7 N.m (62 lb in).

  3. Lower the vehicle.

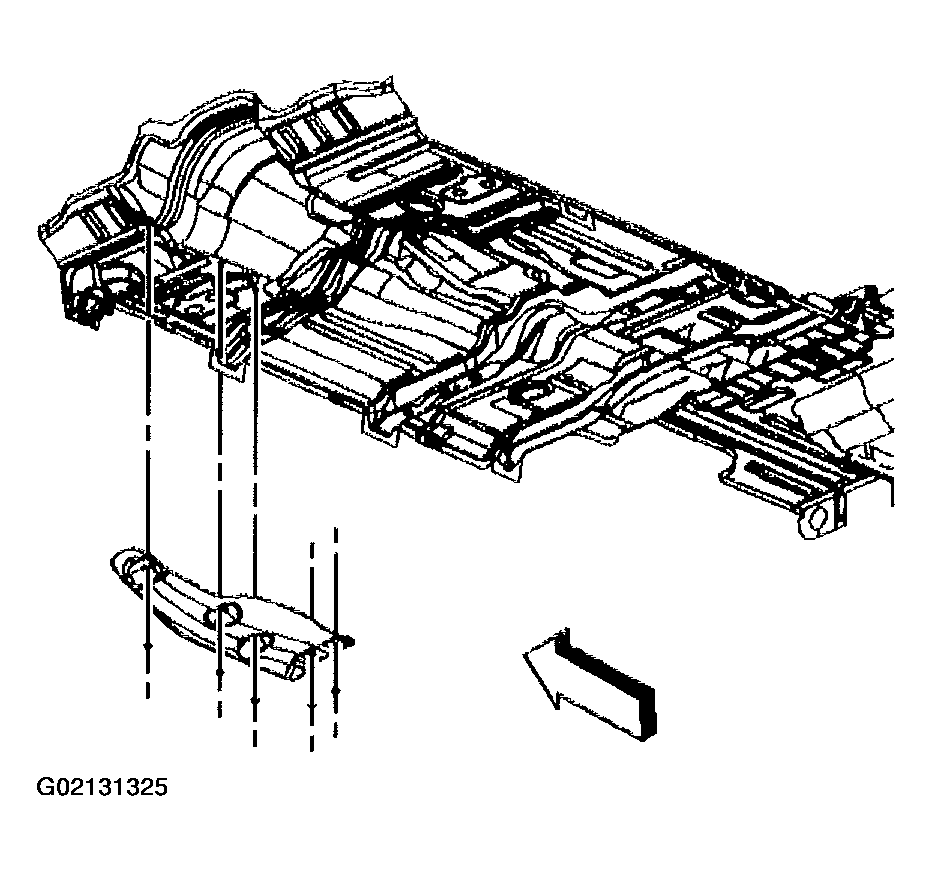

    Fig 1: Placing Catalytic Converter Heat Shield Onto Floor Panel Studs
    G02131325Courtesy of GENERAL MOTORS CORP.
