Installation Procedure

  1. Install the horn assembly to the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt that retains the horn assembly to the body.

    Tighten

    Tighten the bolt to 10 N.m (88 lb in).

  3. Connect the horn assembly electrical connector.

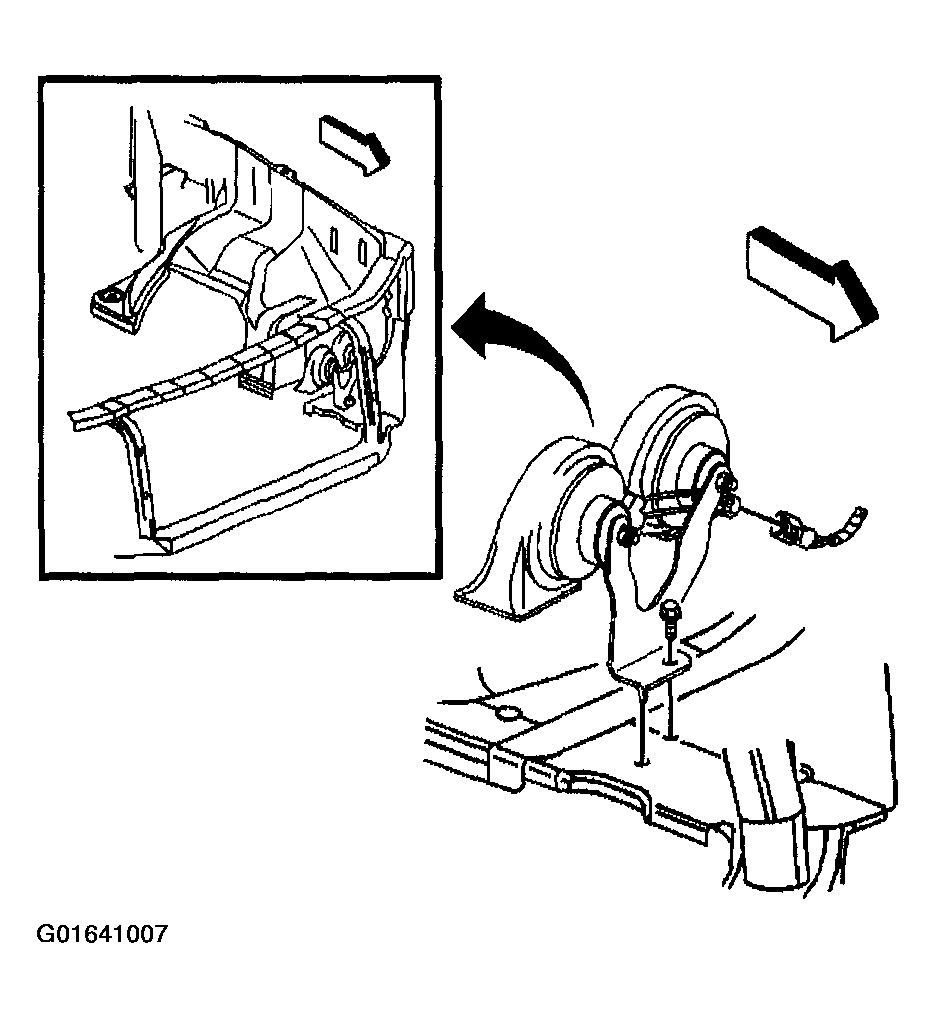

    Fig 1: Installing Horn Assembly To Body
    G01641007Courtesy of GENERAL MOTORS CORP.
  4. Install the battery ventilation hose to the battery carrier.
  5. Install the 2 left bolts (2) retaining the headlamp housing. Refer to HEADLAMP HOUSING PANEL REPLACEMENT (OLDSMOBILE)  or HEADLAMP HOUSING PANEL REPLACEMENT (CHEVROLET, GMC)  in Body Front End.

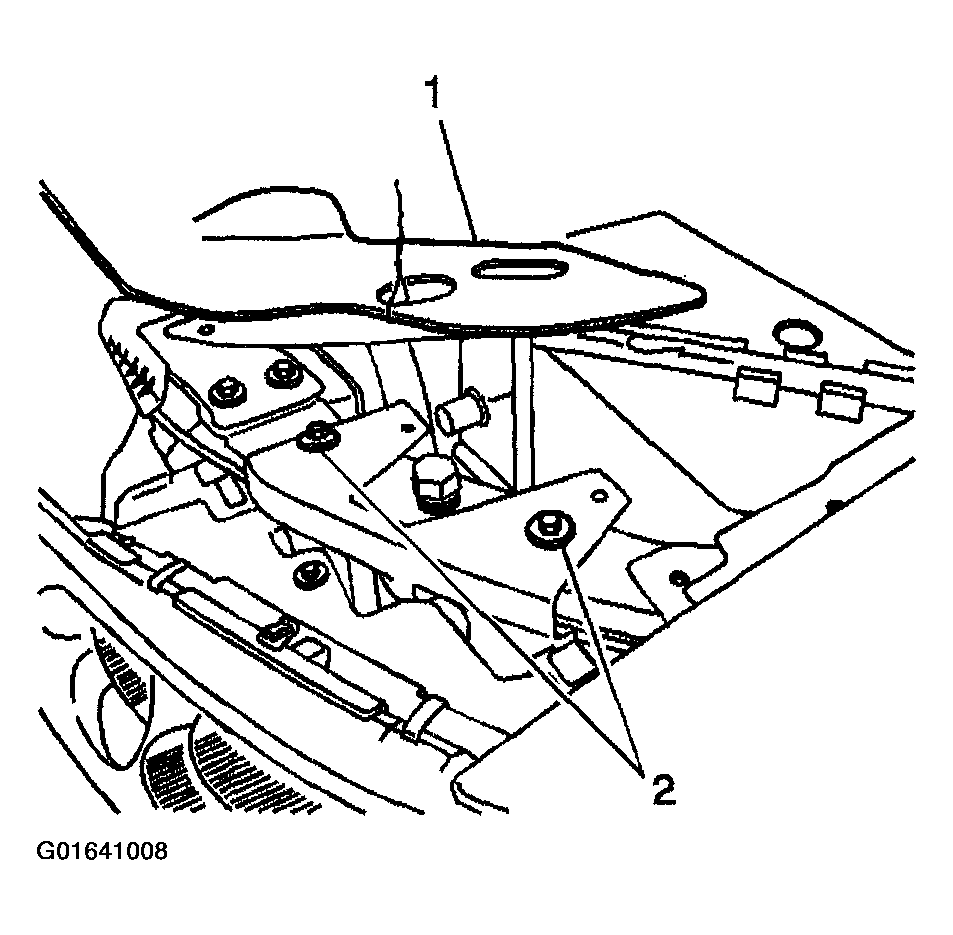

    Fig 2: Installing Battery Ventilation Hose To Battery Carrier
    G01641008Courtesy of GENERAL MOTORS CORP.
