Inside Rearview Mirror

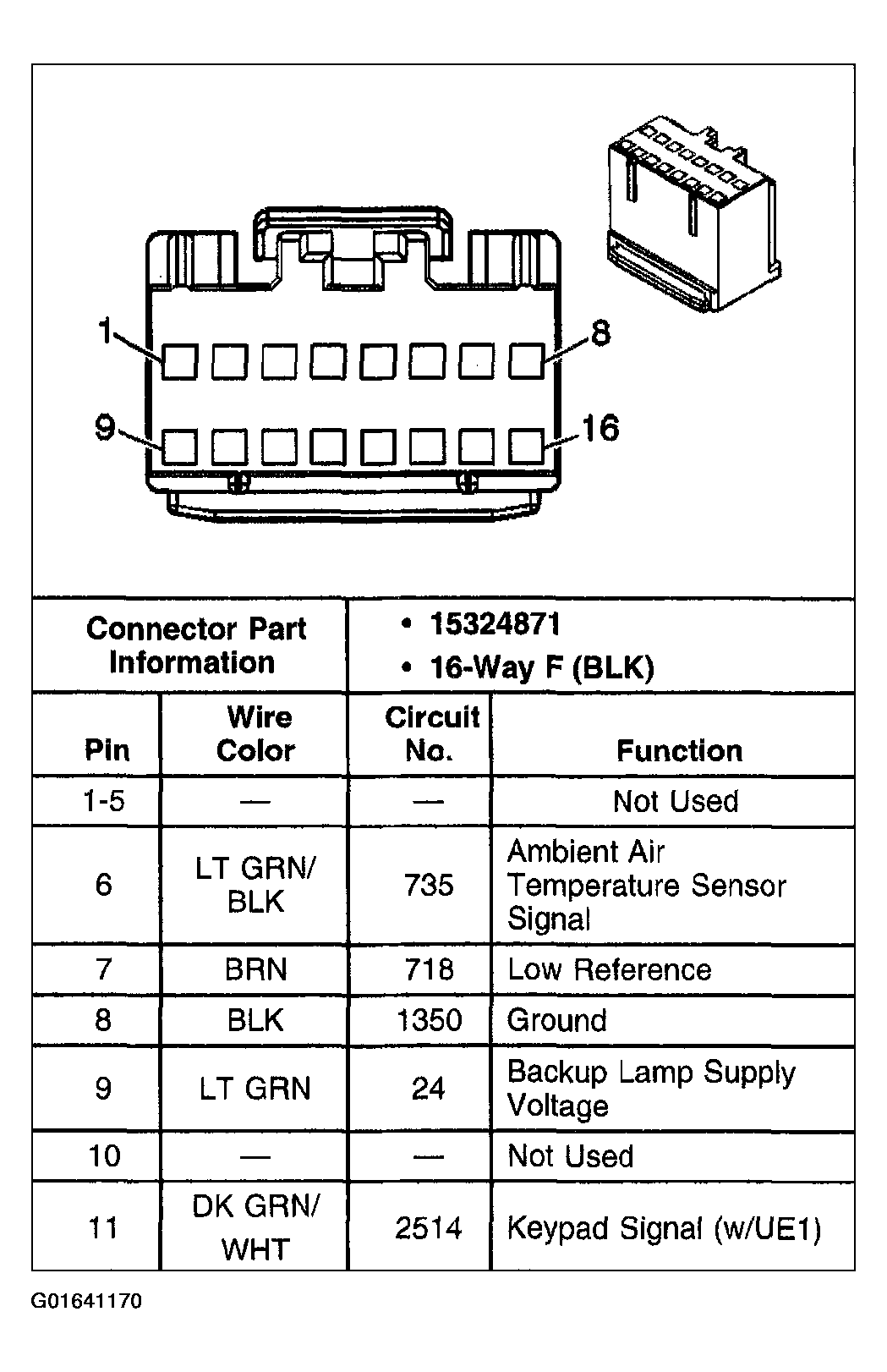

Fig 1: Identifying Inside Rearview Mirror Connector (1 Of 2) End View
G01641170Courtesy of GENERAL MOTORS CORP.

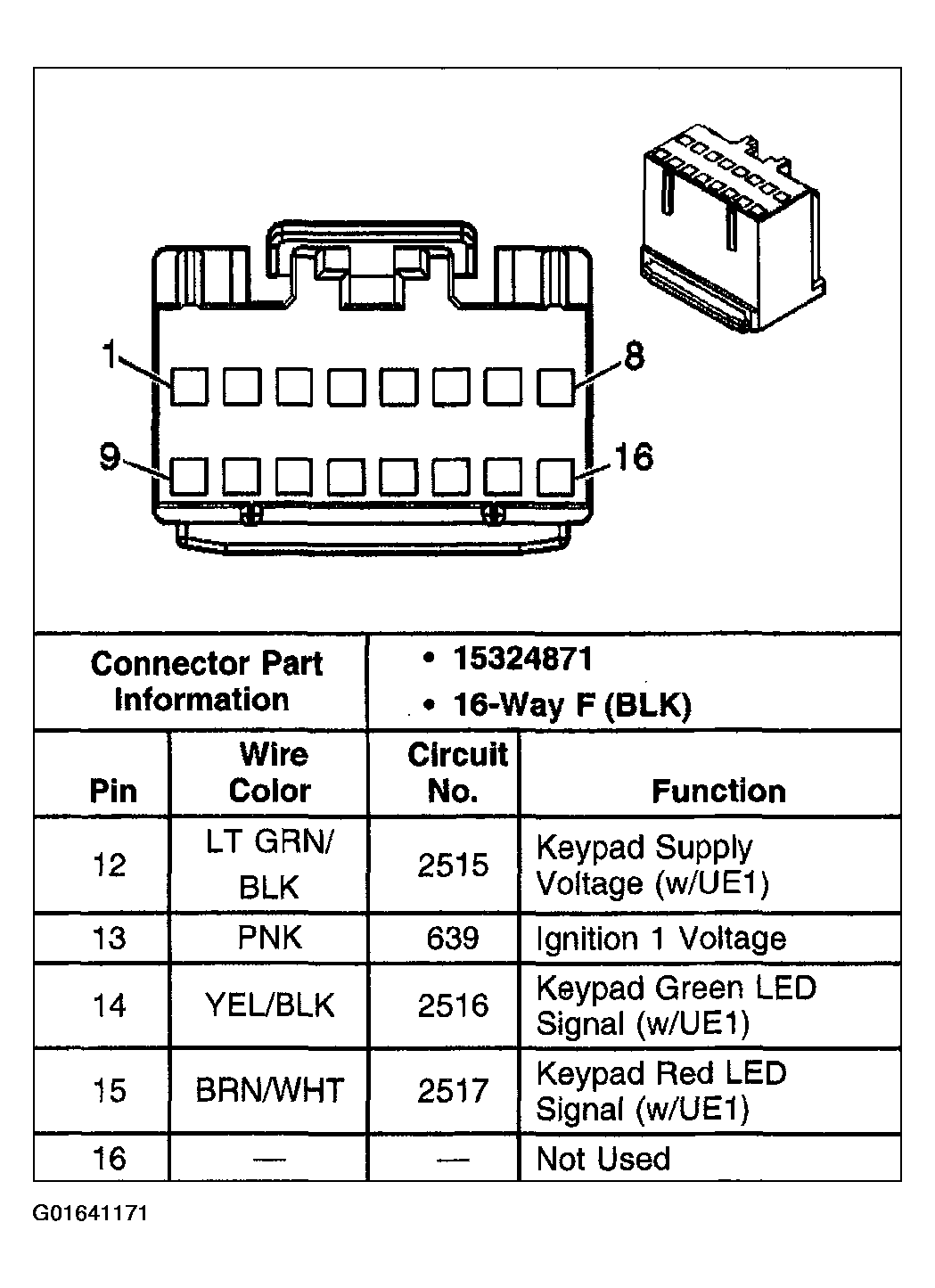

Fig 2: Identifying Inside Rearview Mirror Connector (2 Of 2) End View
G01641171Courtesy of GENERAL MOTORS CORP.
