Installation Procedure

  1. Connect the electrical connector to the lumbar switch.

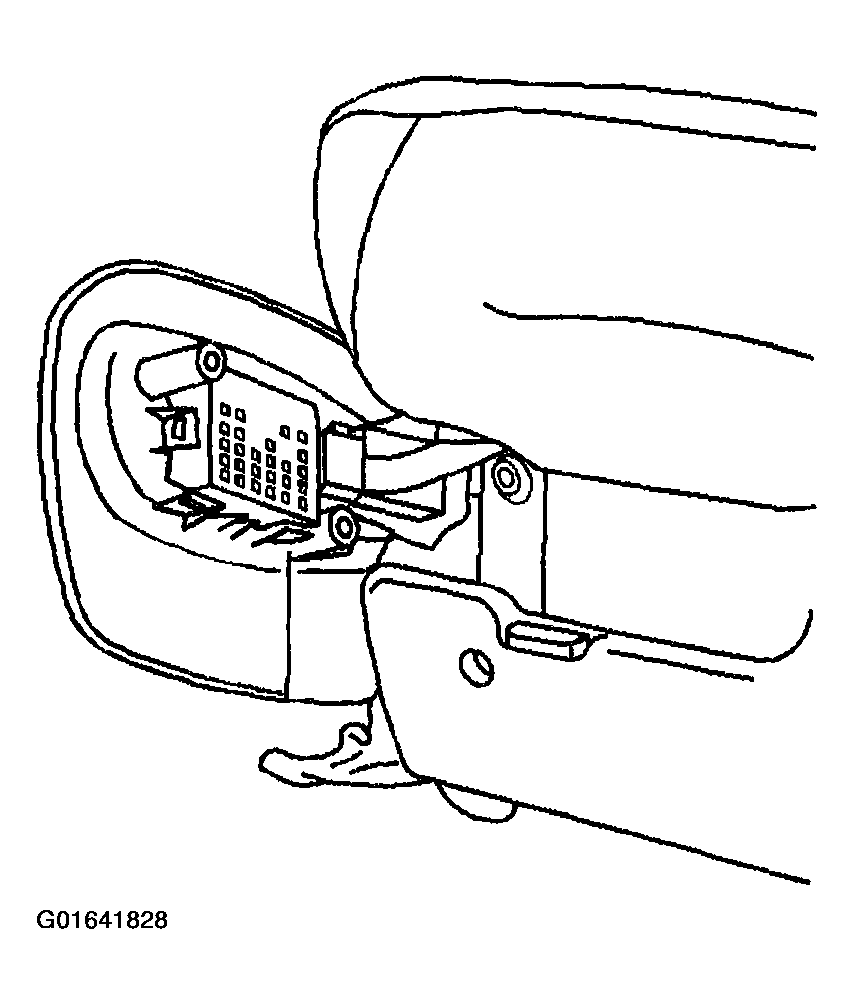

    2. Fig 1: Lumbar Switch To Switch Bezel Assembly
    G01641828Courtesy of GENERAL MOTORS CORP.
  2. Install the lumbar switch to the switch bezel assembly, verifying that the retaining tabs are fully seated.
  3. Install the power seat switch. Refer to SEAT SWITCH REPLACEMENT - POWER  .
  4. Install the switch bezel assembly to the seat. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
