Driver Seat Module (DSM)

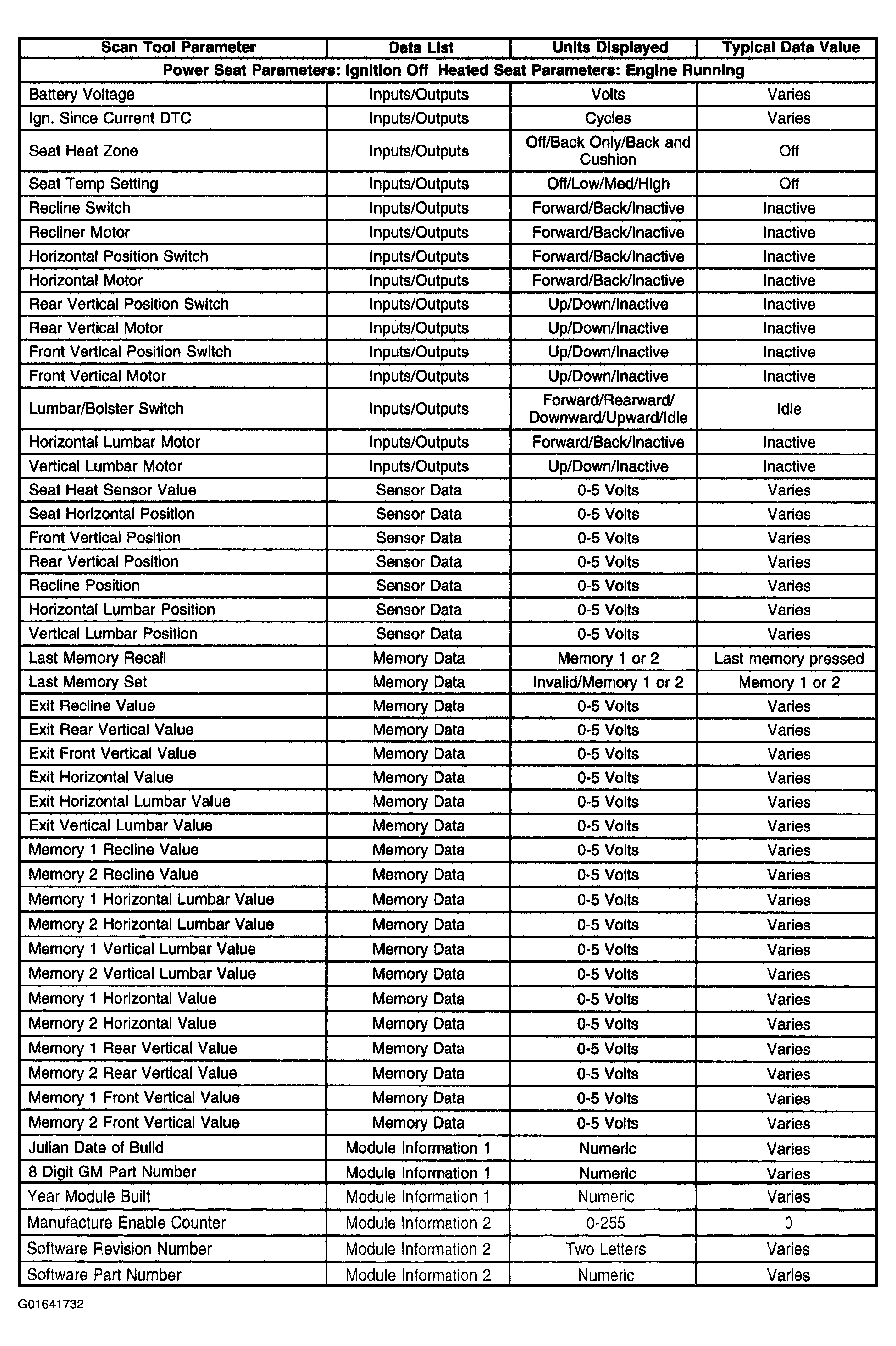

Fig 1: Scan Tool Data List - Driver Seat Module (DSM)
Courtesy of GENERAL MOTORS CORP.
