Scan Tool Data List

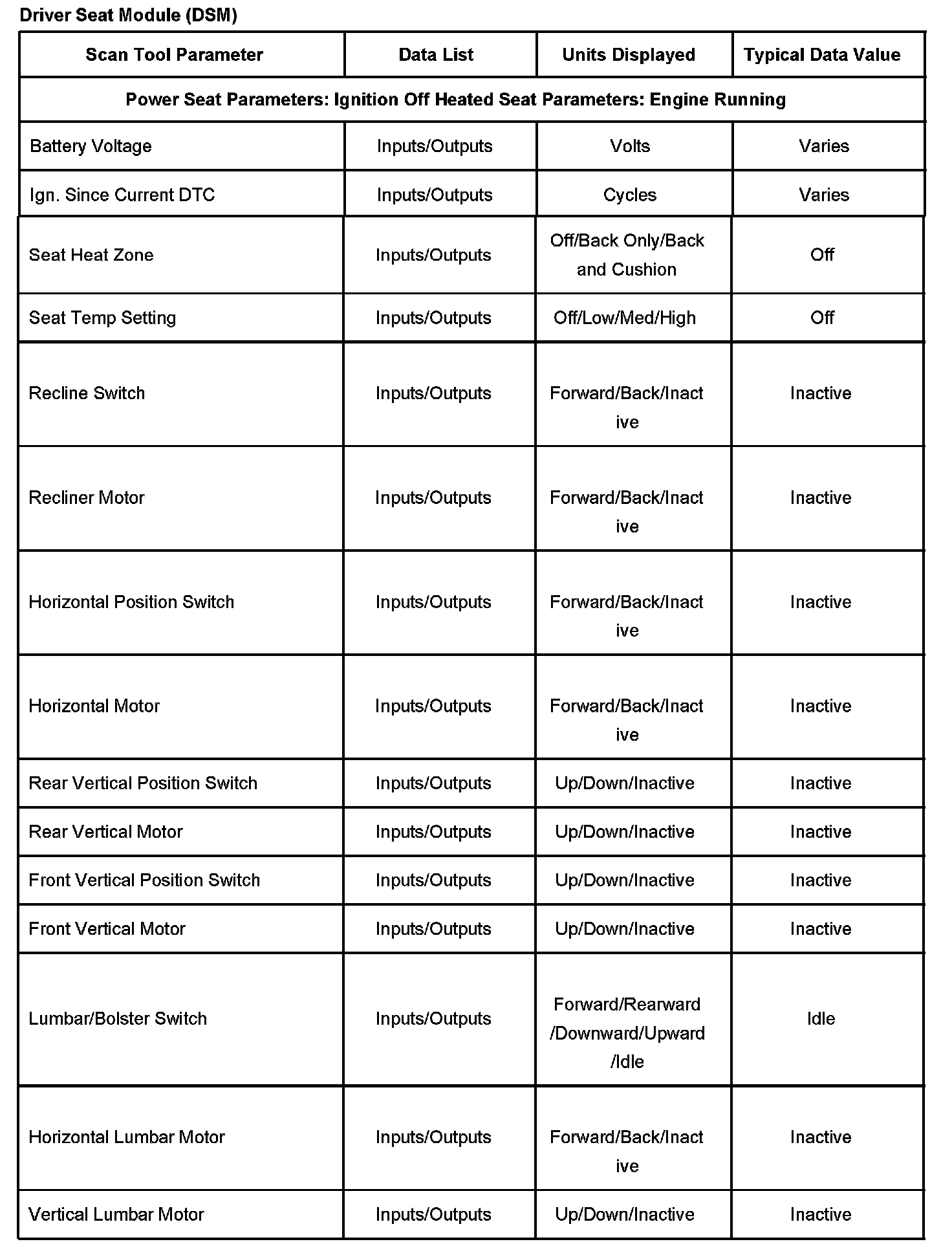

Driver Seat Module (DSM) Part 1:

Driver Seat Module (DSM) Part 2:

Driver Seat Module (DSM) Part 3:

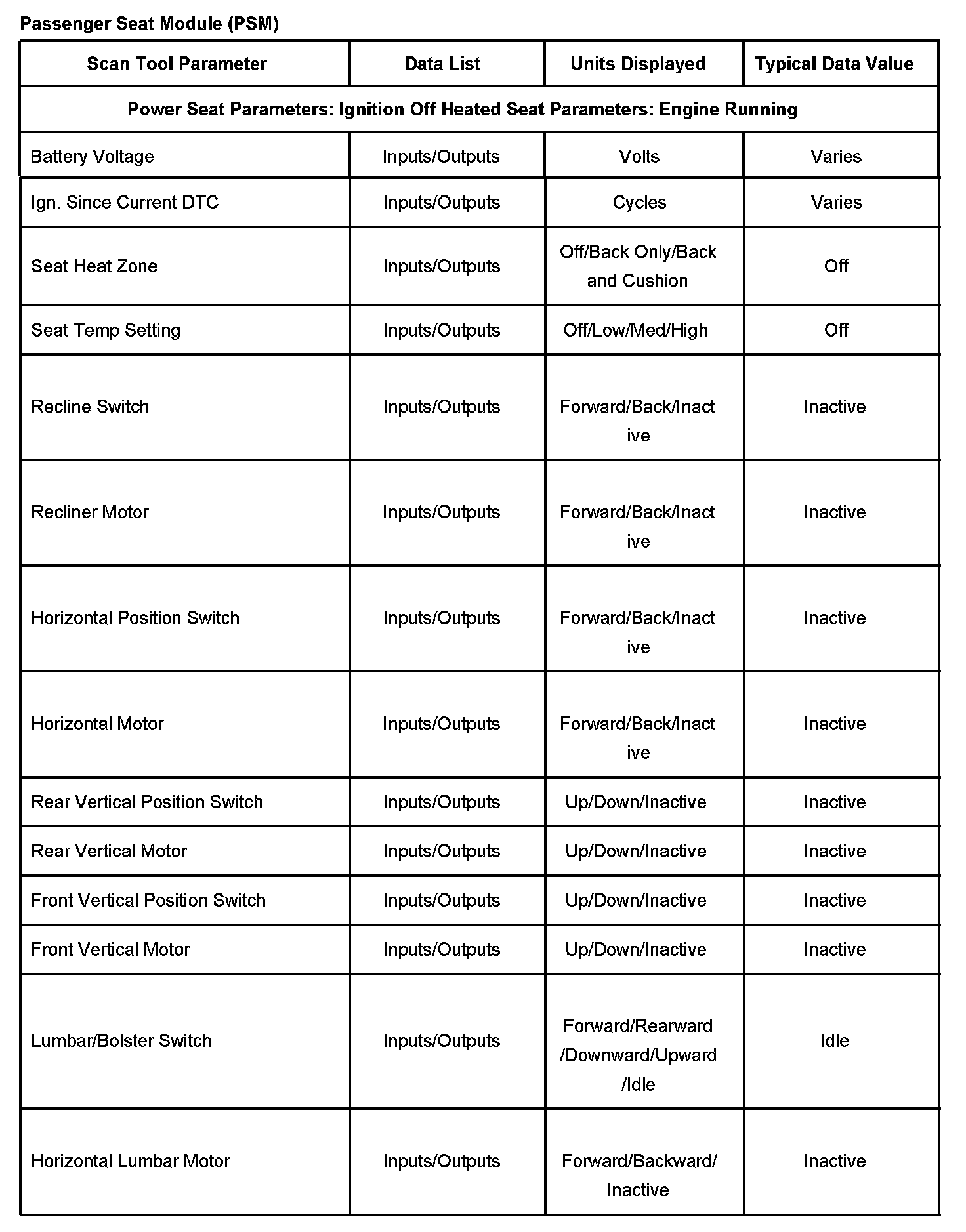

Passenger Seat Module (PSM) Part 1:

Passenger Seat Module (PSM) Part 2:

Driver Door Module (DDM):

Passenger Door Module (PDM):
