Shift Cable: Installation

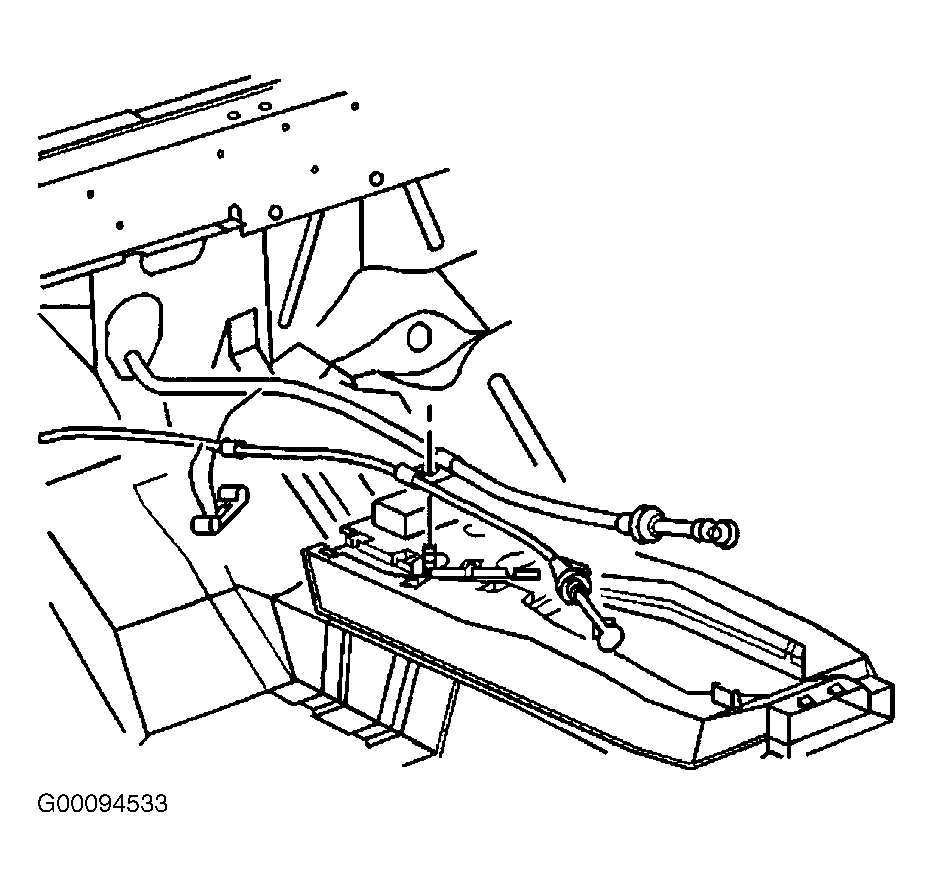

  1. Install the shift control cable to the vehicle. See Figure .
  2. Slide the transaxle range selector cable (1) fully into the console until it snaps into place.
  3. Connect the transaxle range selector cable terminal to the shift lever pin. See Figure .
  4. Install the console trim plate. See appropriate SHIFT INTERLOCK SYSTEMS article.
  5. Install the left console trim panel.
  6. Insert the transaxle range selector cable into the bracket. See Figure .
  7. Connect the transaxle range selector cable terminal to the transaxle manual shift lever pin.
  8. Insert the retainer to the shift cable mechanism. See Figure .
  9. Adjust the shift cable. See SHIFT CABLE  under ADJUSTMENTS.
