Scan Tool Output Controls

Fig 1: Scan Tool Output Controls Description Table (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

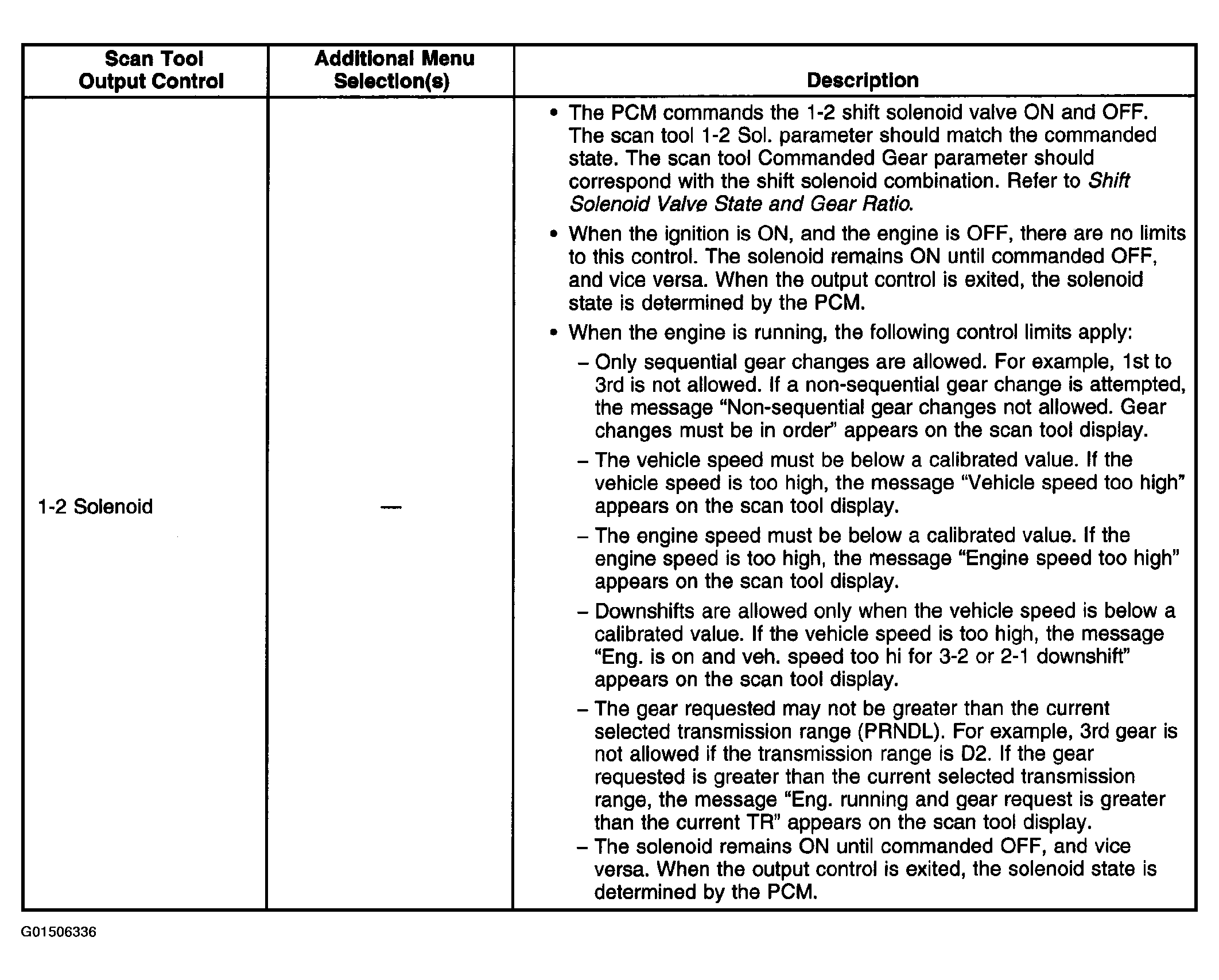

Fig 2: Scan Tool Output Controls Description Table (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Scan Tool Output Controls Description Table (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Scan Tool Output Controls Description Table (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
