Assembly Procedure

  1. After replacing the damaged pump assembly (1) with the new pump assembly (1), assemble the pump reservoir.

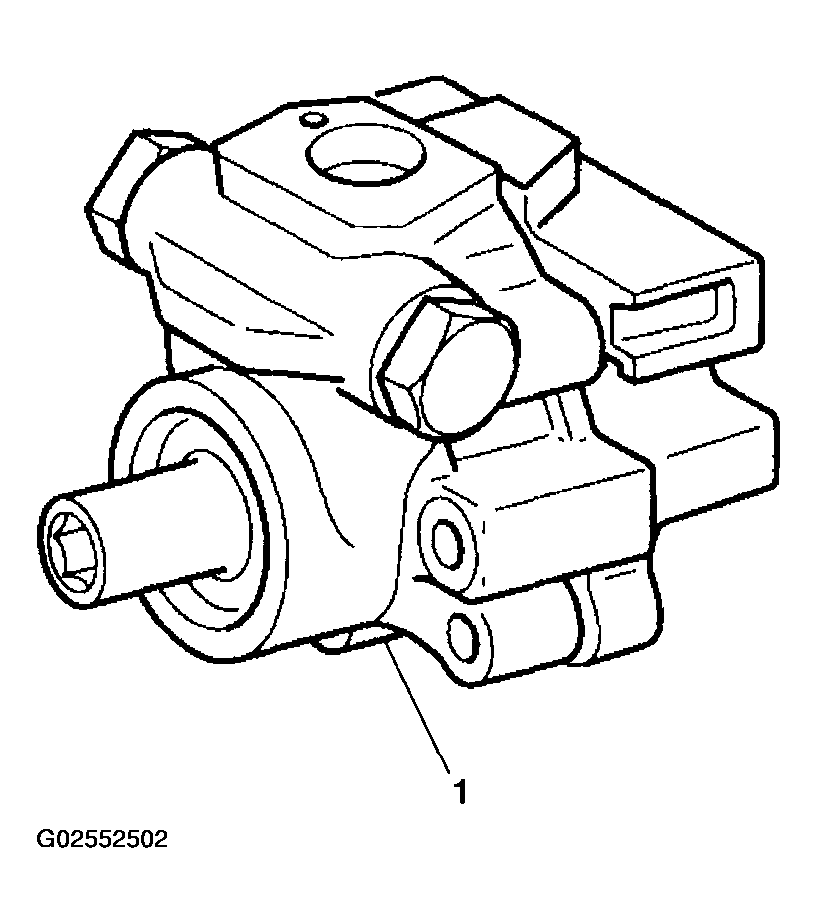

    Fig 1: Power Steering Pump
    G02552502Courtesy of GENERAL MOTORS CORP.
  2. Refer to POWER STEERING RESERVOIR REPLACEMENT - OFF VEHICLE  .
