Removal Procedure

  1. Remove the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (L47)  .
  2. Install J 25034-C  to the power steering pulley.
  3. Using J 25034-C  remove the power steering pump pulley.

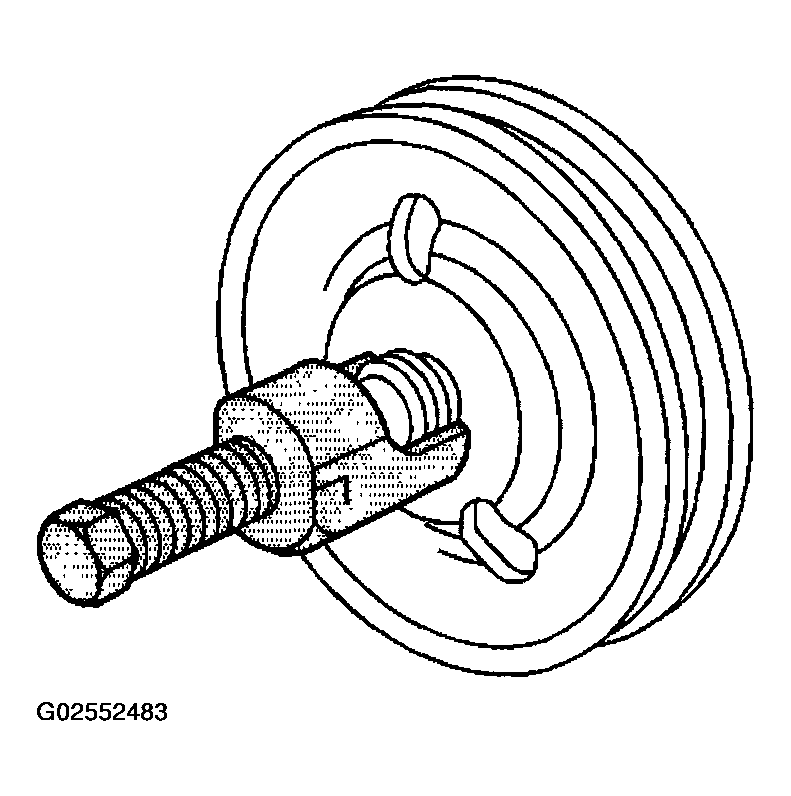

    Fig 1: Removing Power Steering Pump Pulley
    G02552483Courtesy of GENERAL MOTORS CORP.
