Diagnostic Procedures

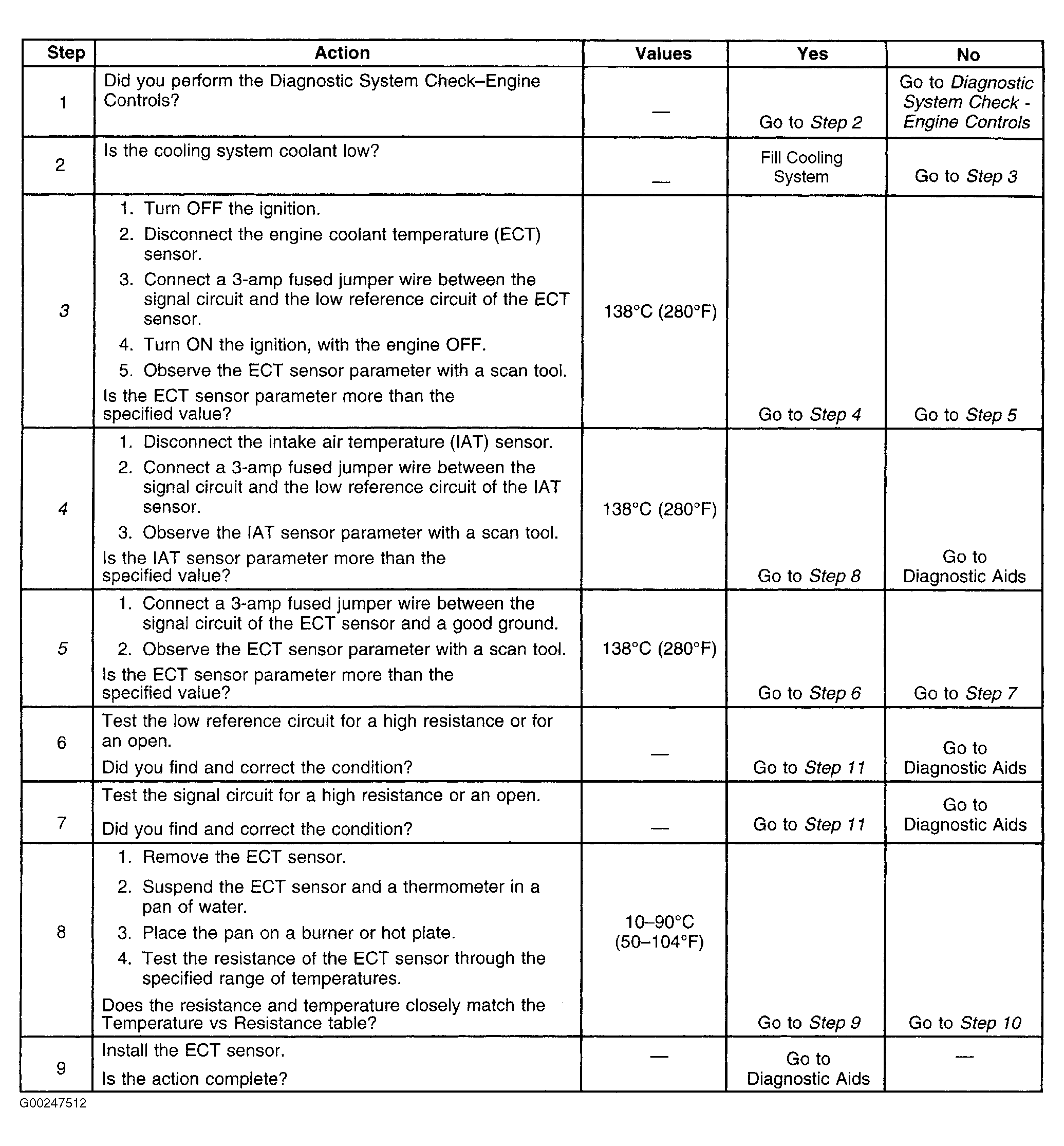

Fig 1: DTC P0116: Engine Coolant Temperature Sensor Circuit Performance (Steps 1-9)
G00247512Courtesy of GENERAL MOTORS CORP.

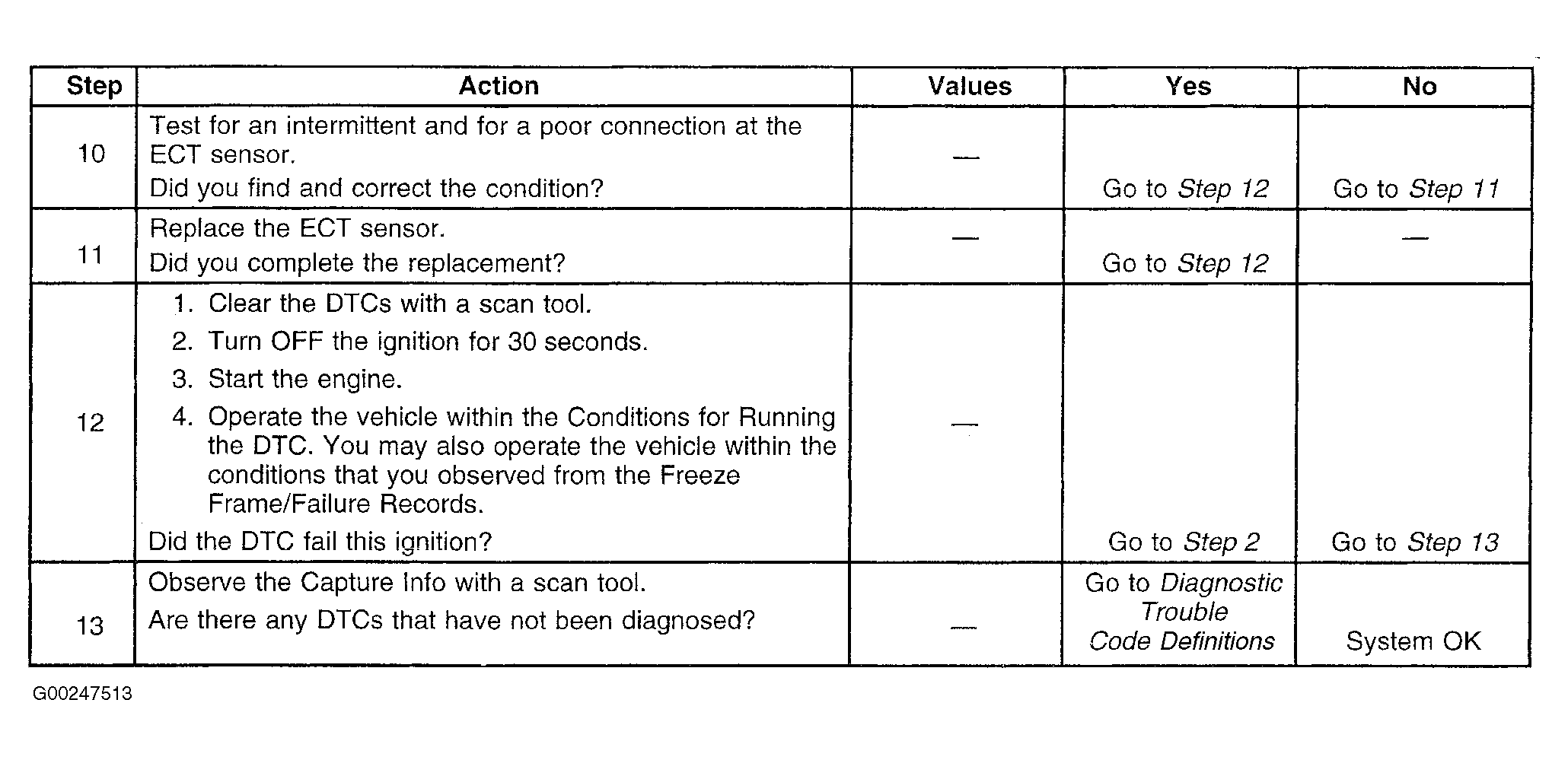

Fig 2: DTC P0116: Engine Coolant Temperature Sensor Circuit Performance (Steps 10-13)
G00247513Courtesy of GENERAL MOTORS CORP.
