Automatic Transmission Shift Lock Control Connector End Views
Fig 1: Identifying Shift Control Assembly Connector Terminals
Courtesy of GENERAL MOTORS CORP.

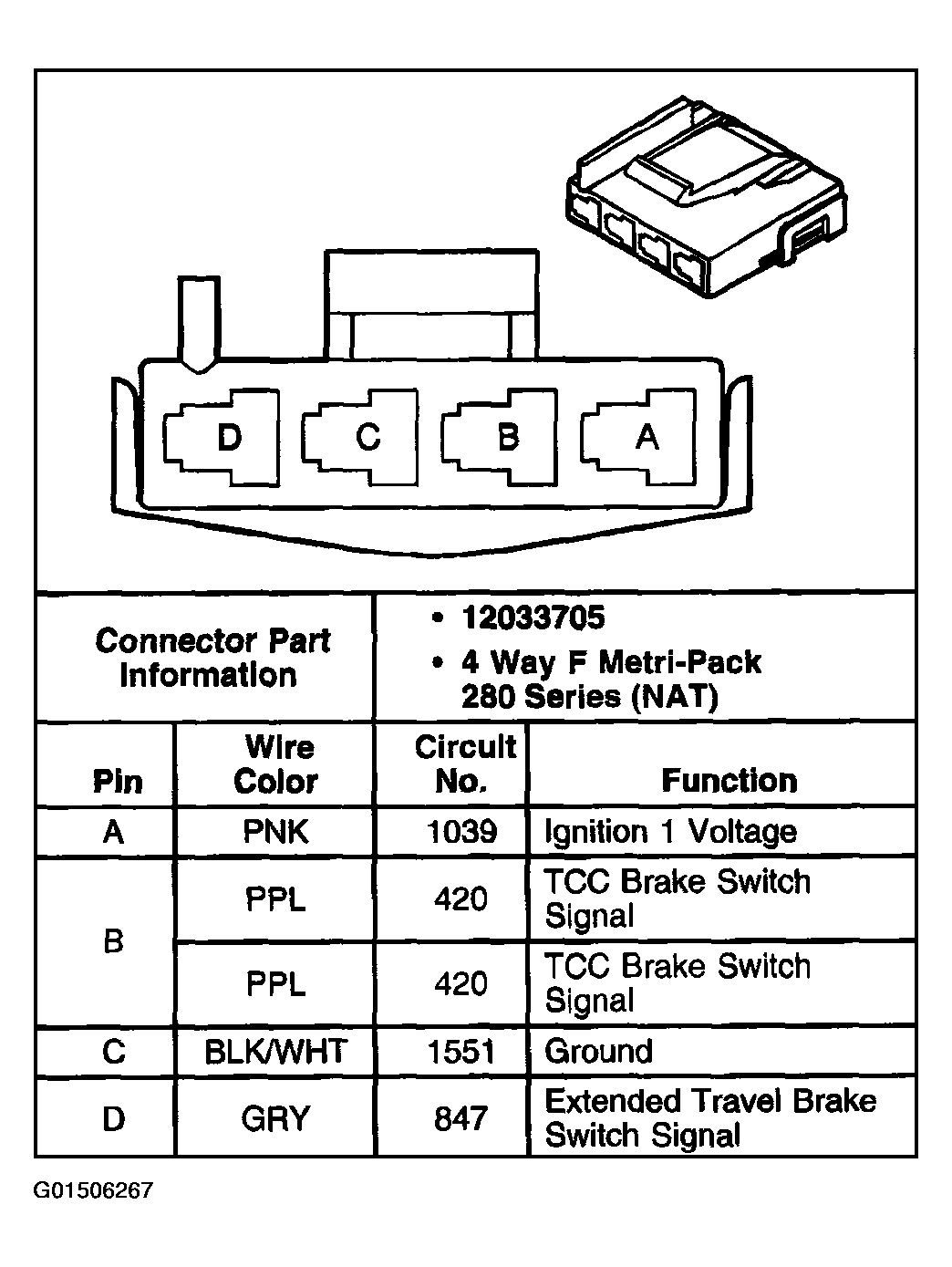

Fig 2: Identifying TCC/Cruise Release Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
