Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the door module. Refer to DOOR CONTROL MODULE REPLACEMENT  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Remove the window inner belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  5. Remove the window outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER  .
  6. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  7. Remove the fasteners from the front window channel (2).
  8. Carefully pull the window weatherstrip from the door.

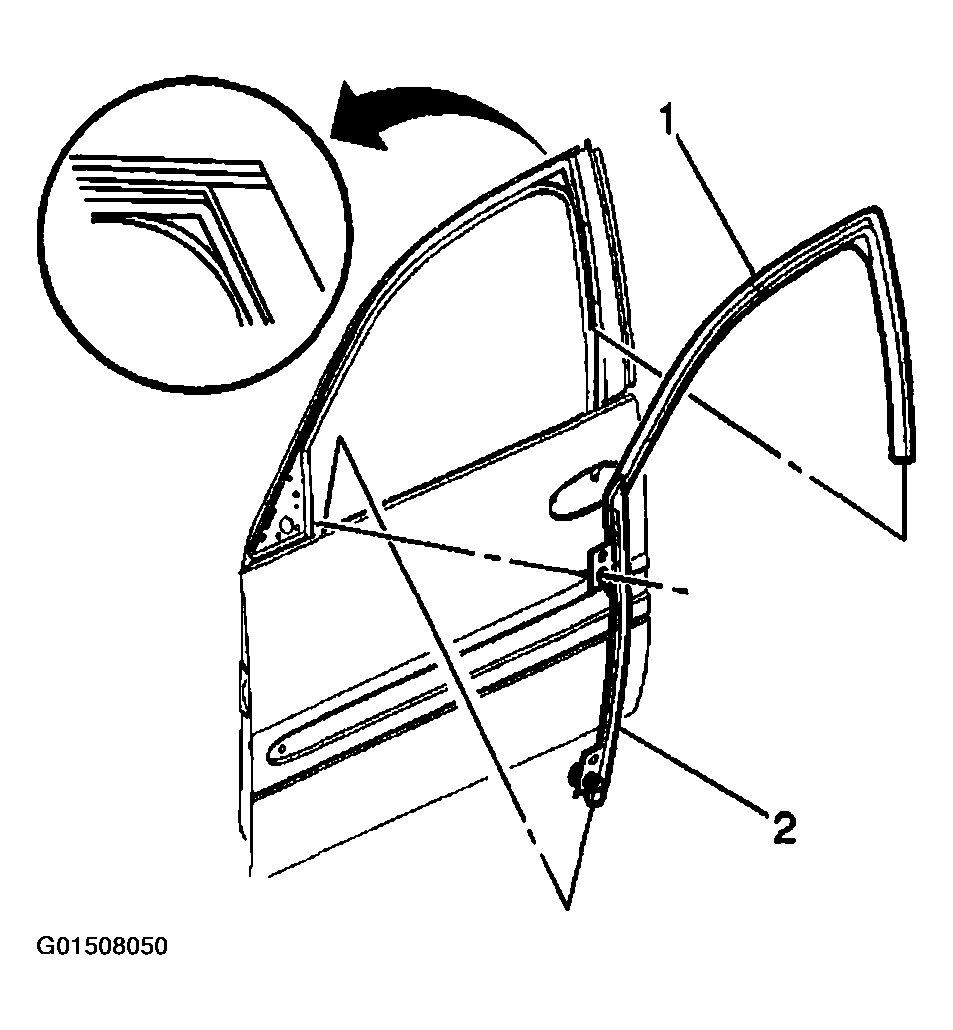

    9. Fig 1: Removing Front Door Window Weatherstrip
    G01508050Courtesy of GENERAL MOTORS CORP.
