Electronic Brake Control Module: Locations

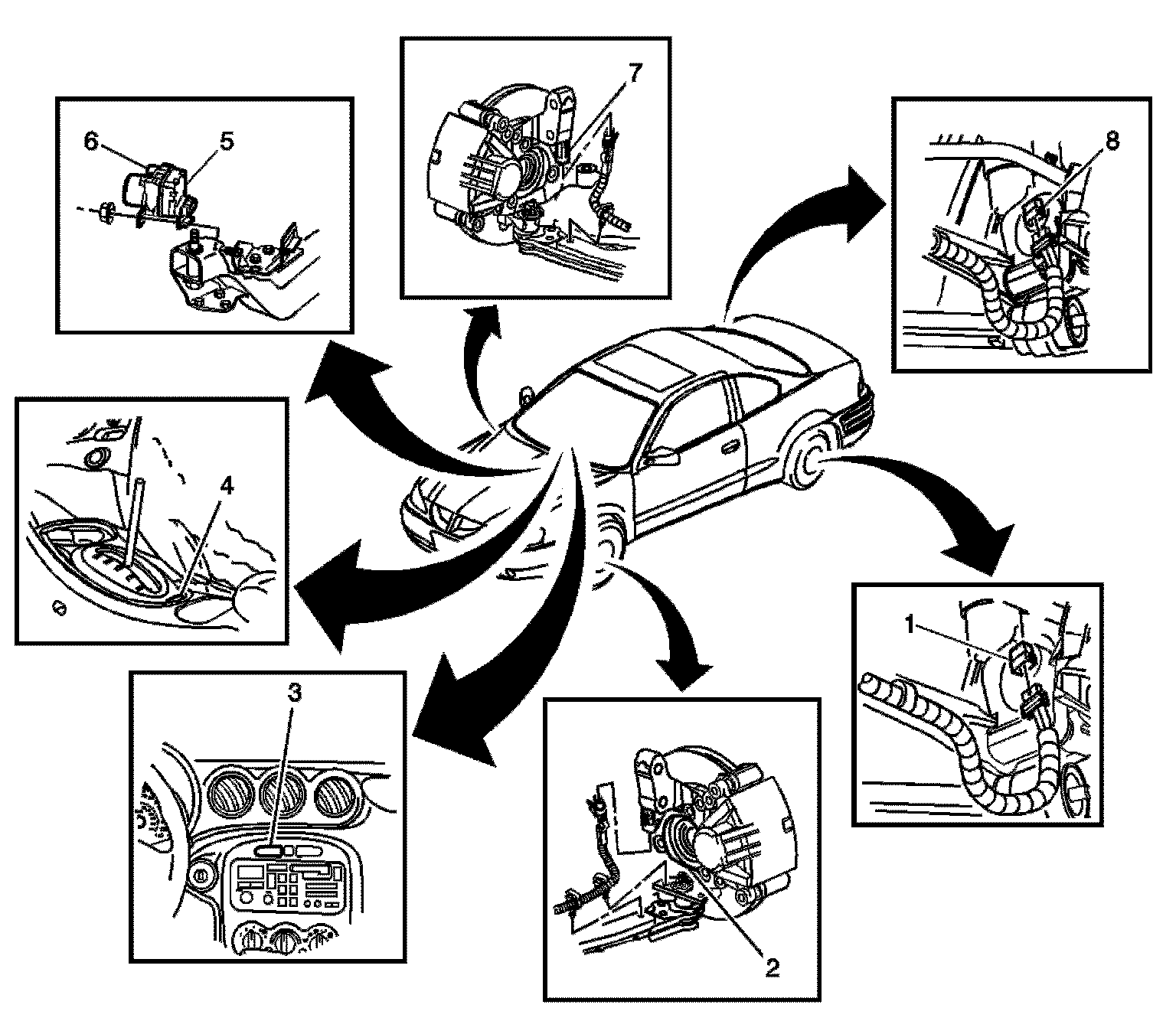

Antilock Brake System Component Views






(1) Wheel Speed Sensor (WSS) - LR
(2) Wheel Speed Sensor (WSS) - LF
(3) Traction Control Switch (Pontiac)
(4) Traction Control Switch (Oldsmobile)
(5) Electronic Brake Control Module (EBCM)
(6) Brake Pressure Modulator Valve (BPMV)
(7) Wheel Speed Sensor (WSS) - RF
(8) Wheel Speed Sensor (WSS) - RR
