System Diagram

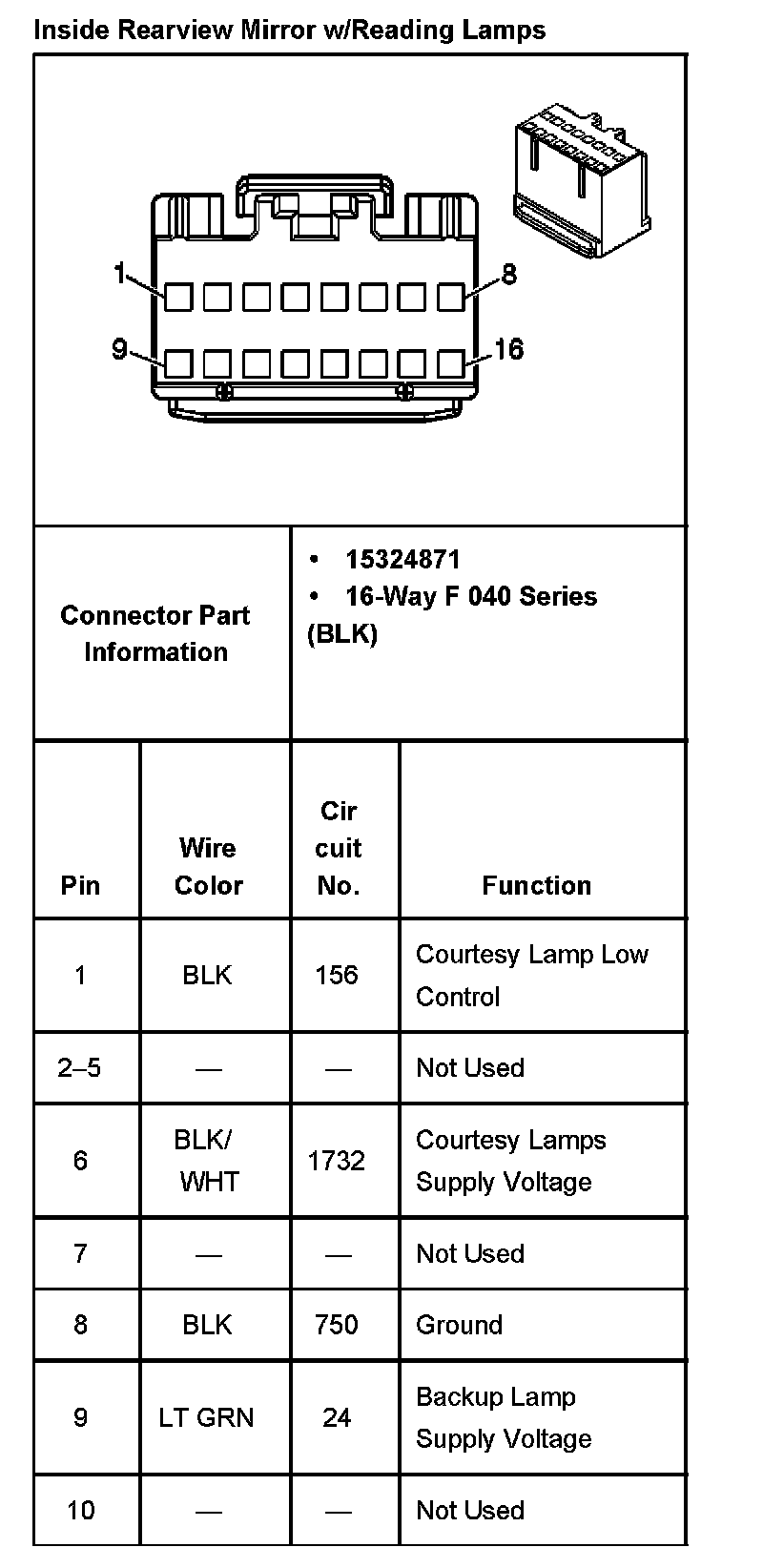

Inside Rearview Mirror W/Reading Lamps Part 1:

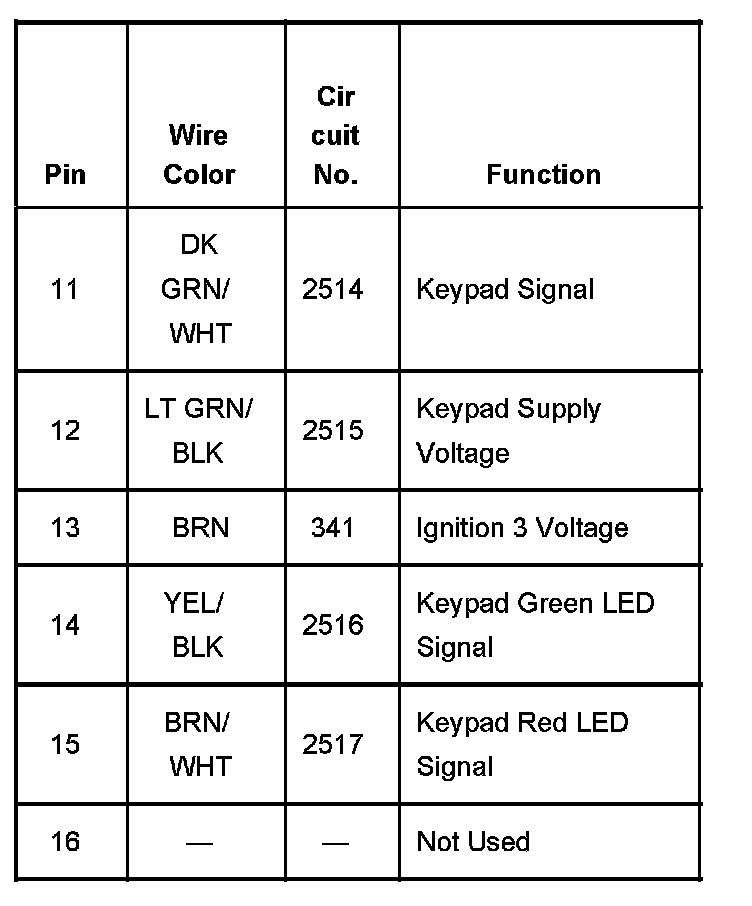

Inside Rearview Mirror W/Reading Lamps Part 2:

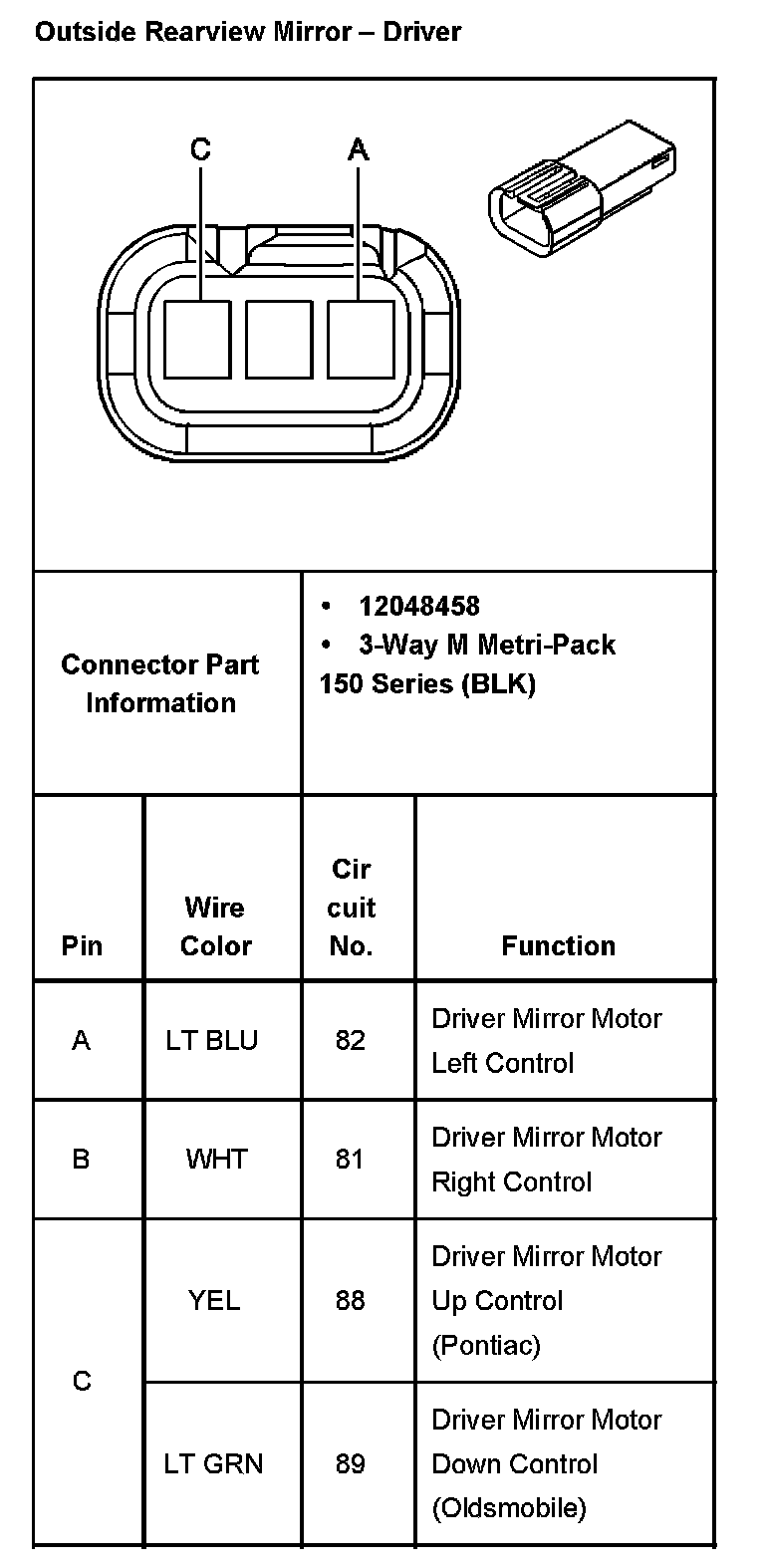

Outside Rearview Mirror - Driver:

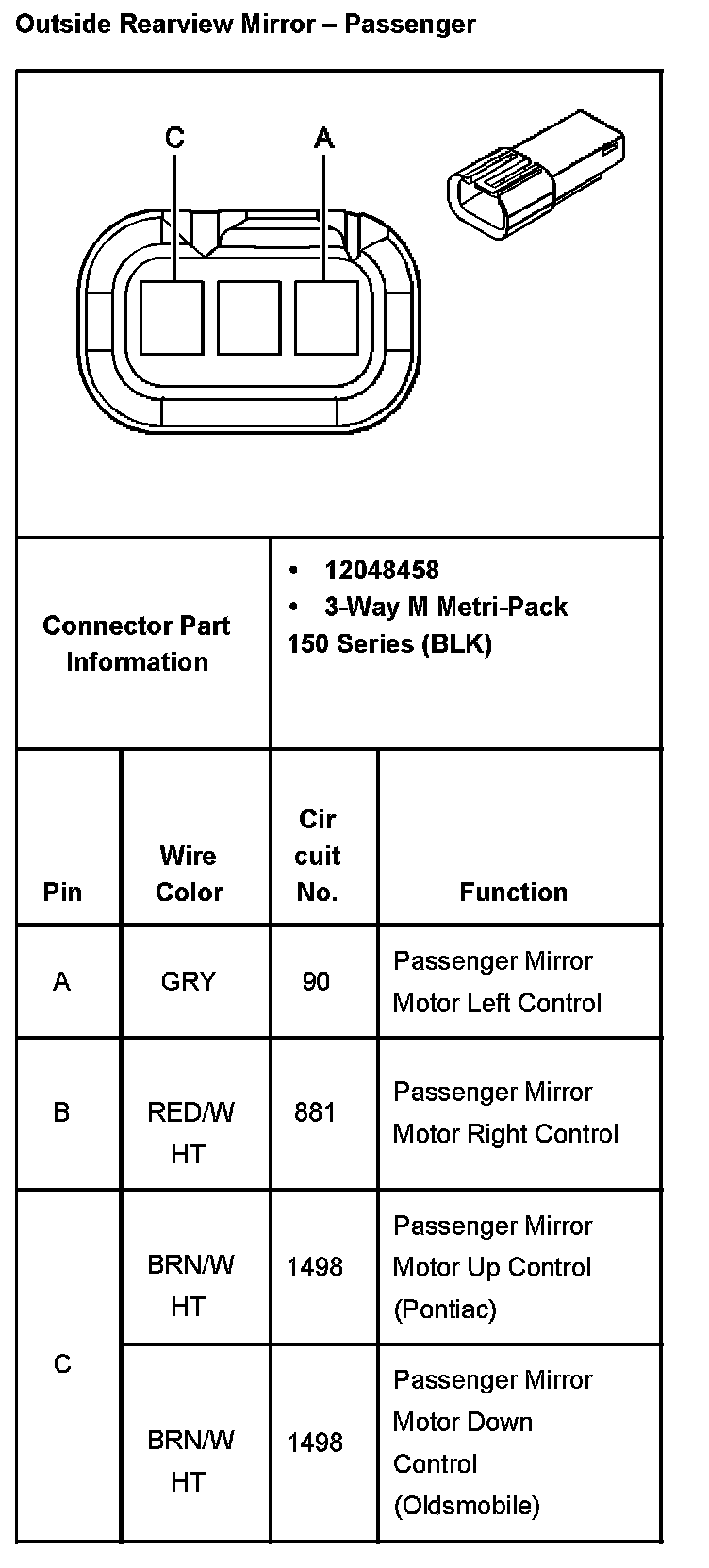

Outside Rearview Mirror - Passenger:



Inside Rearview Mirror W/Reading Lamps:
