2-3 Shift Solenoid Valve: Installation

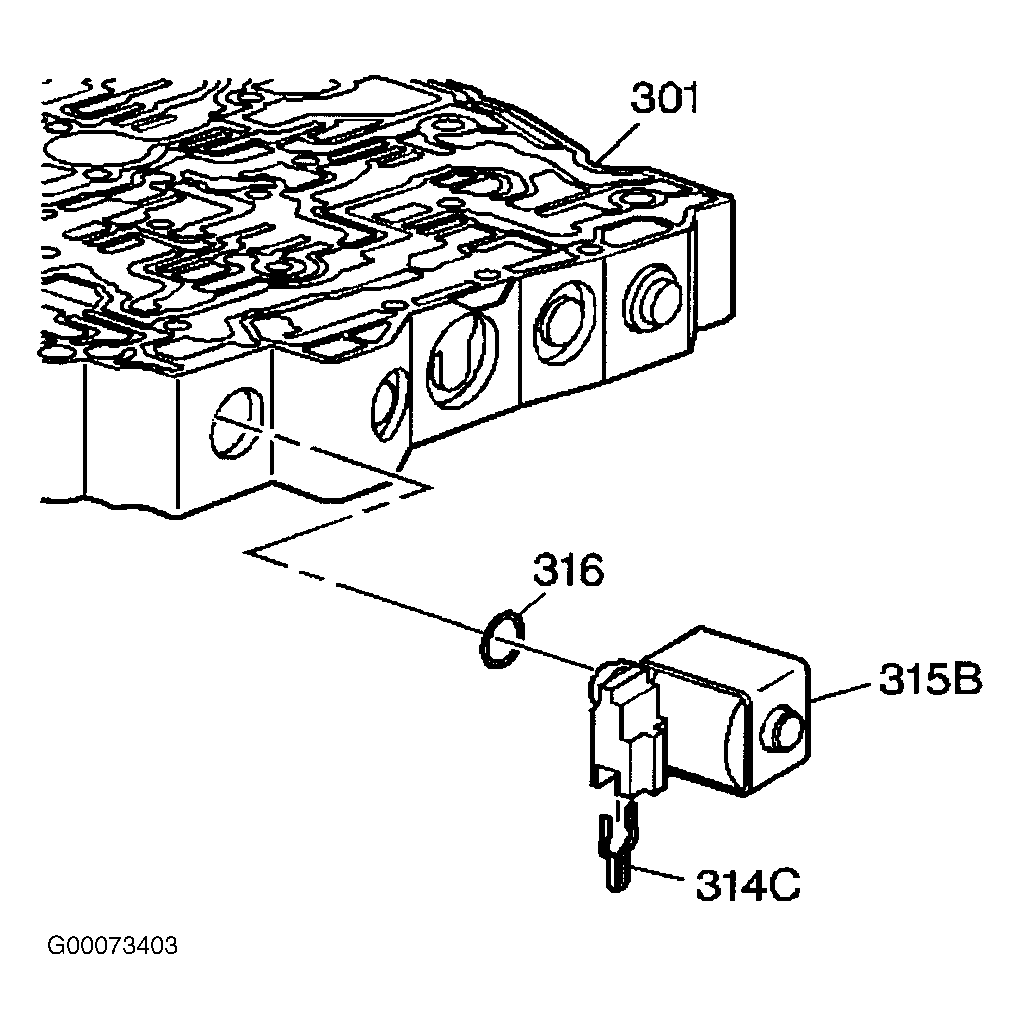

Install the 2-3 shift solenoid valve (315B) into the control valve body (301). See Figure . Install the 2-3 shift solenoid valve retainer (314C) into the control valve body (301). Connect the transaxle wiring harness. Install the case side cover. See CASE SIDE COVER  .
