Transaxle Range Switch Connector End View C1 (Harness Side)

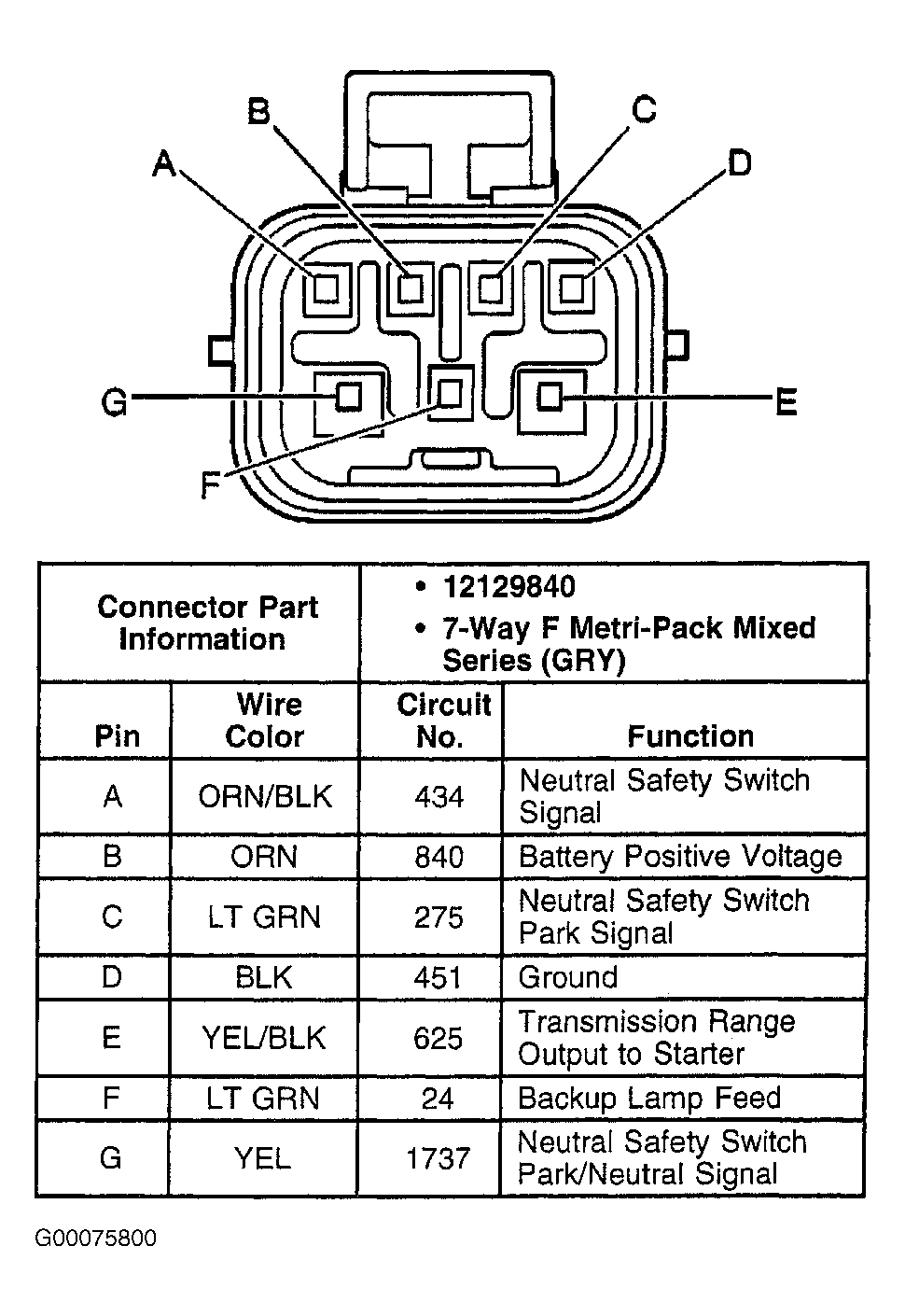

Fig 1: Transaxle Range Switch C1 (Harness Side)
G00075800Courtesy of GENERAL MOTORS CORP.
