Test Description

The numbers below refer to step numbers on the diagnostic table.

1. 2. Checks if the instrument panel cluster has the ability to turn the LOW TRAC indicator off or if the EBTCM is sending an incorrect command to turn the LOW TRAC indicator on.

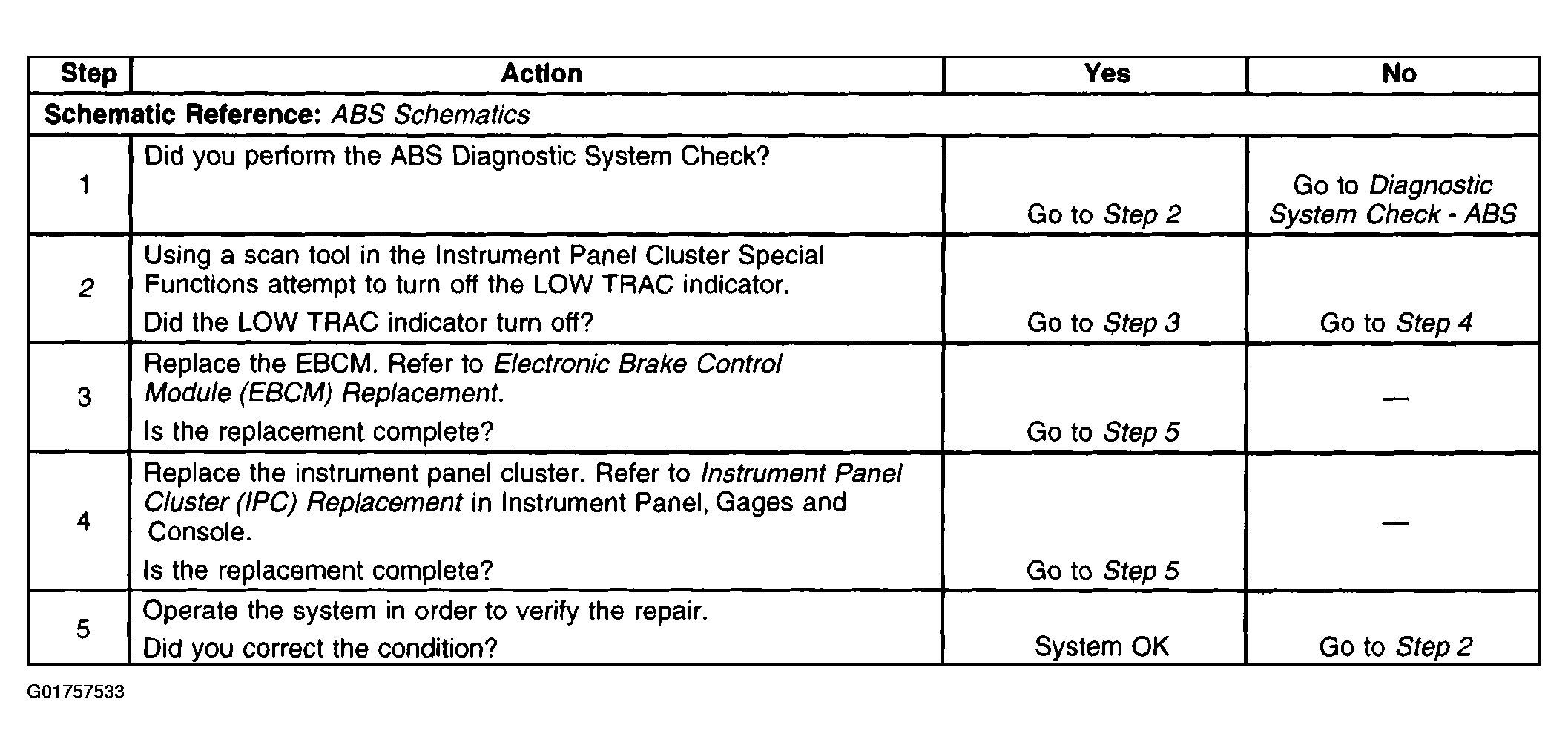

   Fig 1: Low Traction Indicator Always On

   Courtesy of GENERAL MOTORS CORP.
