Removal Procedure
- Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door
- Remove the door water deflector. Refer to Water Deflector Replacement - Front Door .

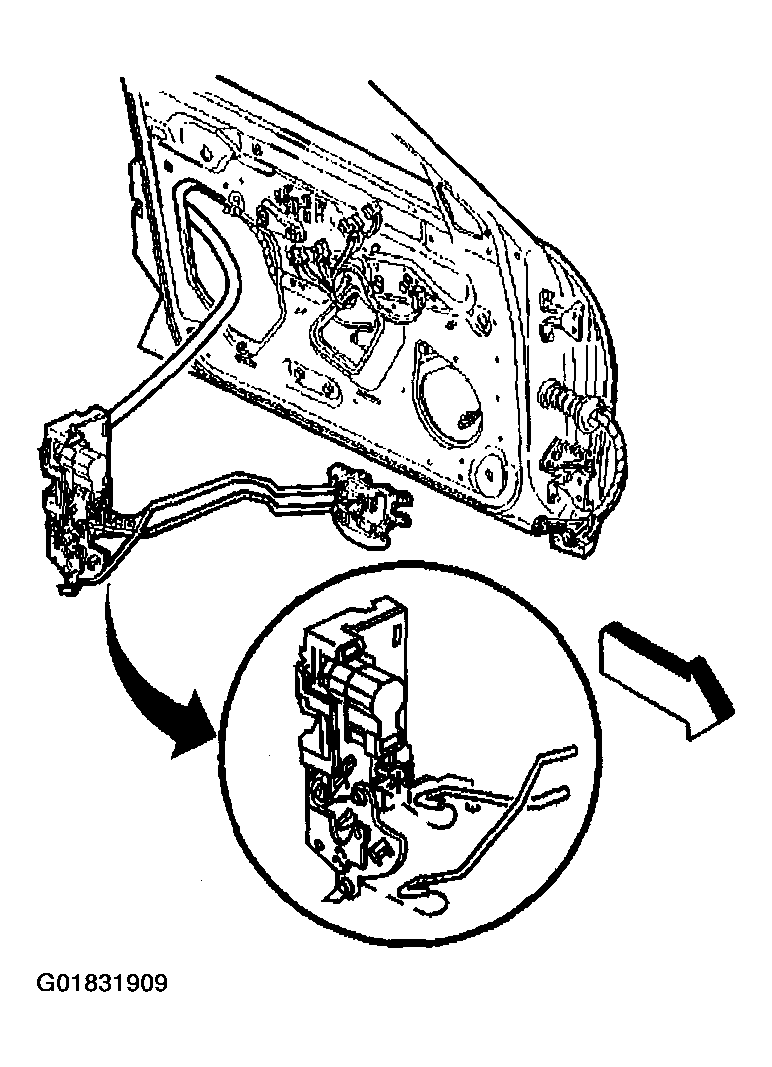

- Remove the locking rod from the plastic door clip.
- Remove the locking rod from the inside handle.
- Rotate the locking rod clockwise and remove it from the door lock.
- Remove the front door inside locking rod from the front door.
