Installation Procedure

  1. Install the power seat switch to the finish trim panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the power seat switch screws.

    Tighten

    Tighten the power seat switch screws to 3 N.m (27 lb in).

  3. Install the finish trim panel. Refer to Trim Panel Replacement - Front Seat .

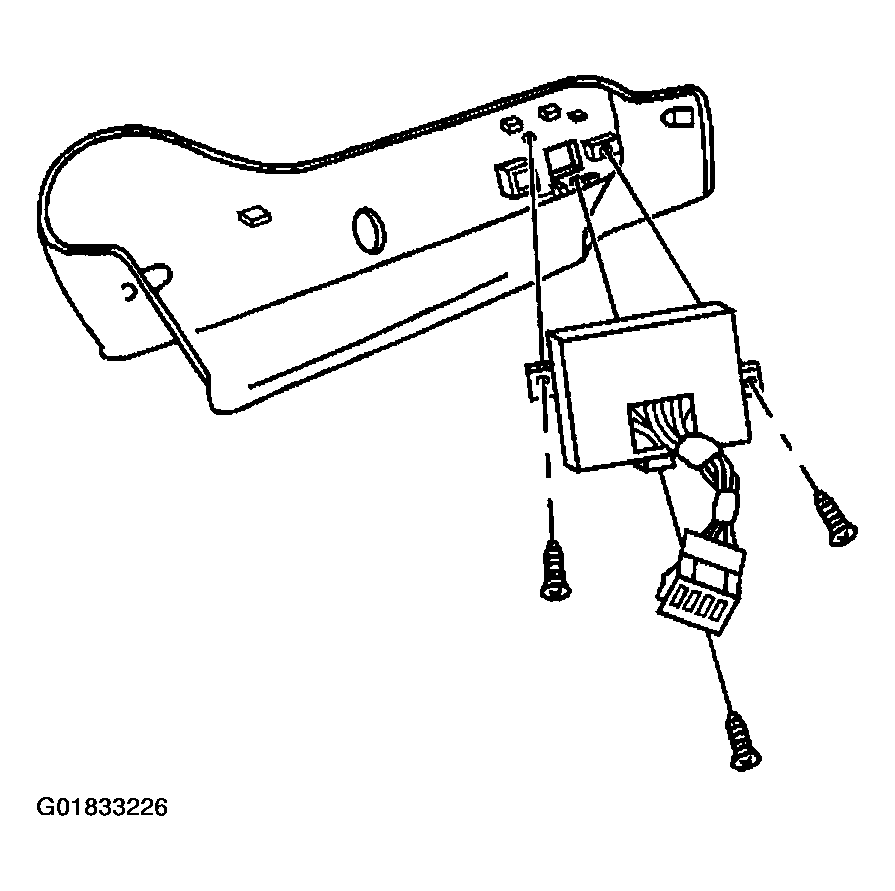

    Fig 1: Installing Power Seat Switch Screws
    G01833226Courtesy of GENERAL MOTORS CORP.
