Installation Procedure

  1. Position the front seat back on the front seat cushion.
    Fig 1: Positioning Front Seat Back On Front Seat Cushion
    G01833182Courtesy of GENERAL MOTORS CORP.
  2. Route the lumbar cable, heated seat cable and the side air bag wire harness to the front seat cushion/frame area.
    NOTE: Refer to FASTENER NOTICE .

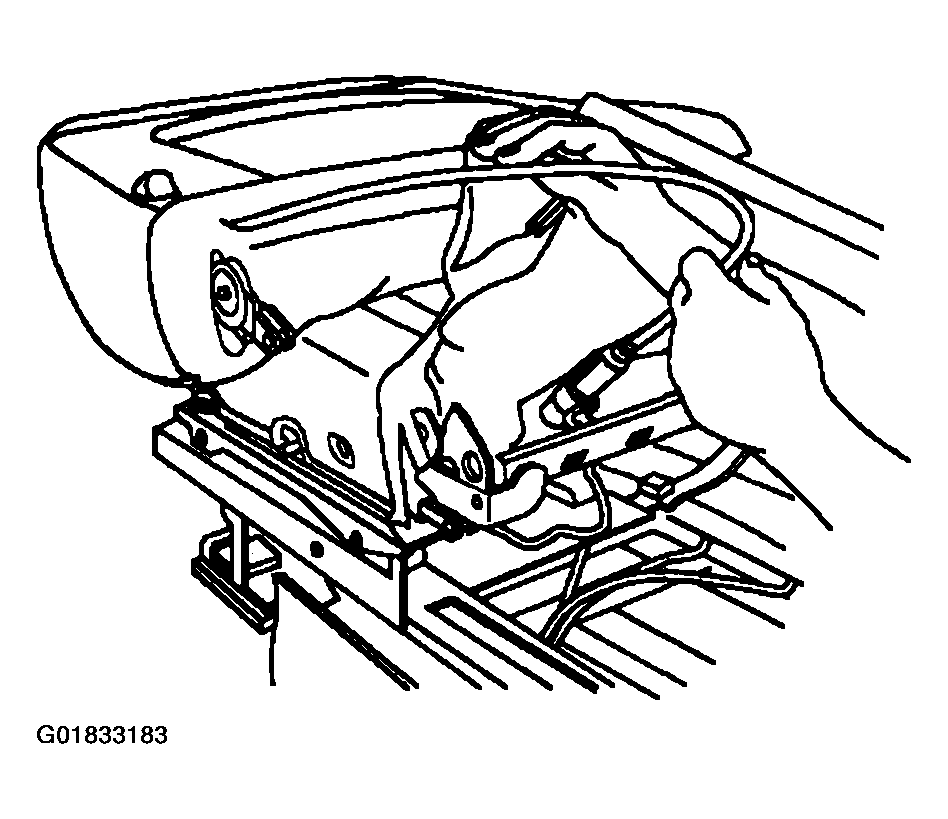

    Fig 2: Routing Lumbar Cable, Heated Seat Cable And Side Air Bag Wire Harness To Front Seat Cushion/Frame Area
    G01833183Courtesy of GENERAL MOTORS CORP.
  3. Install the front seat back bolts (1) to the seat back hinge.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

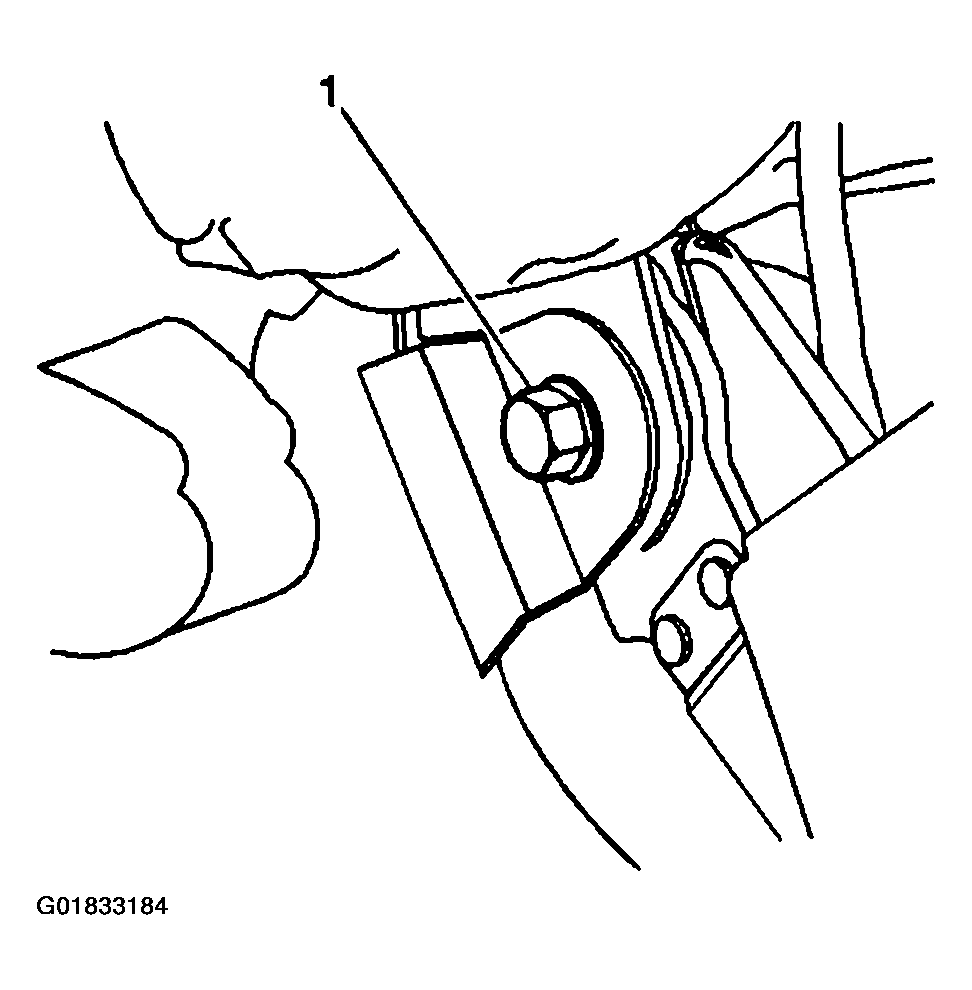

    Fig 3: Installing Front Seat Back Bolts To Seat Back Hinge
    G01833184Courtesy of GENERAL MOTORS CORP.
  4. Install new front seat back recliner roll pins to the seat back hinge.

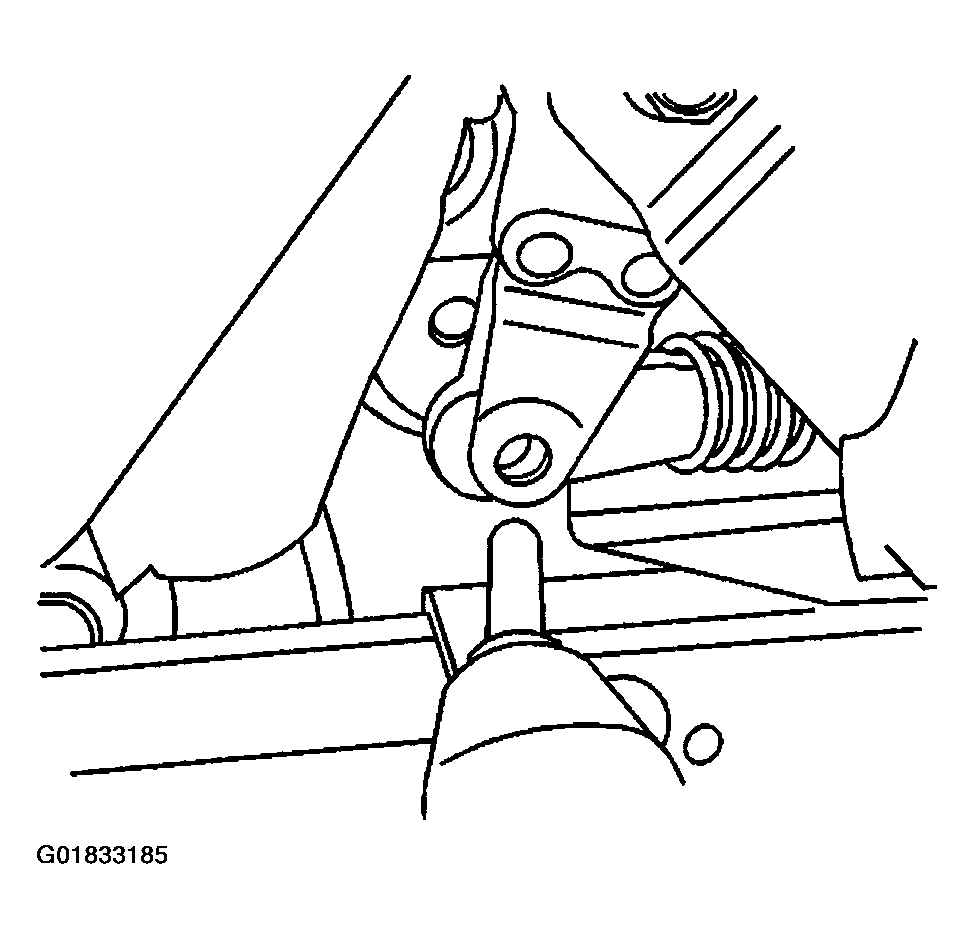

    Fig 4: Installing New Front Seat Back Recliner Roll Pins To Seat Back Hinge
    G01833185Courtesy of GENERAL MOTORS CORP.
  5. Connect the J-hook retainers at the rear of the front seat cushion.
    Fig 5: Connecting J-Hook Retainers At Rear Of Front Seat Cushion
    G01833186Courtesy of GENERAL MOTORS CORP.
  6. Connect the J-hook retainers at each end of the front seat cushion.
  7. Install the front seat outer trim panel. Refer to Trim Panel Replacement - Front Seat .
  8. Inspect the front seat back for proper operation.
  9. Install the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .

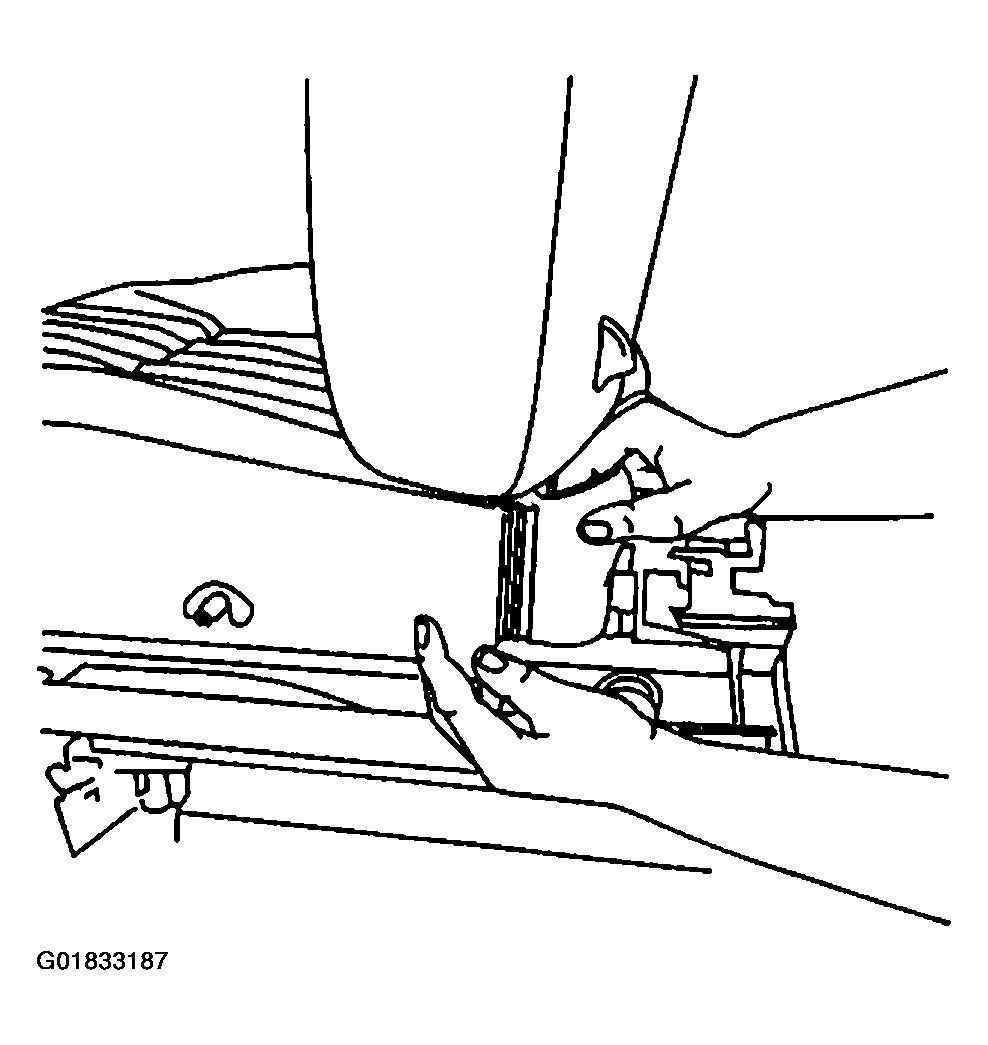

    Fig 6: Inspecting Front Seat Back For Proper Operation
    G01833187Courtesy of GENERAL MOTORS CORP.
