Shift Lock Solenoid (Console Shift - Except Intrigue): Installation

Install the upper clip (1) of the shift lock control onto the upper pivot point, and the lower clip onto the lower pivot point. See Fig 2 .
Connect the electrical connector to the shift lock control.
Install the center console. See CONSOLE (CENTURY & REGAL) .
Connect the negative battery cable.

Fig 1: Locating Shift Lock Solenoid Connector

Courtesy of GENERAL MOTORS CORP.

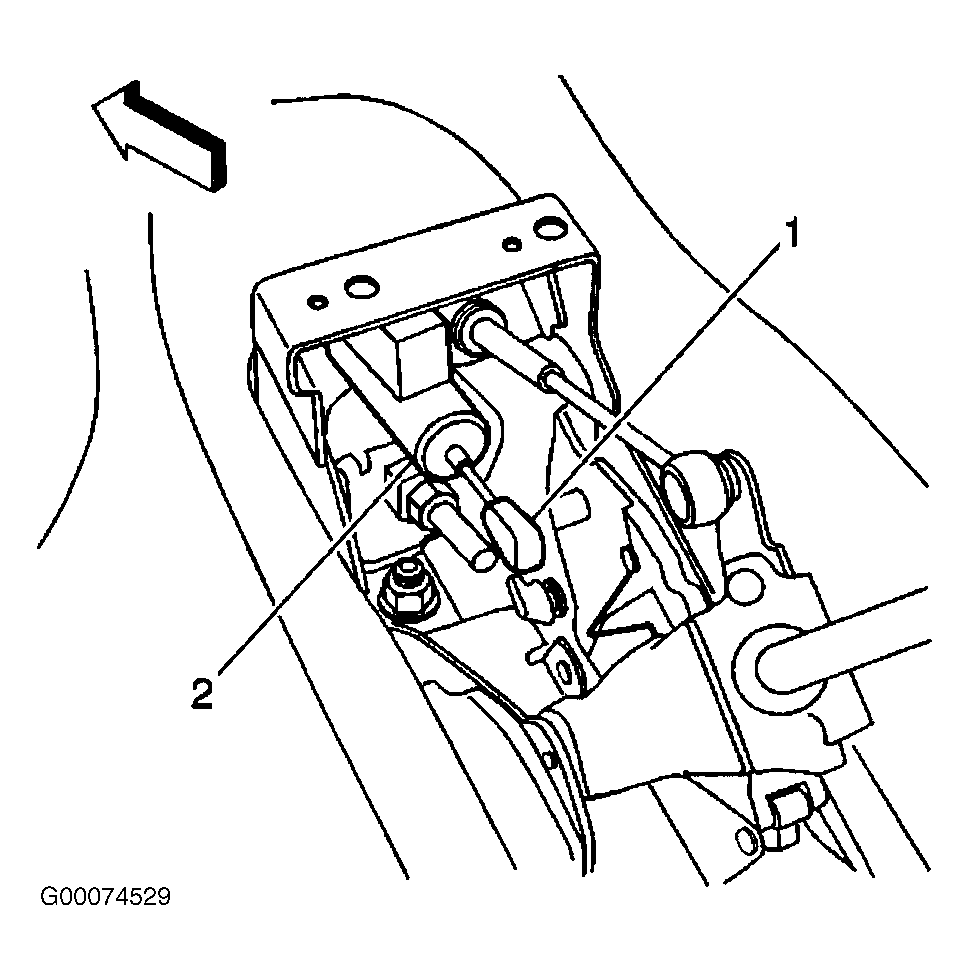

Fig 2: Locating Shift Lock Solenoid Pivot Points

Courtesy of GENERAL MOTORS CORP.
