Horns Connector End Views

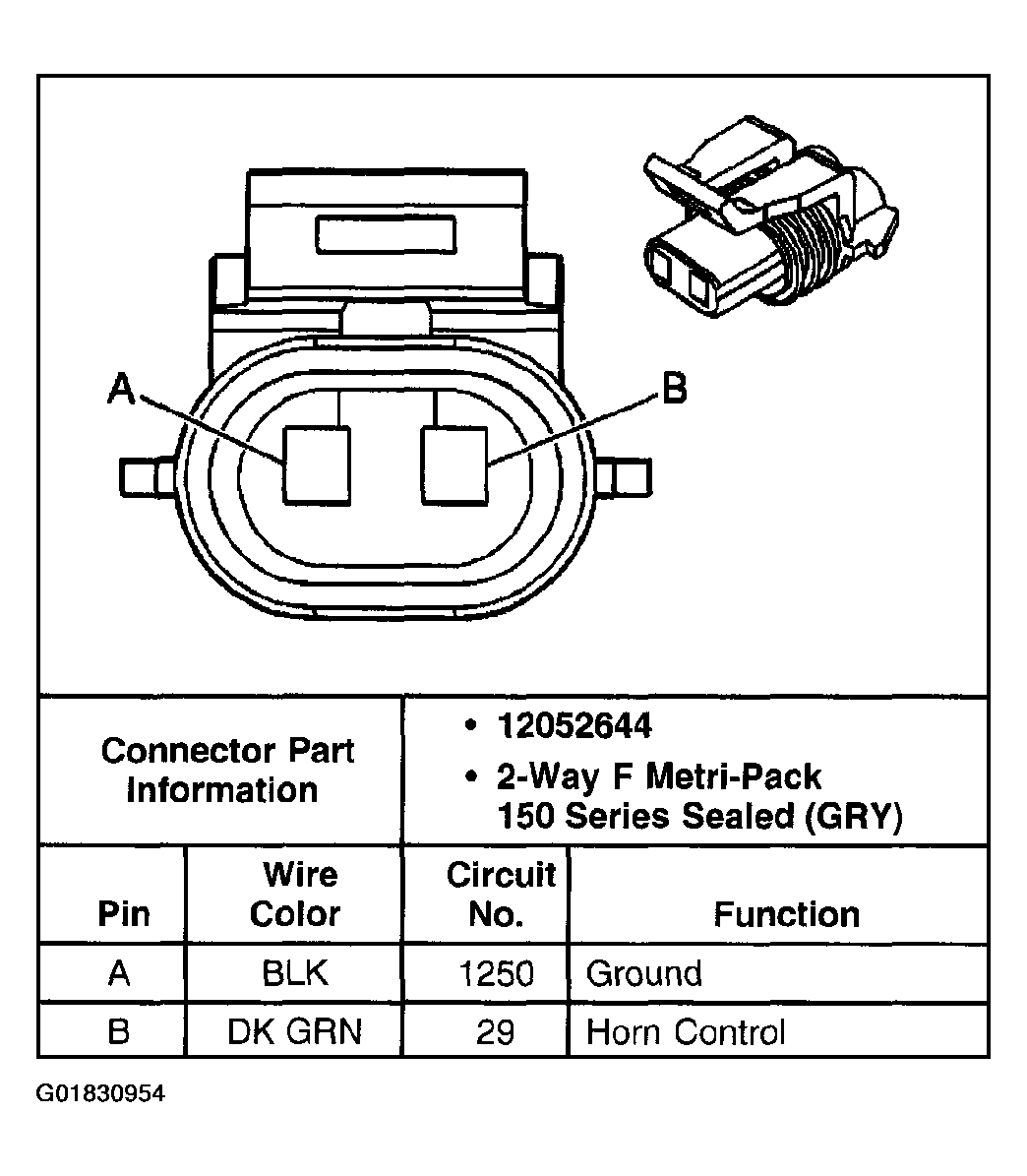

Fig 1: Horn Assembly Connector End View
G01830954Courtesy of GENERAL MOTORS CORP.
