Test Description

The number below refers to the step number on the diagnostic table.

  1. 2. This step tests the condition of the Navigation Antenna

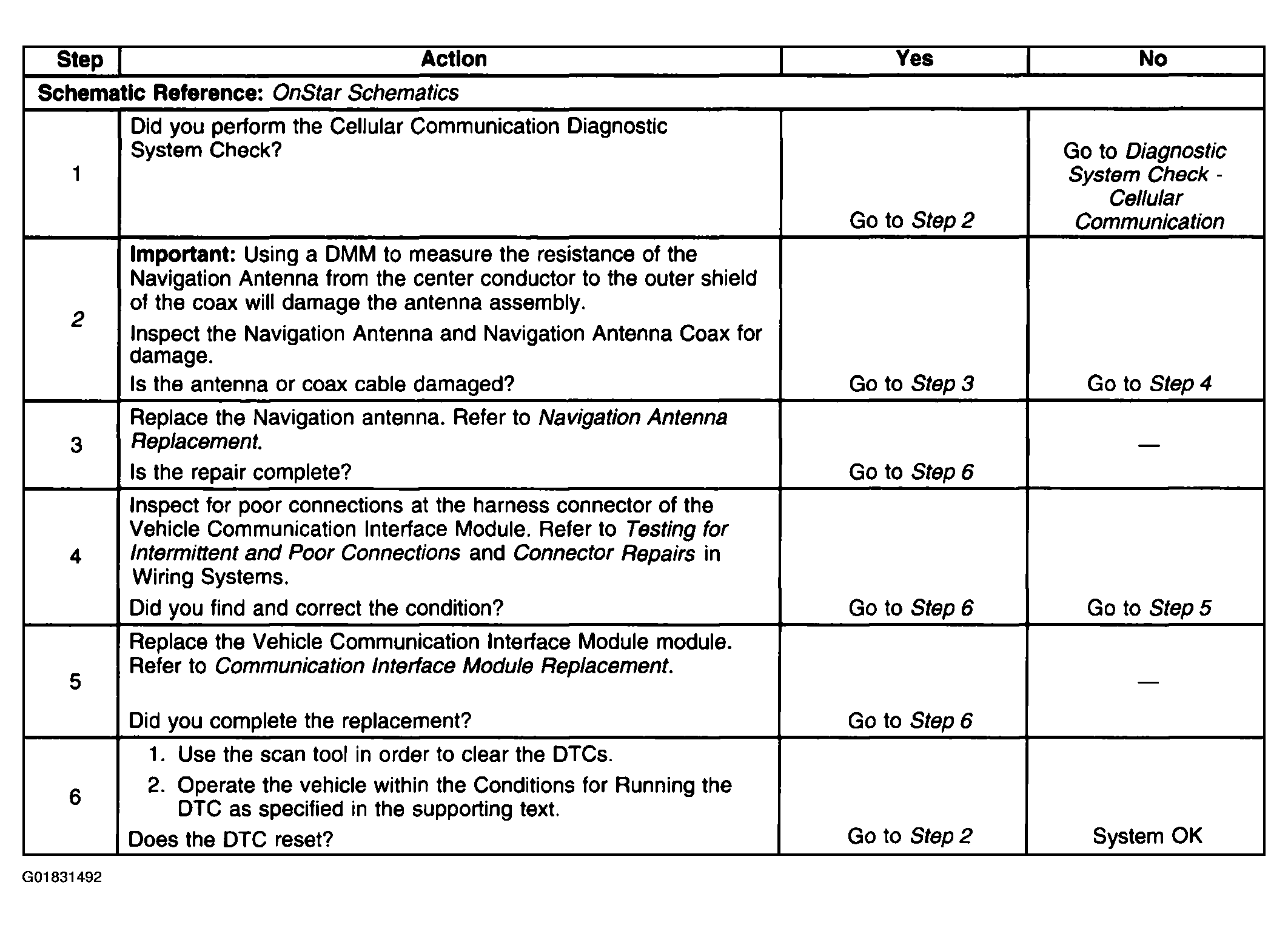

    Fig 1: DTC B2483 Or B2484 Diagnostic Table
    G01831492Courtesy of GENERAL MOTORS CORP.
