Propshaft Speed Sensor Connector End View - RR Transfer Case

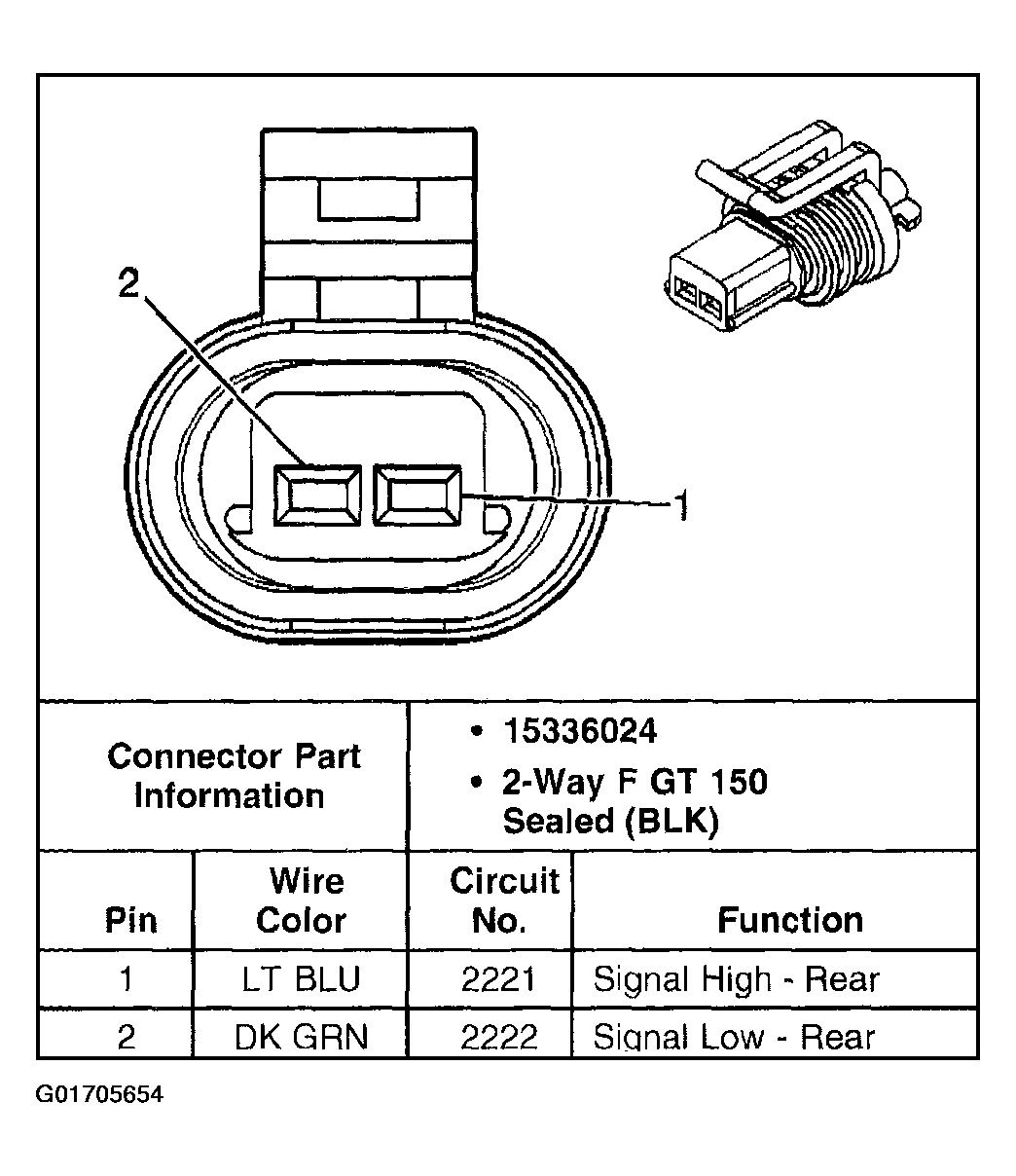

Fig 1: Propshaft Speed Sensor - RR Transfer Case
G01705654Courtesy of GENERAL MOTORS CORP.
