Connector Identification

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

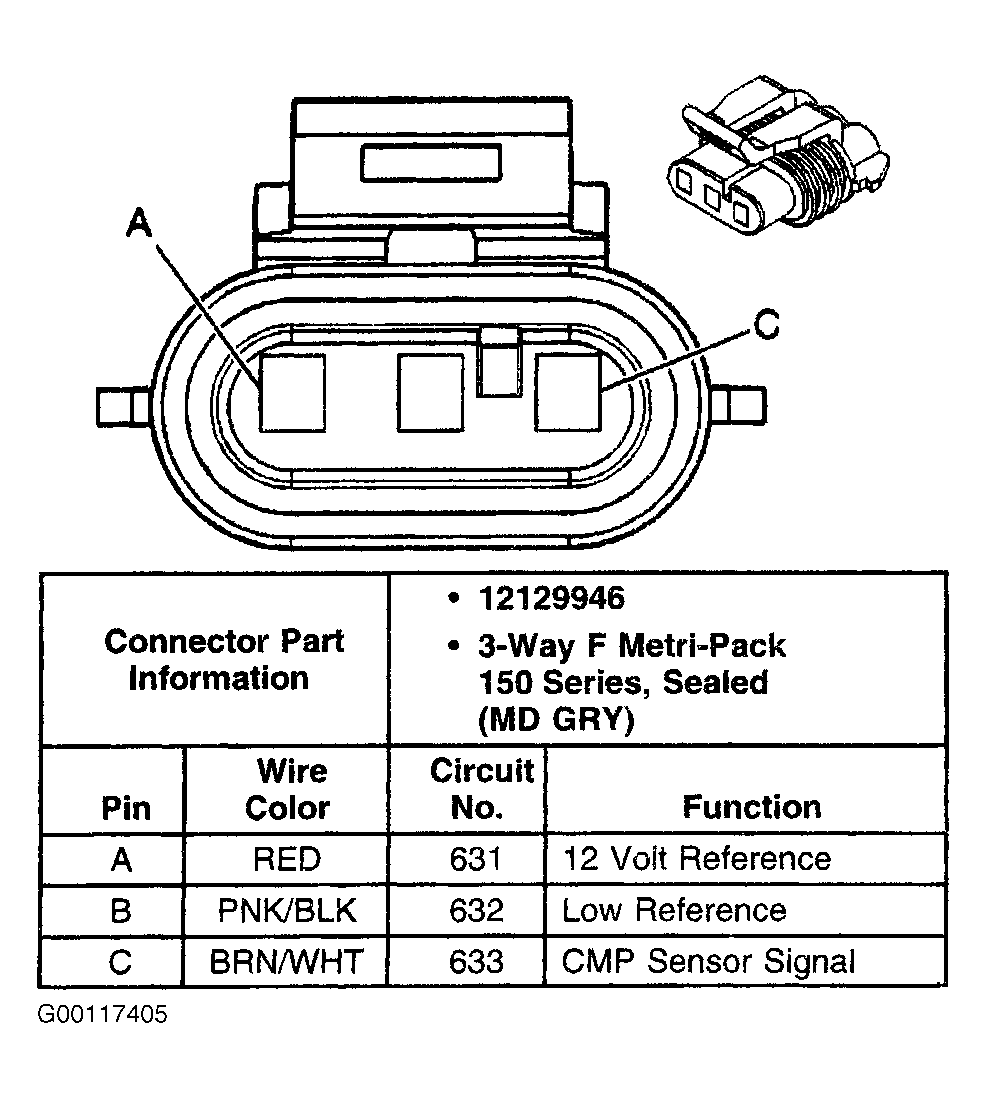

Fig 1: Identifying Camshaft Position Sensor Harness Connector Terminals

G00117405

Courtesy of GENERAL MOTORS CORP.

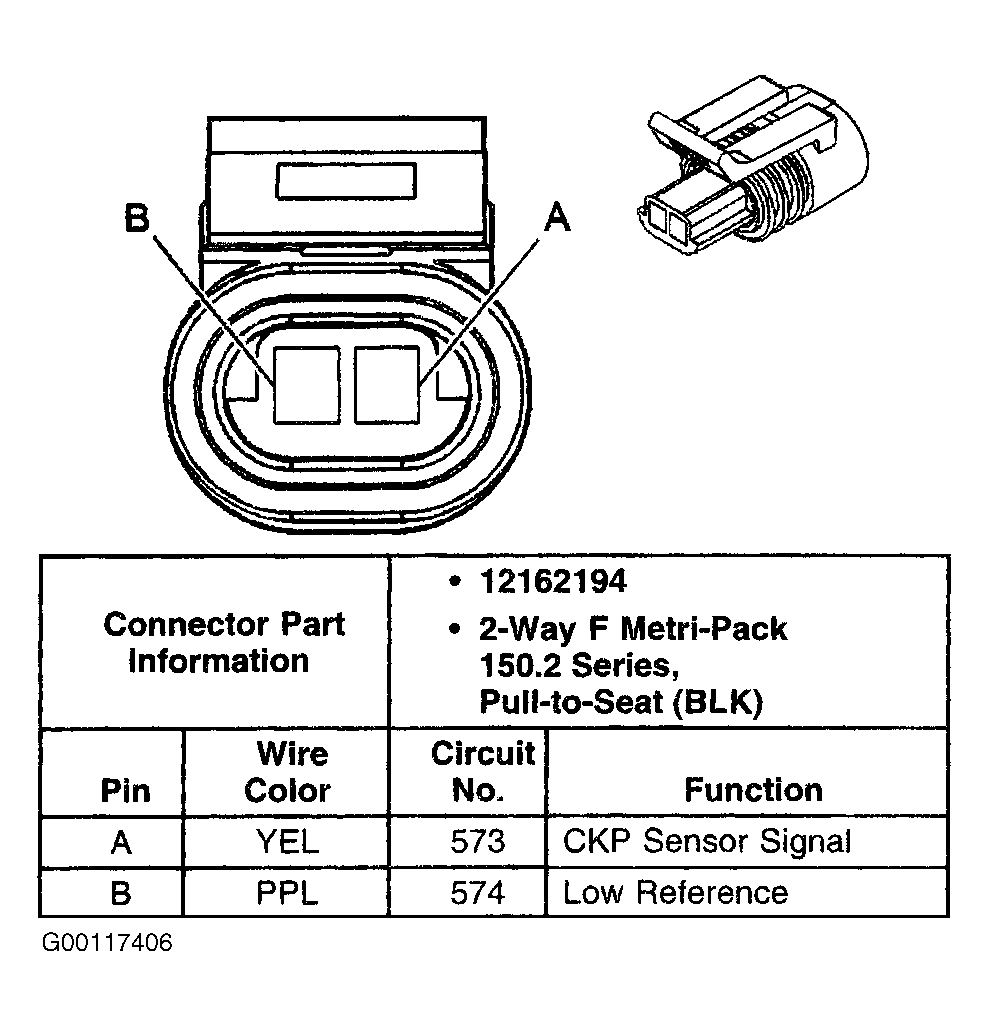

Fig 2: Identifying Crankshaft Position Sensor Harness Connector Terminals

G00117406

Courtesy of GENERAL MOTORS CORP.

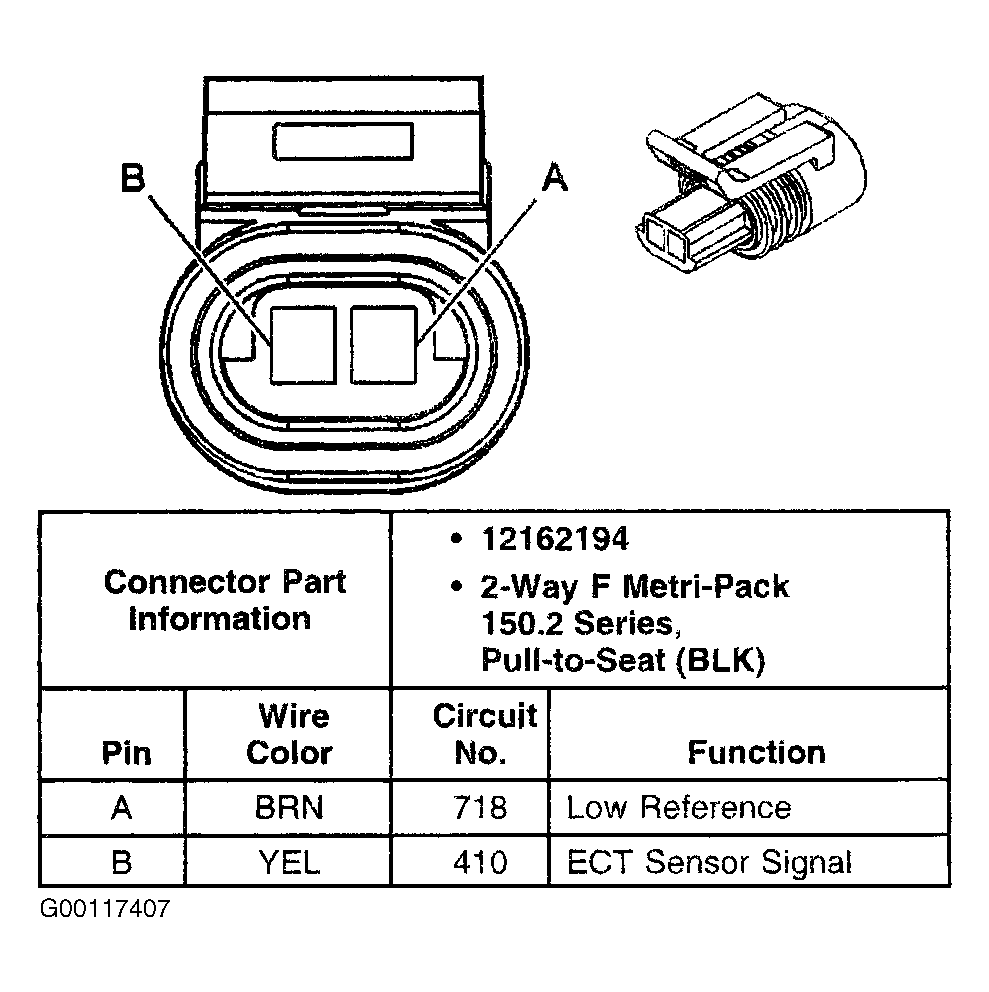

Fig 3: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals

G00117407

Courtesy of GENERAL MOTORS CORP.

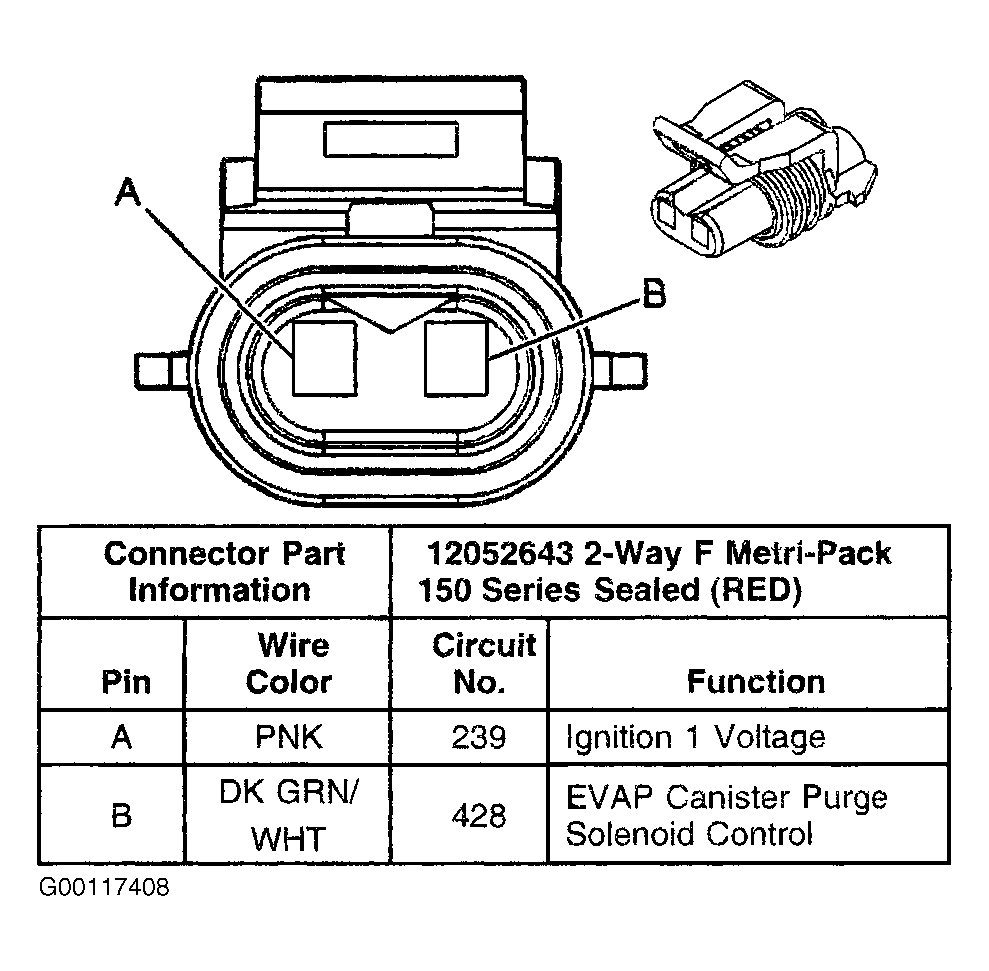

Fig 4: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals

G00117408

Courtesy of GENERAL MOTORS CORP.

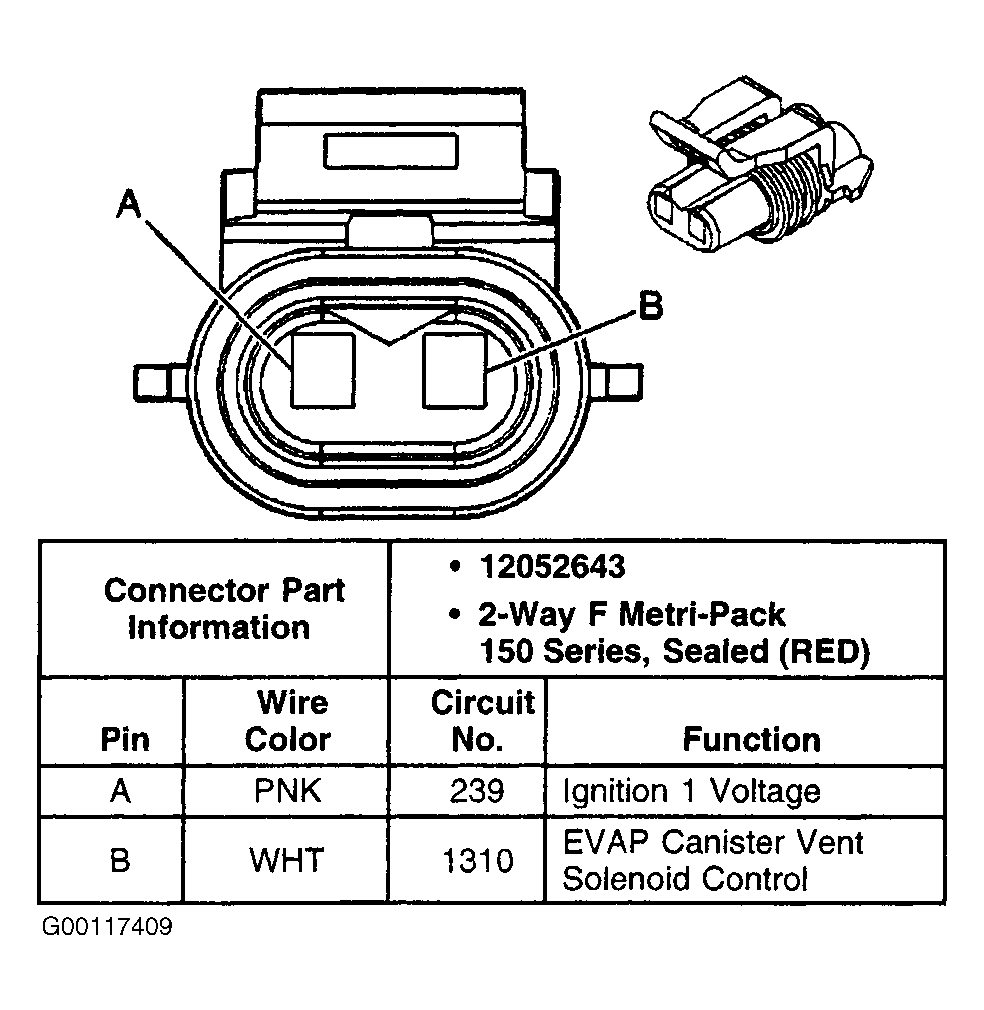

Fig 5: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals

G00117409

Courtesy of GENERAL MOTORS CORP.

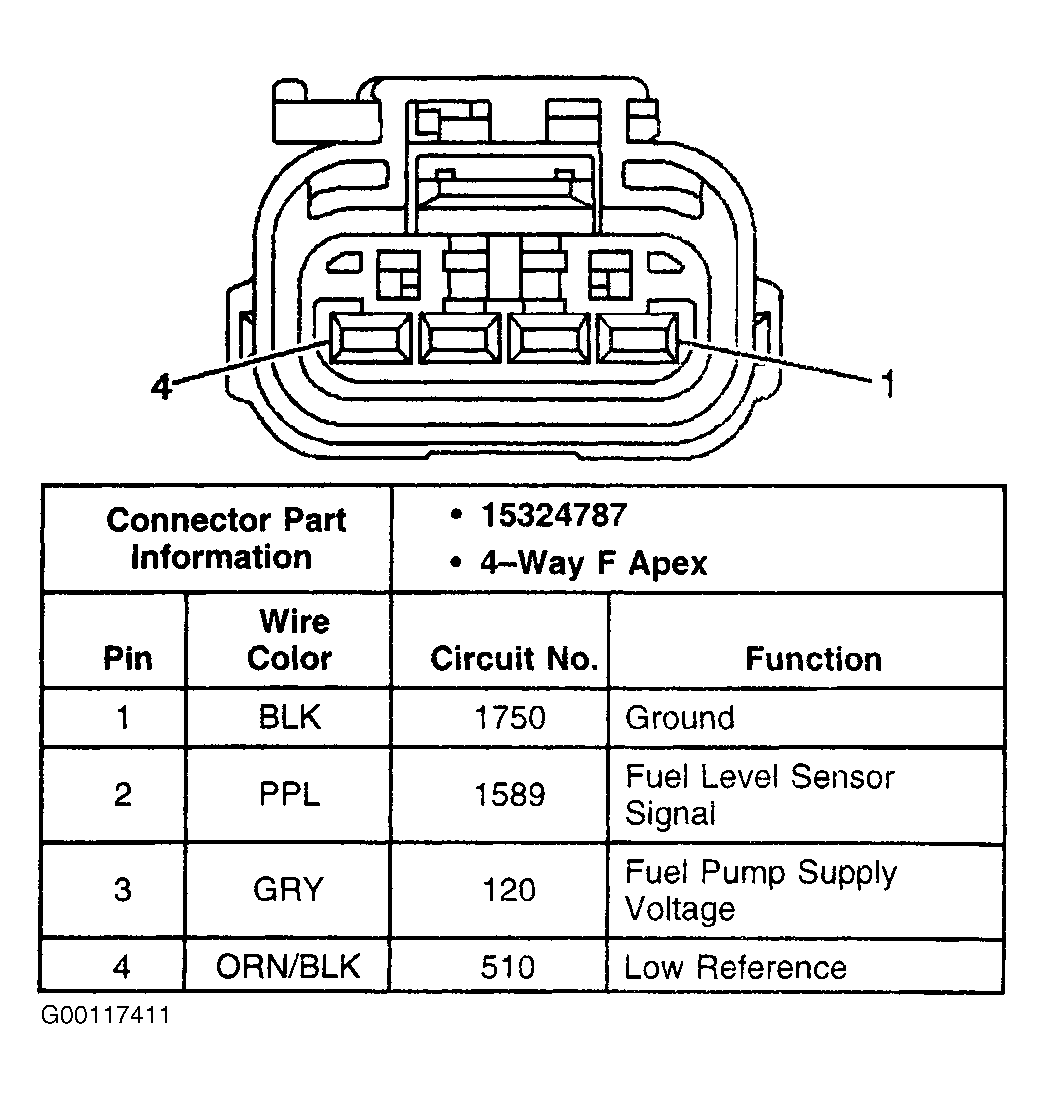

Fig 6: Identifying Fuel Pump & Sender Harness Connector Terminals

G00117411

Courtesy of GENERAL MOTORS CORP.

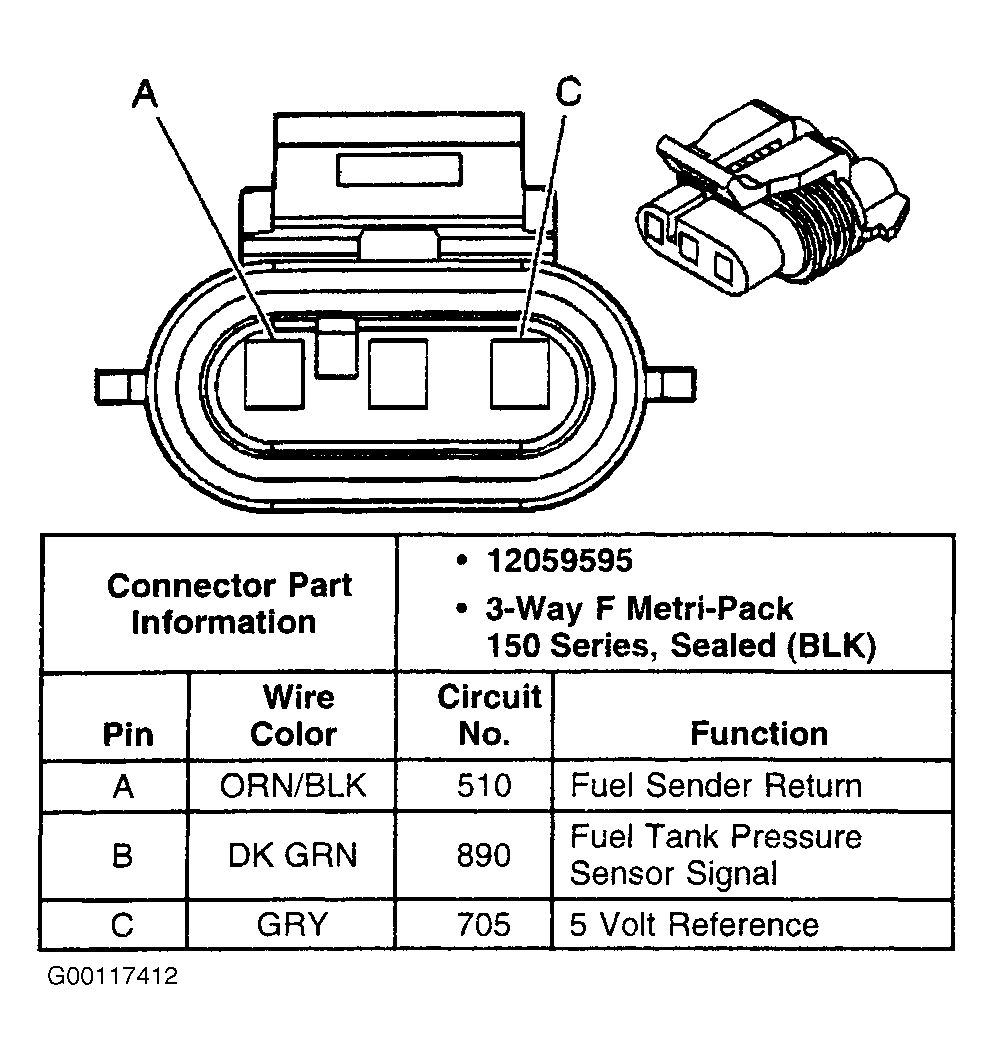

Fig 7: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals

G00117412

Courtesy of GENERAL MOTORS CORP.

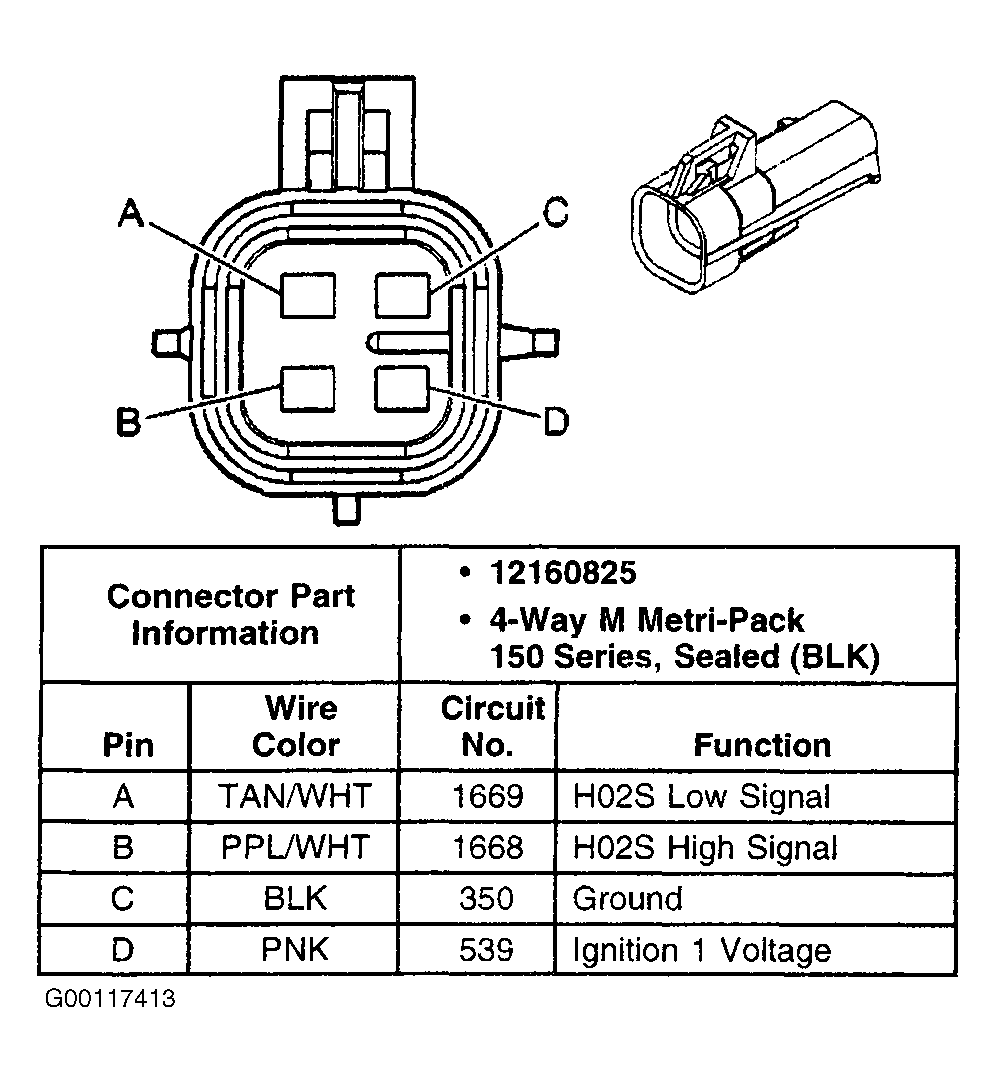

Fig 8: Identifying HO2S Bank 1; Sensor 2 Harness Connector Terminals

G00117413

Courtesy of GENERAL MOTORS CORP.

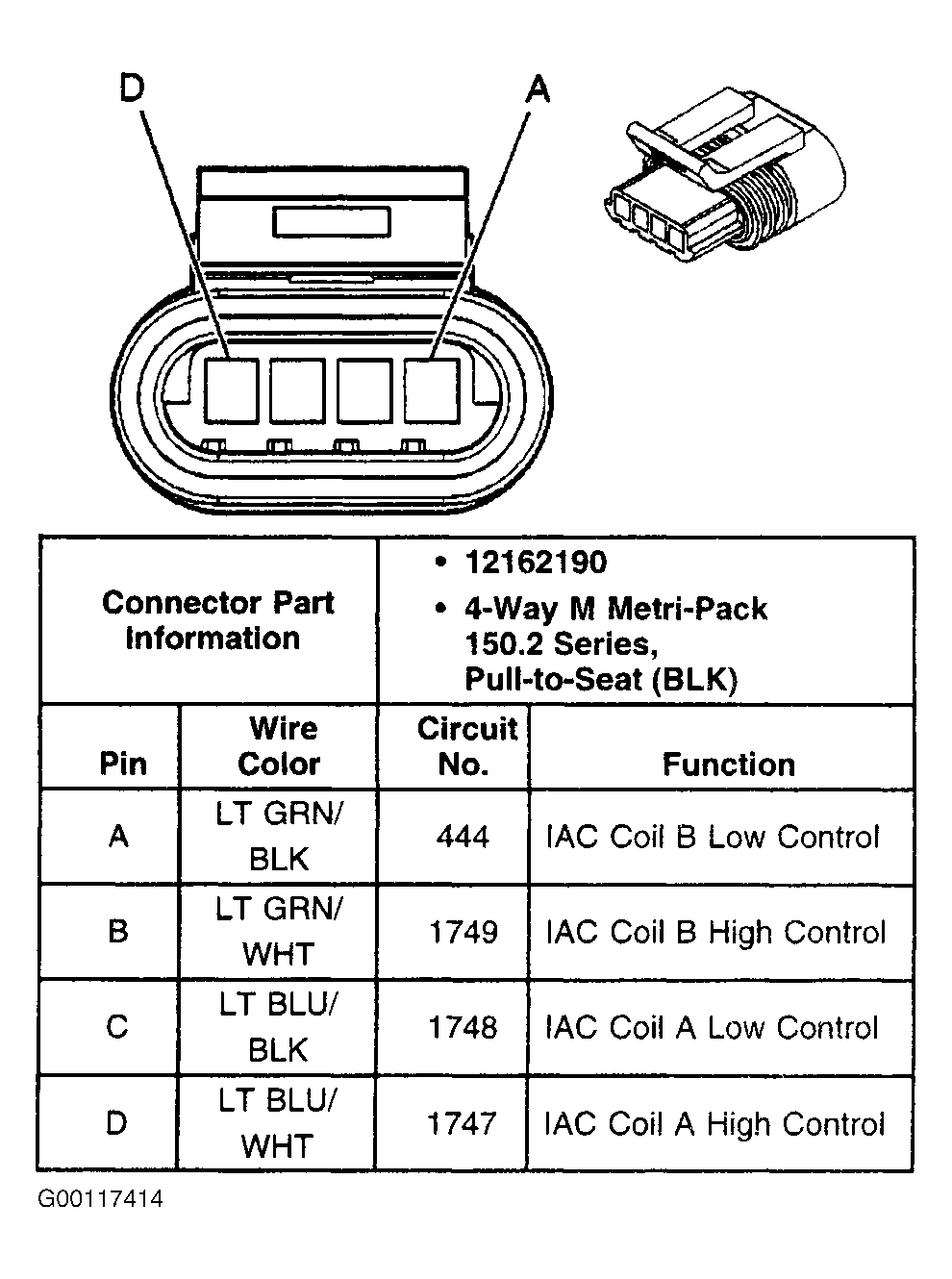

Fig 9: Identifying Idle Air Control Valve Harness Connector Terminals

G00117414

Courtesy of GENERAL MOTORS CORP.

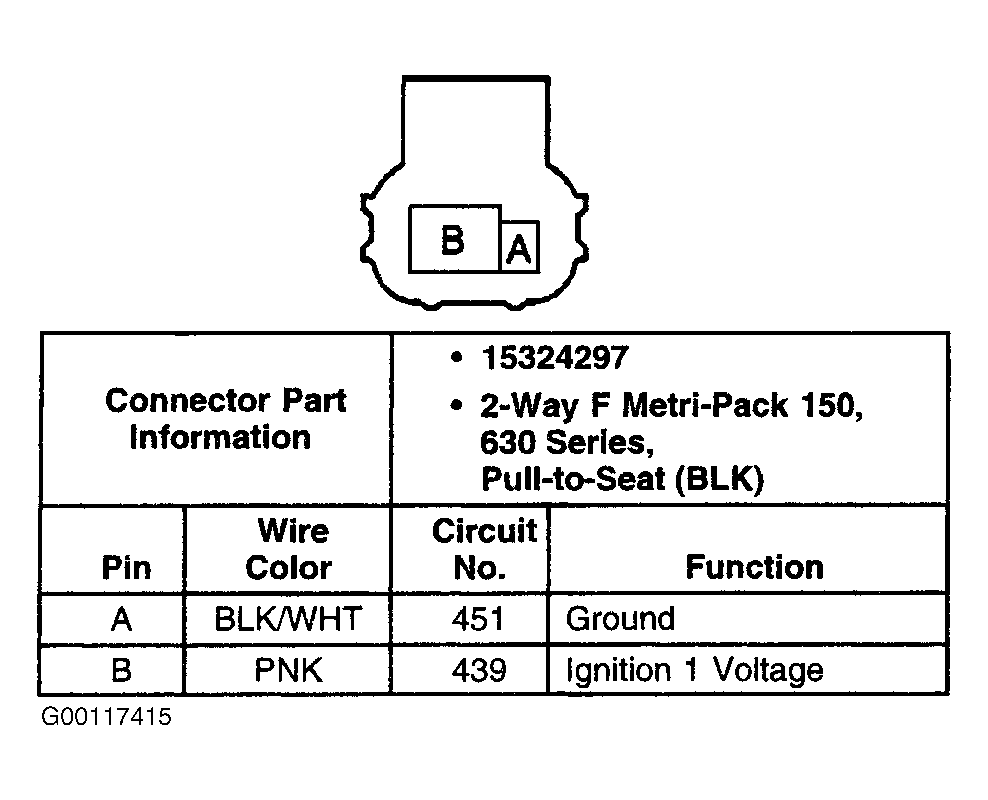

Fig 10: Identifying Ignition Control Module Harness Connector C1 Terminals

G00117415

Courtesy of GENERAL MOTORS CORP.

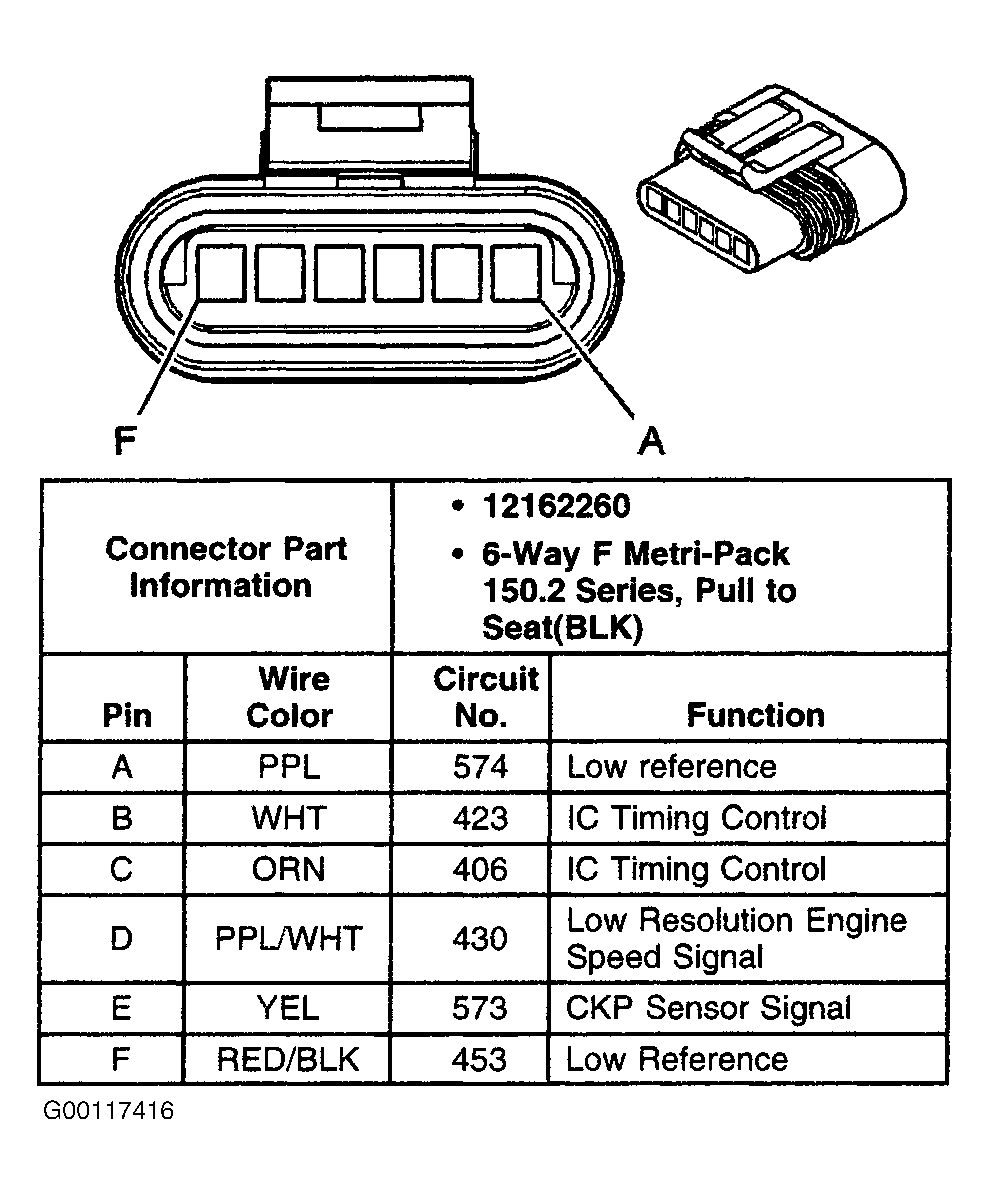

Fig 11: Identifying Ignition Control Module Harness Connector C2 Terminals

G00117416

Courtesy of GENERAL MOTORS CORP.

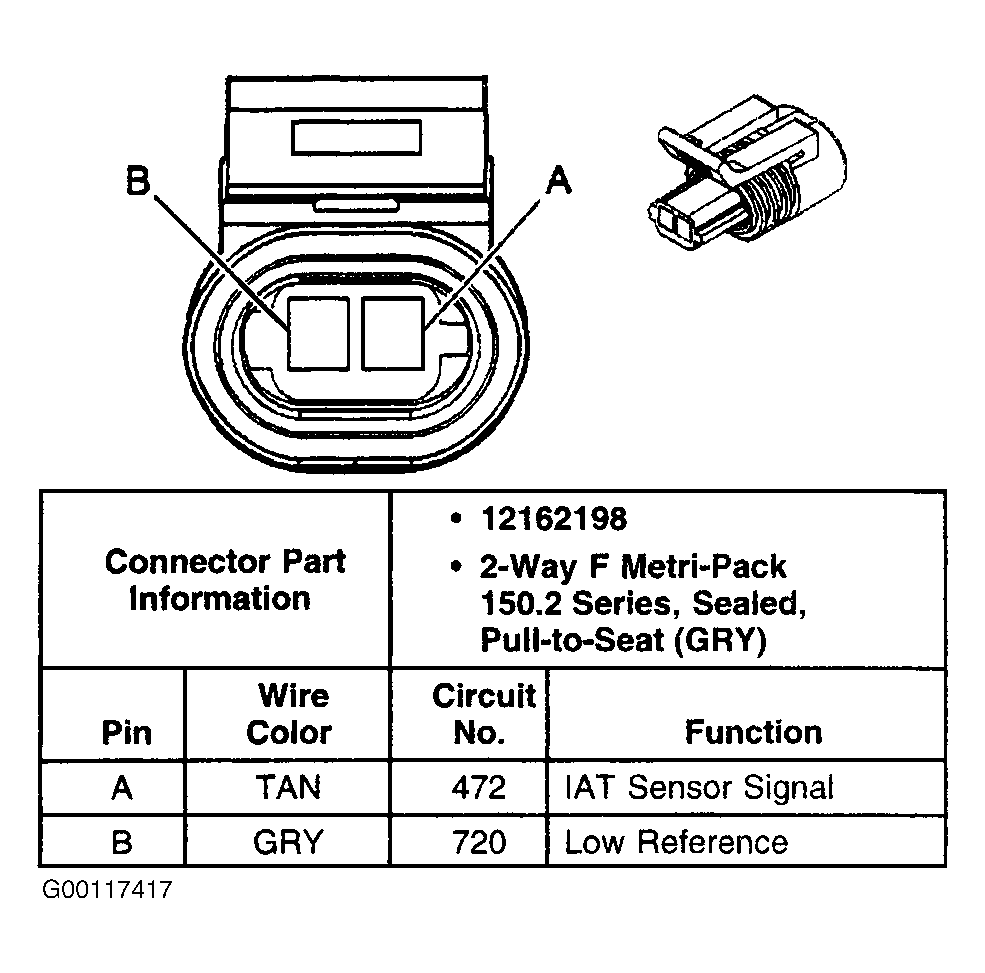

Fig 12: Identifying Intake Air Temperature Sensor Harness Connector Terminals

G00117417

Courtesy of GENERAL MOTORS CORP.

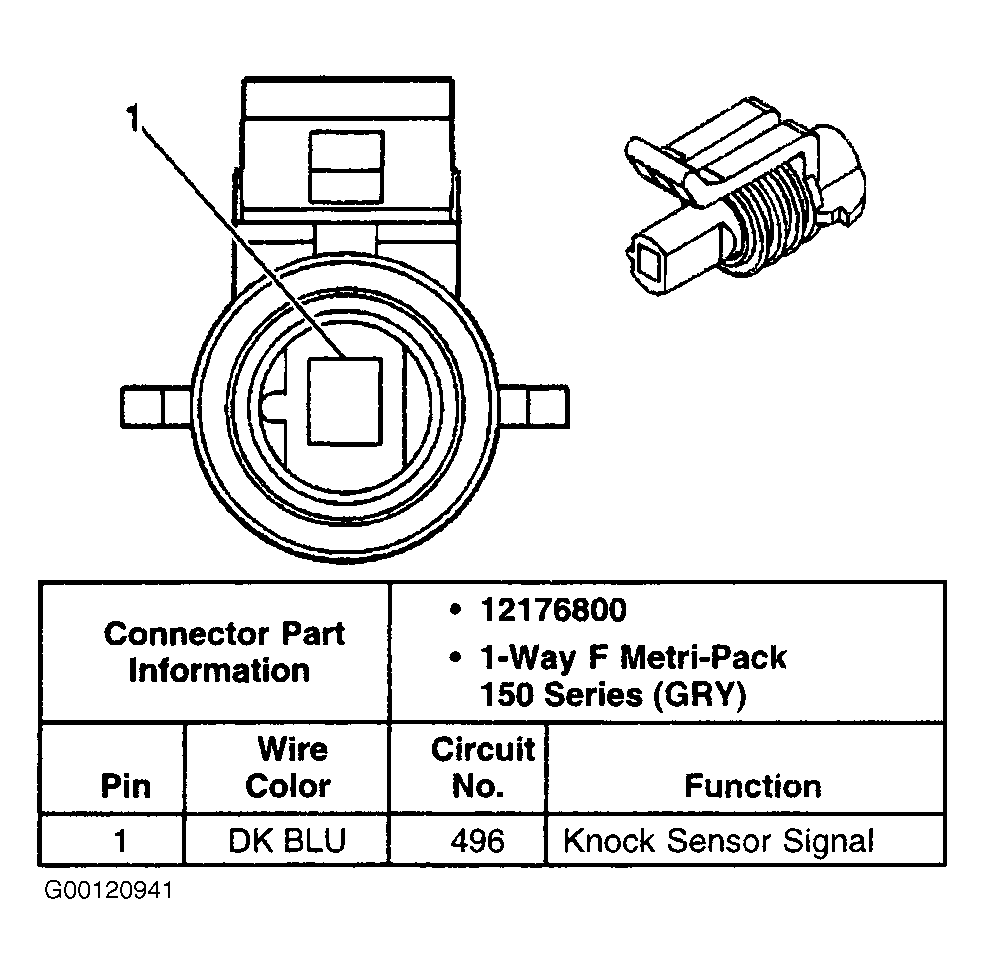

Fig 13: Identifying Knock Sensor Harness Connector Terminals

G00120941

Courtesy of GENERAL MOTORS CORP.

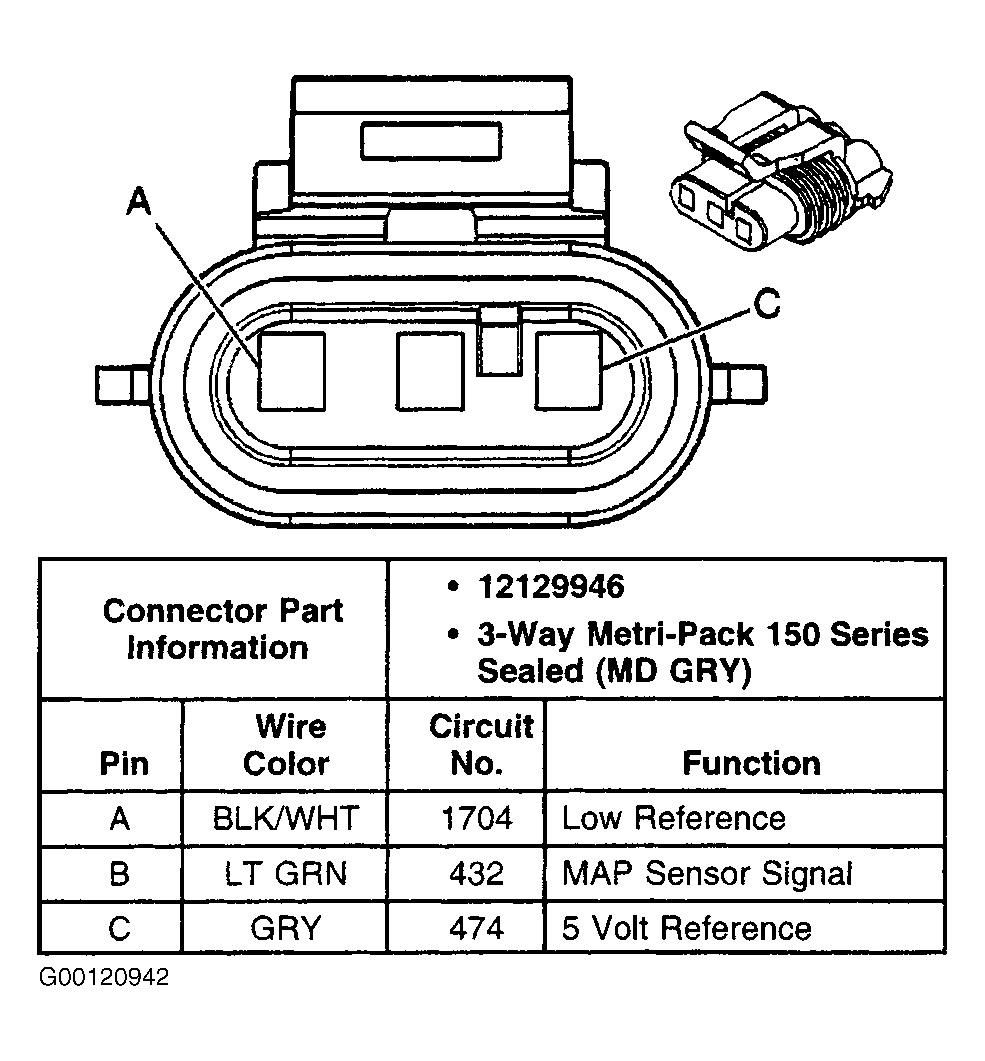

Fig 14: Identifying Manifold Absolute Pressure Harness Connector Terminals

G00120942

Courtesy of GENERAL MOTORS CORP.

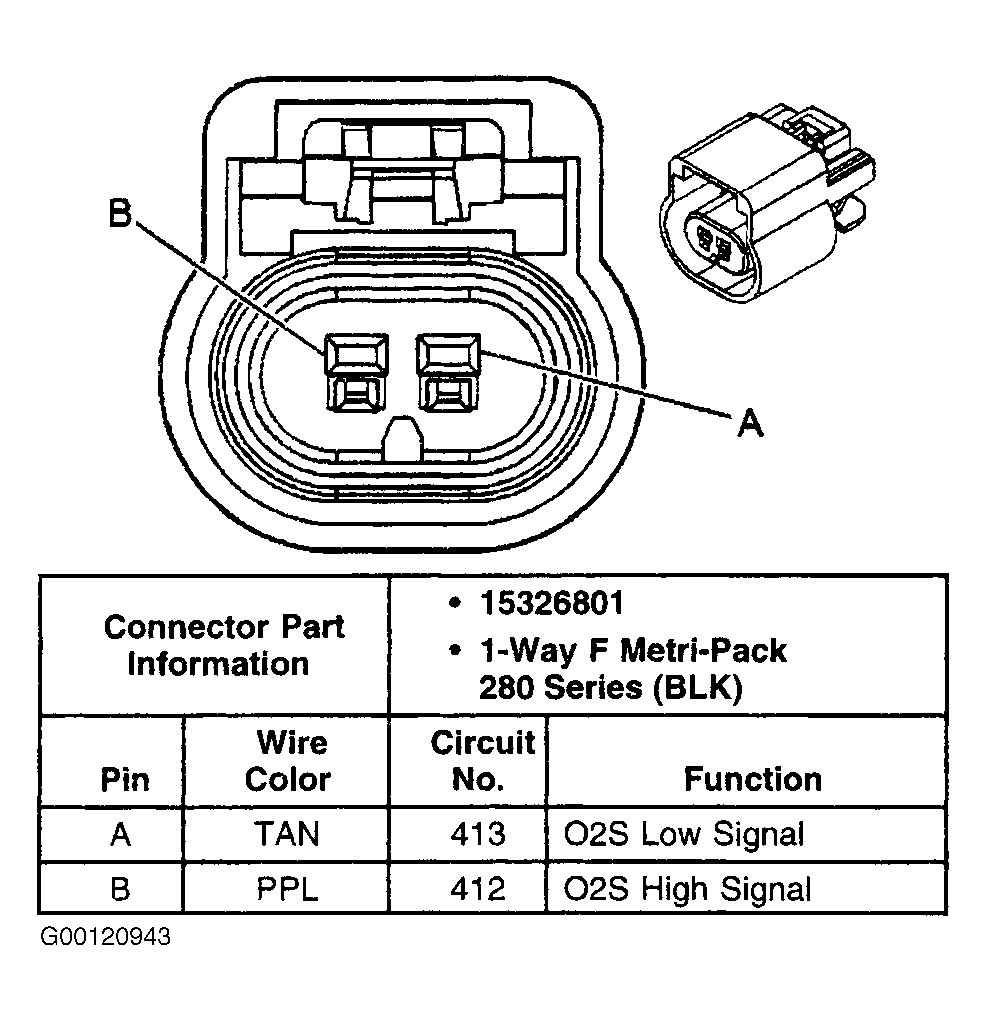

Fig 15: Identifying O2S Bank 1; Sensor 1 Harness Connector Terminals

G00120943

Courtesy of GENERAL MOTORS CORP.

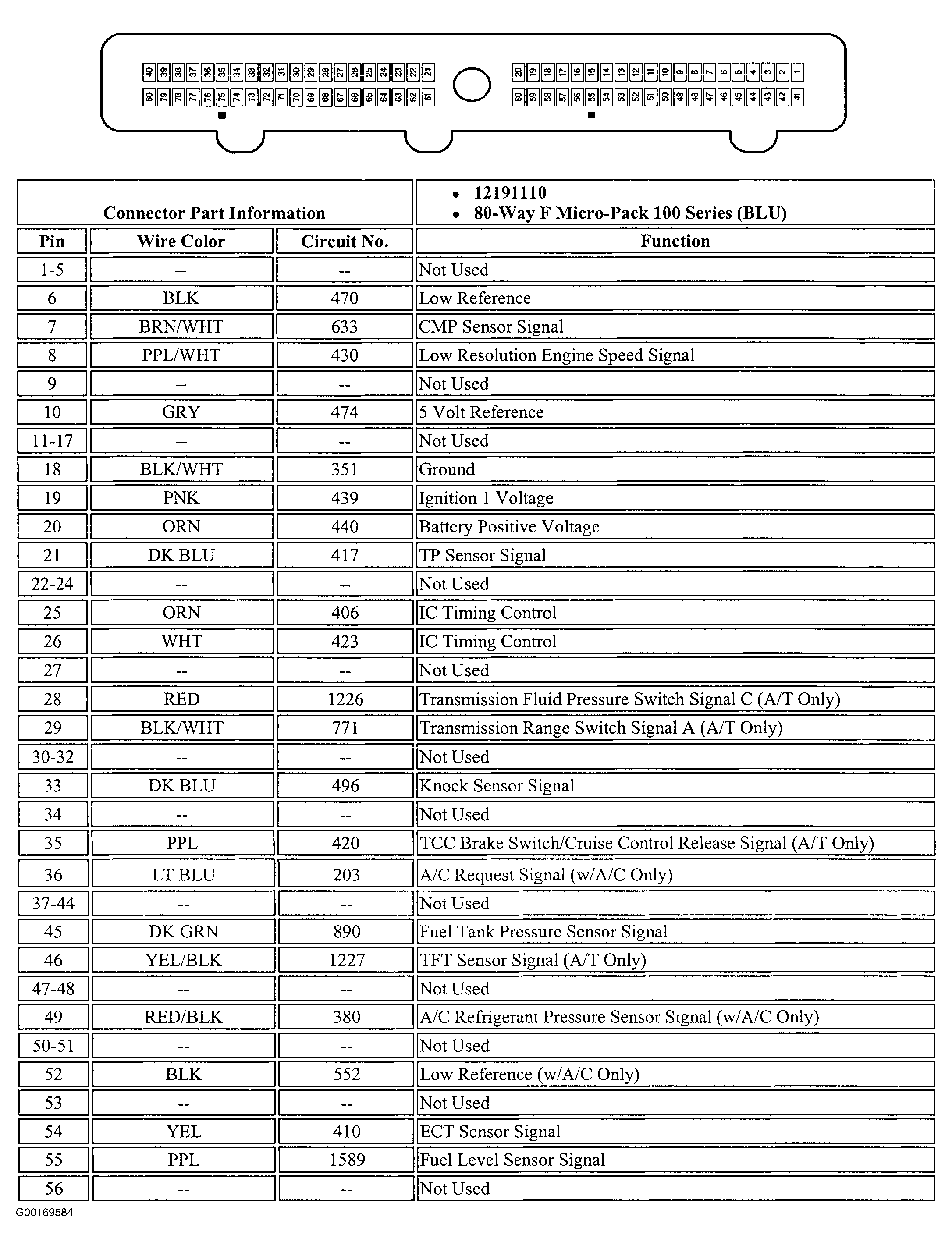

Fig 16: Identifying PCM Harness Connector C1 Terminals (1 Of 2)

G00169584

Courtesy of GENERAL MOTORS CORP.

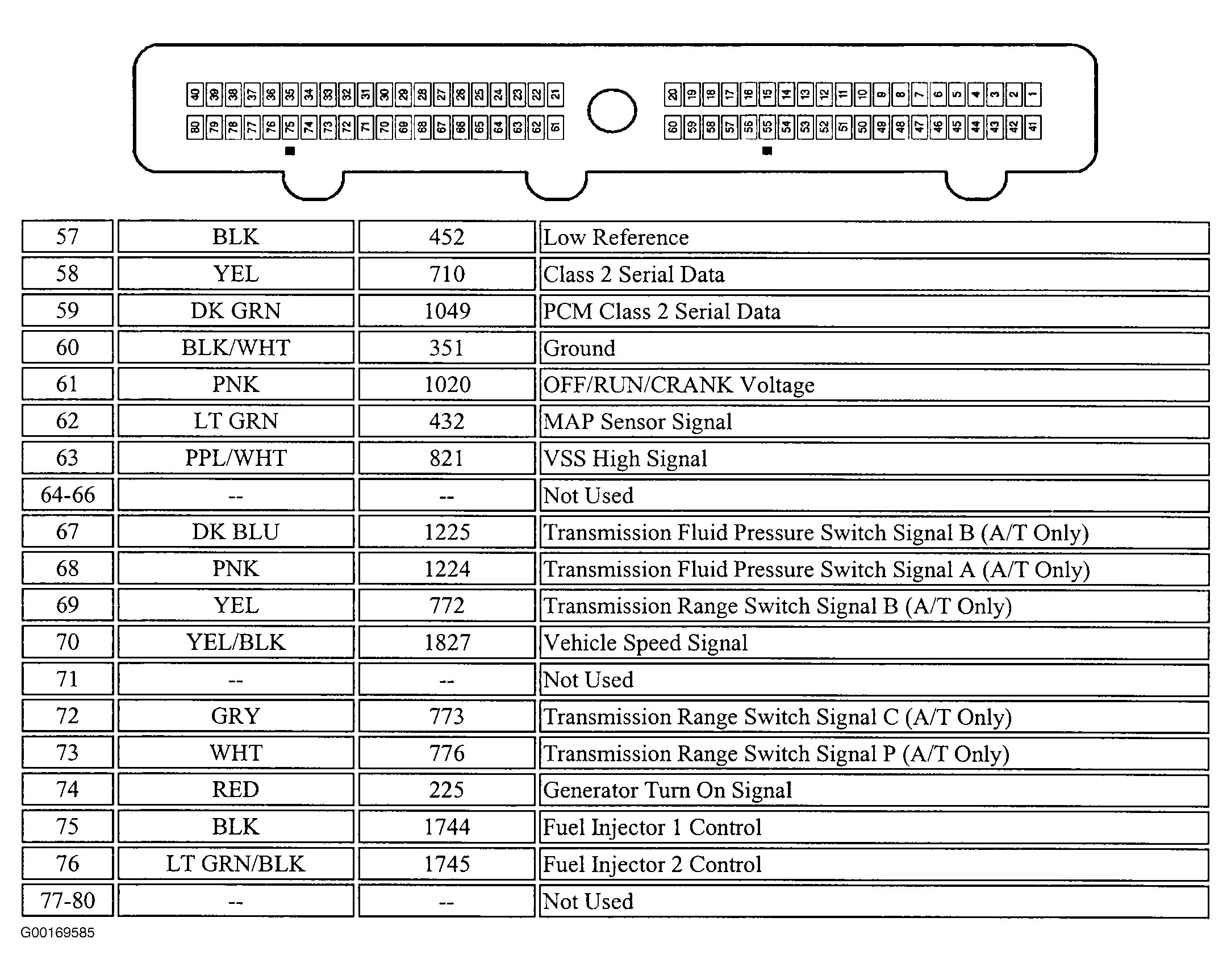

Fig 17: Identifying PCM Harness Connector C1 Terminals (2 Of 2)

G00169585

Courtesy of GENERAL MOTORS CORP.

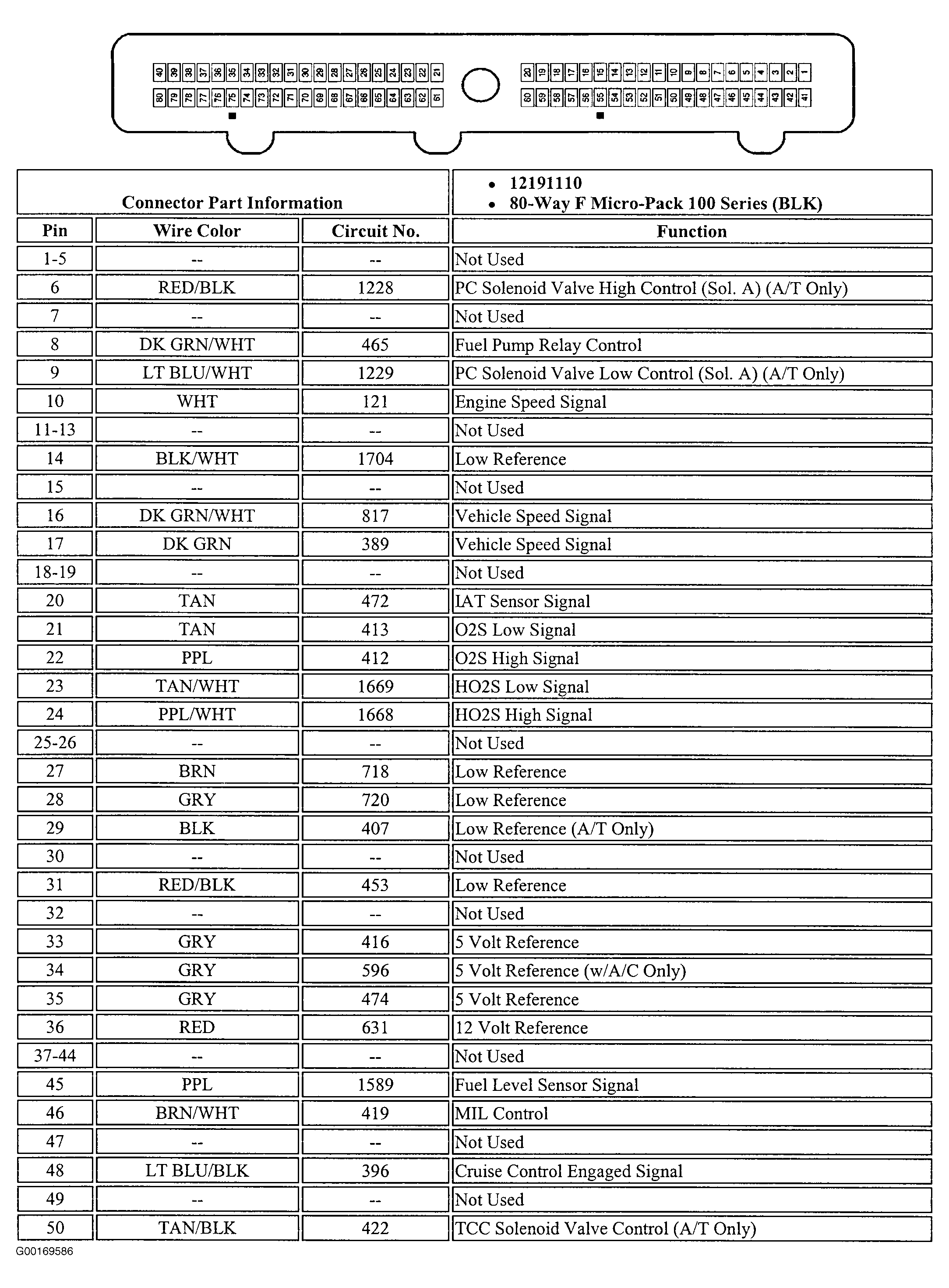

Fig 18: Identifying PCM Harness Connector C2 Terminals (1 Of 2)

G00169586

Courtesy of GENERAL MOTORS CORP.

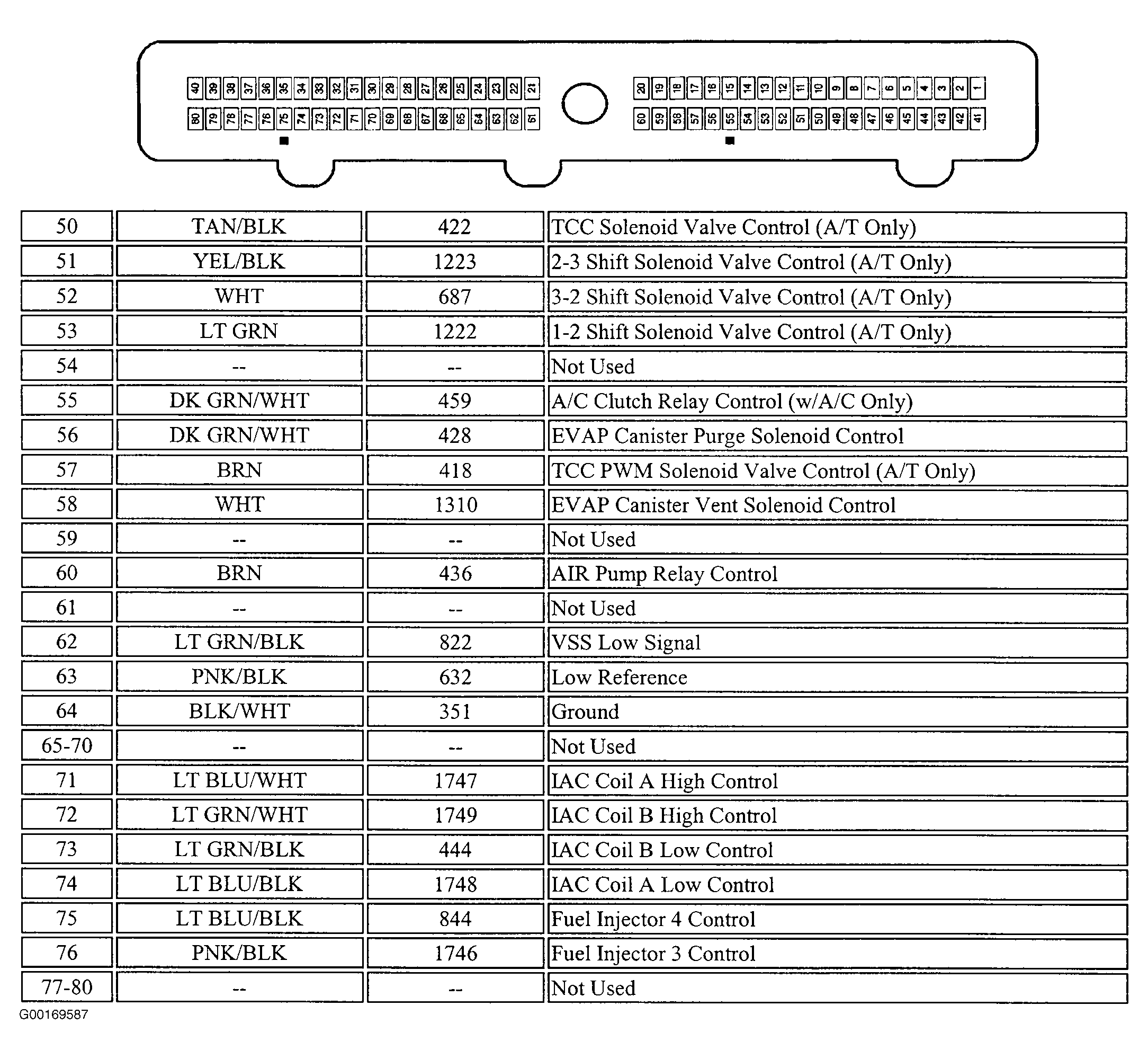

Fig 19: Identifying PCM Harness Connector C2 Terminals (2 Of 2)

G00169587

Courtesy of GENERAL MOTORS CORP.

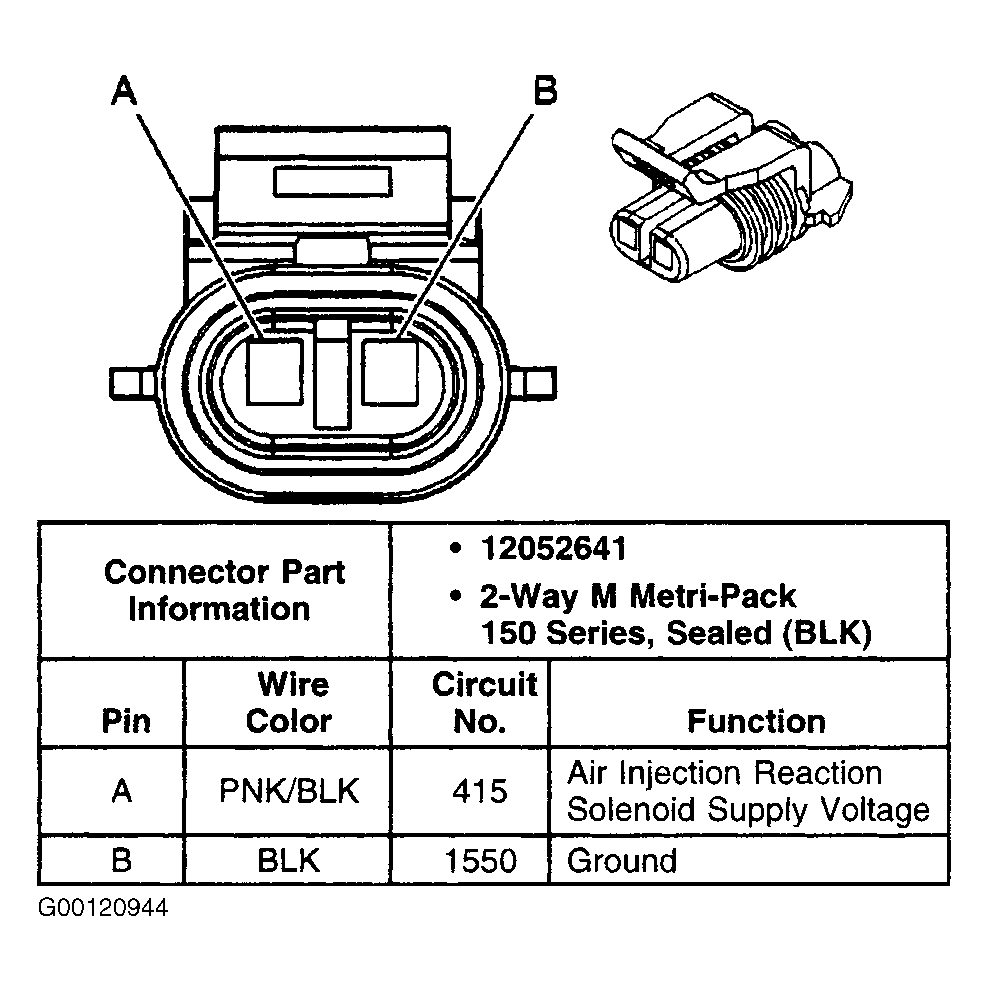

Fig 20: Identifying Secondary Air Injection Pump Harness Connector C1 Terminals

G00120944

Courtesy of GENERAL MOTORS CORP.

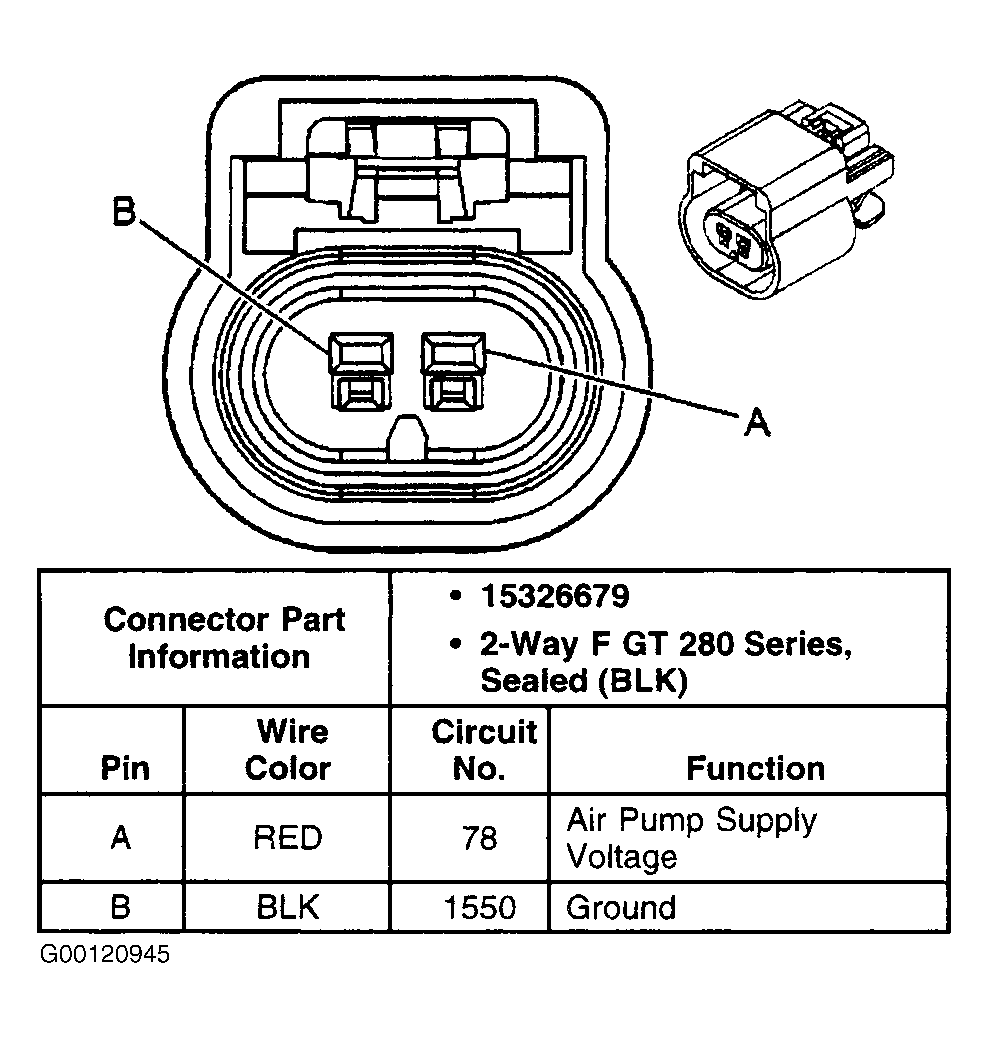

Fig 21: Identifying Secondary Air Injection Pump Harness Connector C2 Terminals

G00120945

Courtesy of GENERAL MOTORS CORP.

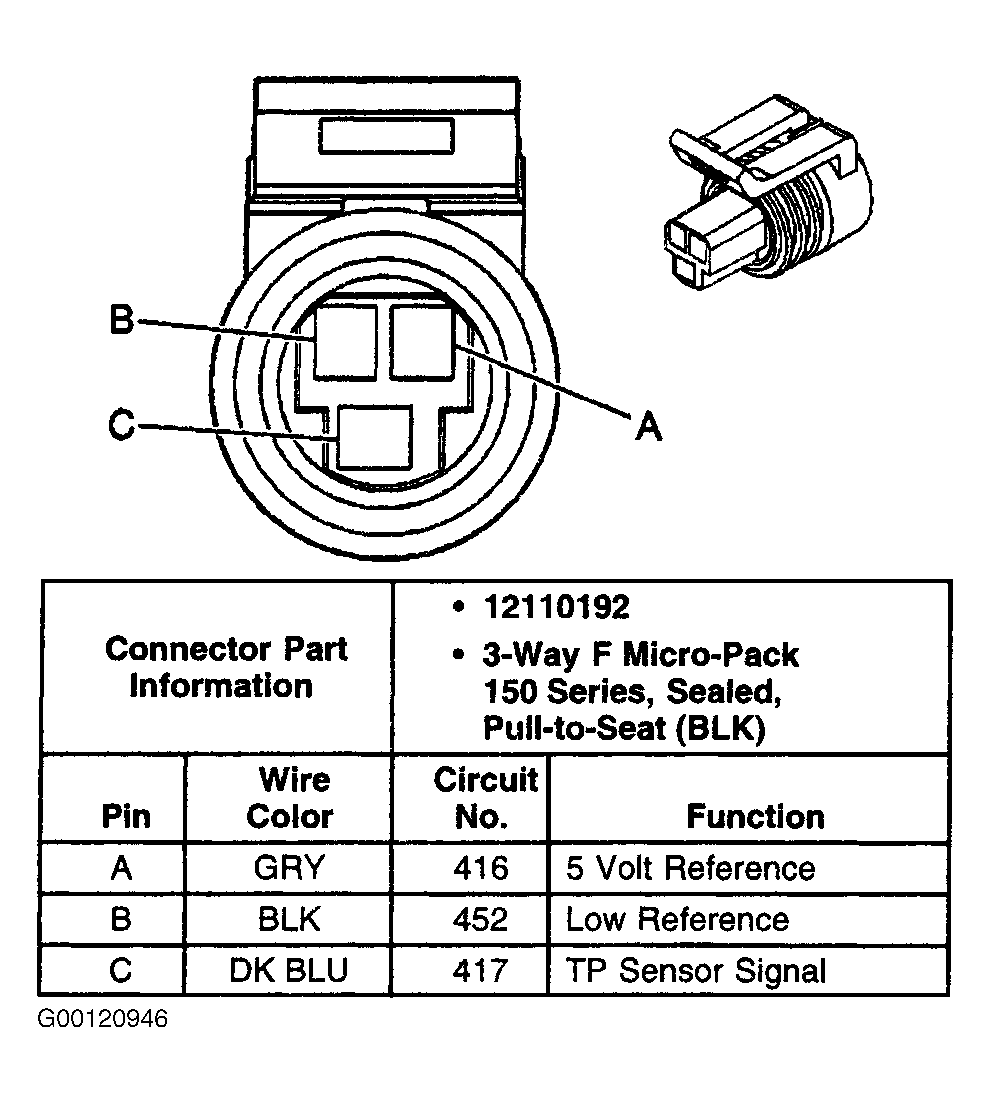

Fig 22: Identifying Throttle Position Sensor Harness Connector Terminals

G00120946

Courtesy of GENERAL MOTORS CORP.
