Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the console, install the noise cancellation microphone if equipped. Refer to MICROPHONE REPLACEMENT - RADIO VOLUME COMPENSATOR INTERIOR in Roof.
  2. If replacing the console, install the power sunroof switch if equipped. Refer to SUNROOF SWITCH REPLACEMENT in Roof.
  3. If replacing the console, install the personal message player/recorder if equipped. Refer to PERSONAL MESSAGE PLAYER/RECORDER REPLACEMENT in Entertainment.
  4. If replacing the console, install the OnStar® microphone if equipped. Refer to ONSTAR MICROPHONE REPLACEMENT in Cellular Communication.
  5. If replacing the console, install the garage door opener if equipped. Refer to GARAGE DOOR OPENER REPLACEMENT in Garage Door Opener.
  6. Position the console to the roof panel.

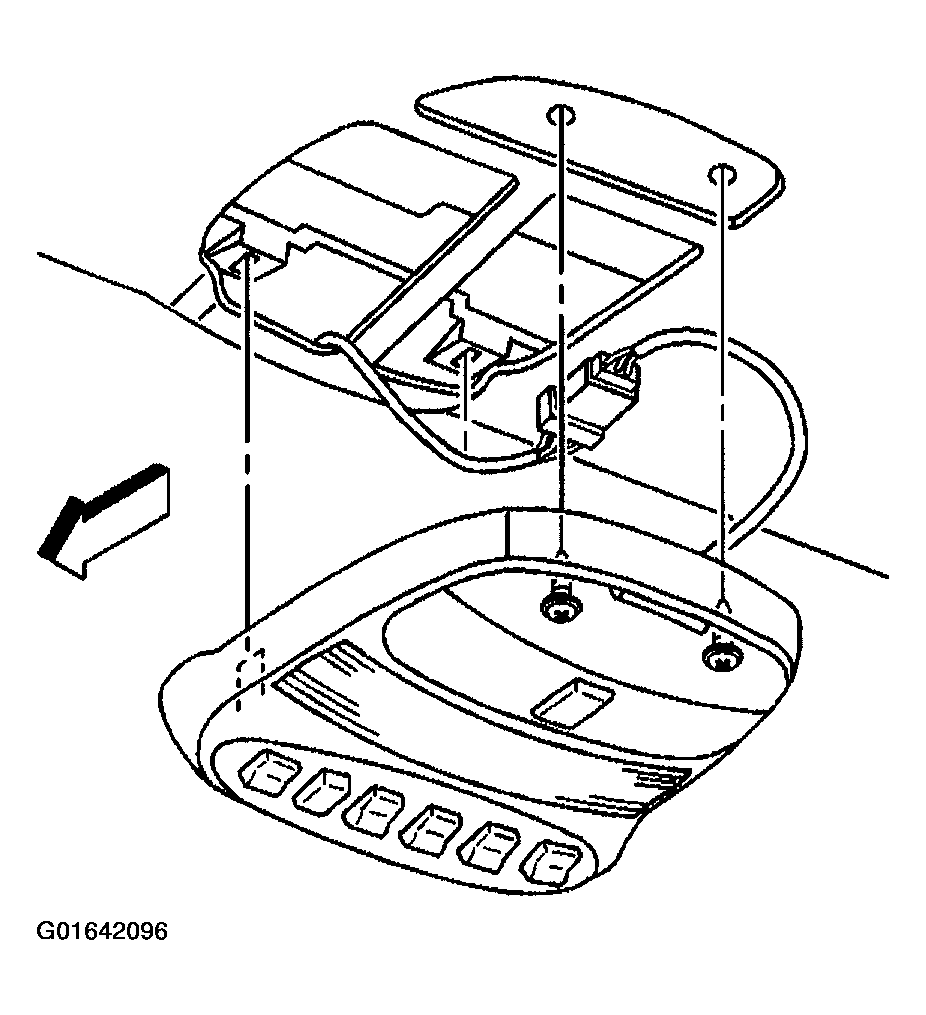

    7. Fig 1: Front Overhead Console
    G01642096Courtesy of GENERAL MOTORS CORP.
  7. Connect the electrical connectors as needed.
  8. Seat the front retaining tabs.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  9. Install the 2 screws retaining the console to the roof panel.

    Tighten

    Tighten the screws to 1.2 N.m (10 lb in).
