Power Window Schematics

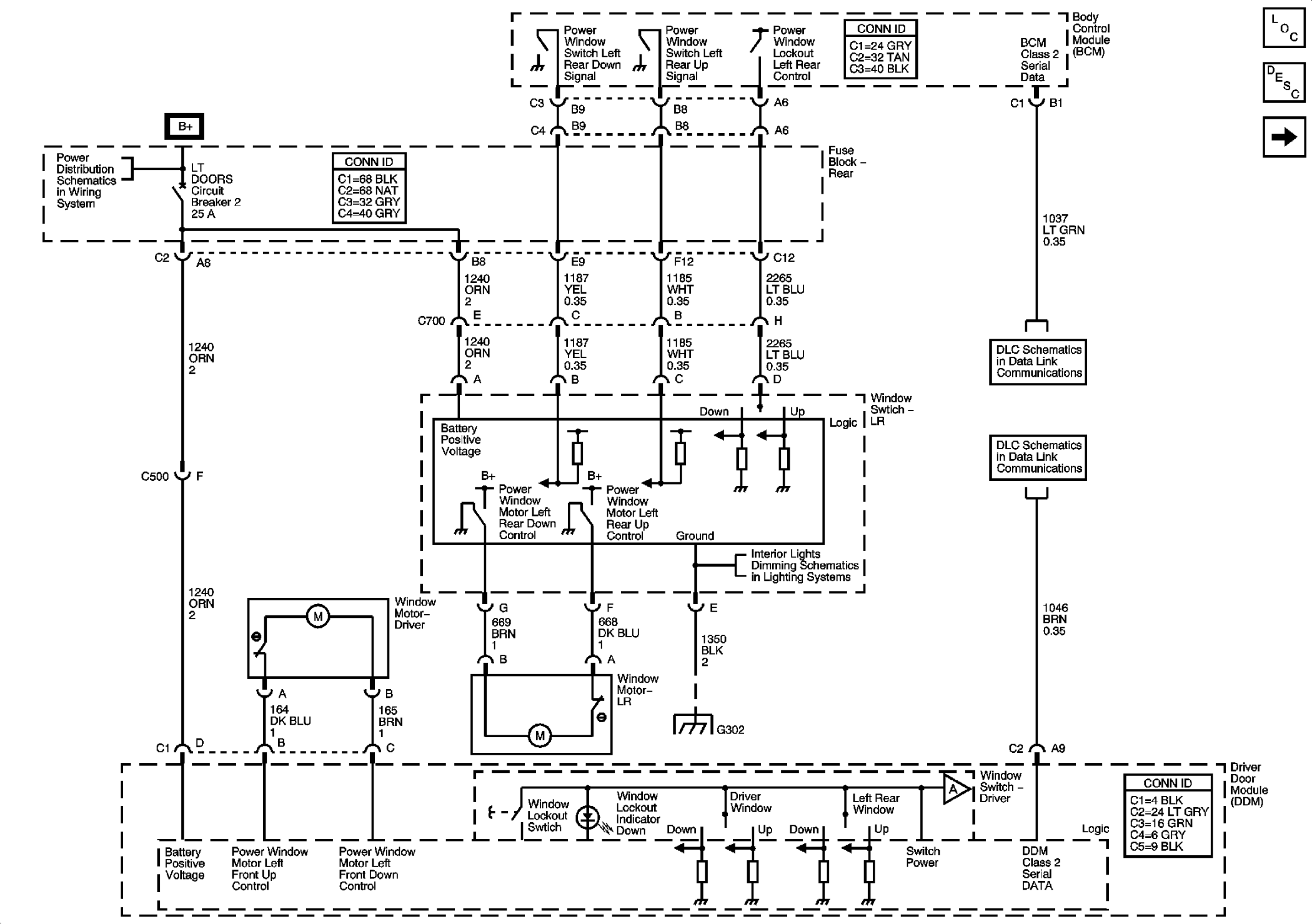

Fig 1: Power Window Schematics Left
GM743743Courtesy of GENERAL MOTORS CORP.

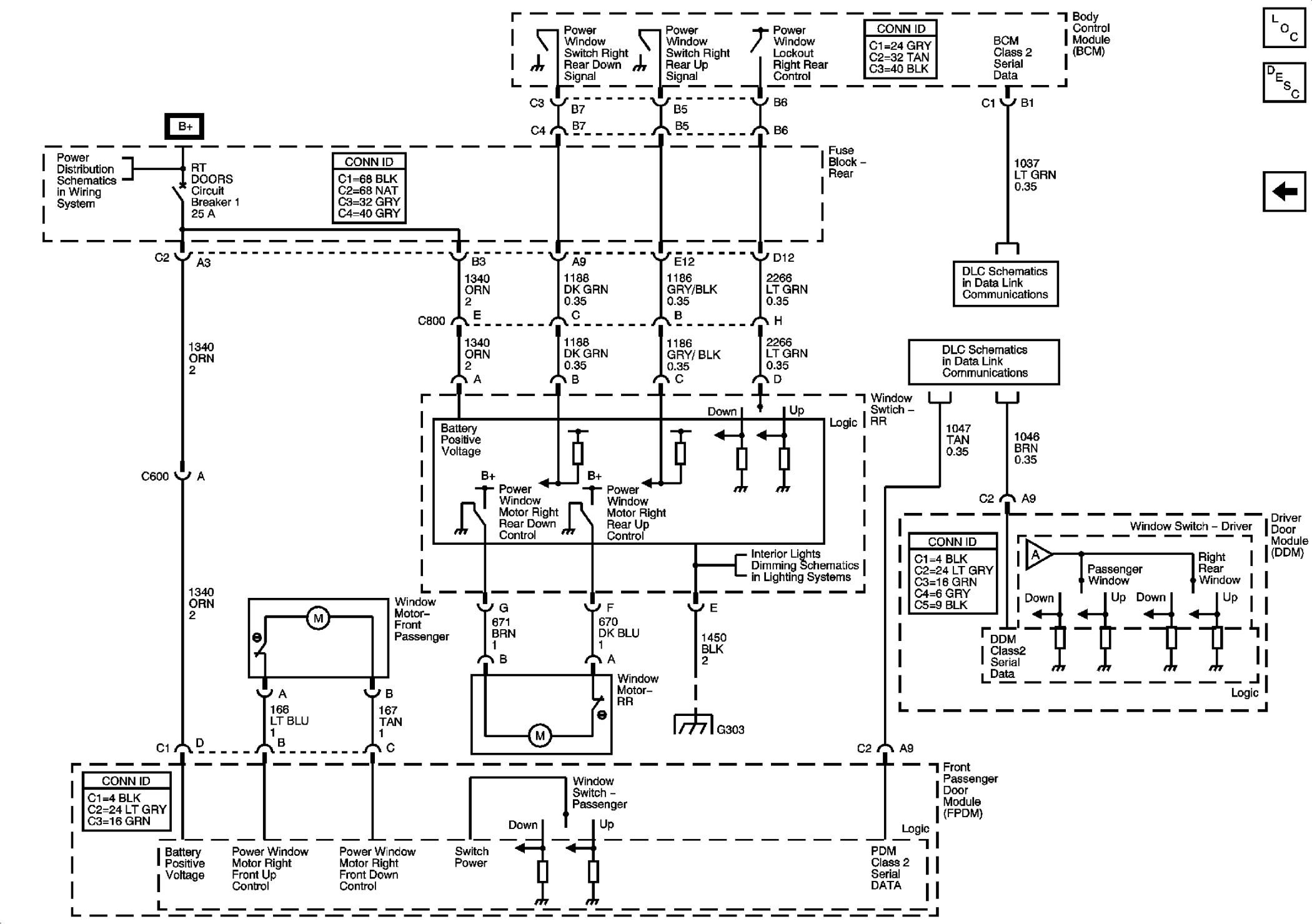

Fig 2: Power Window Schematics Right
GM890697Courtesy of GENERAL MOTORS CORP.
