Lumbar Support Schematics

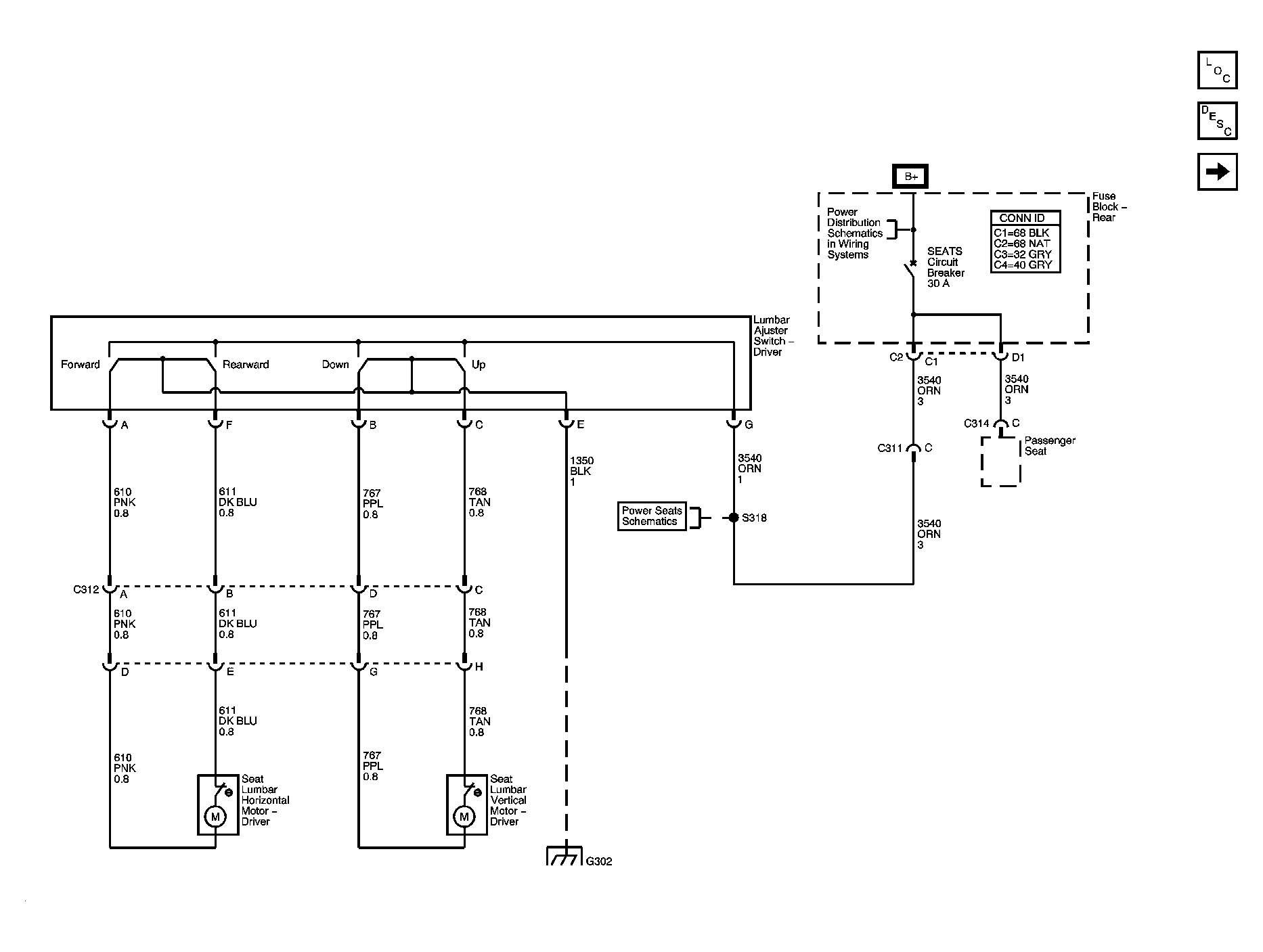

Fig 1: Driver Seat Controls Schematic - W/O Memory

Courtesy of GENERAL MOTORS CORP.

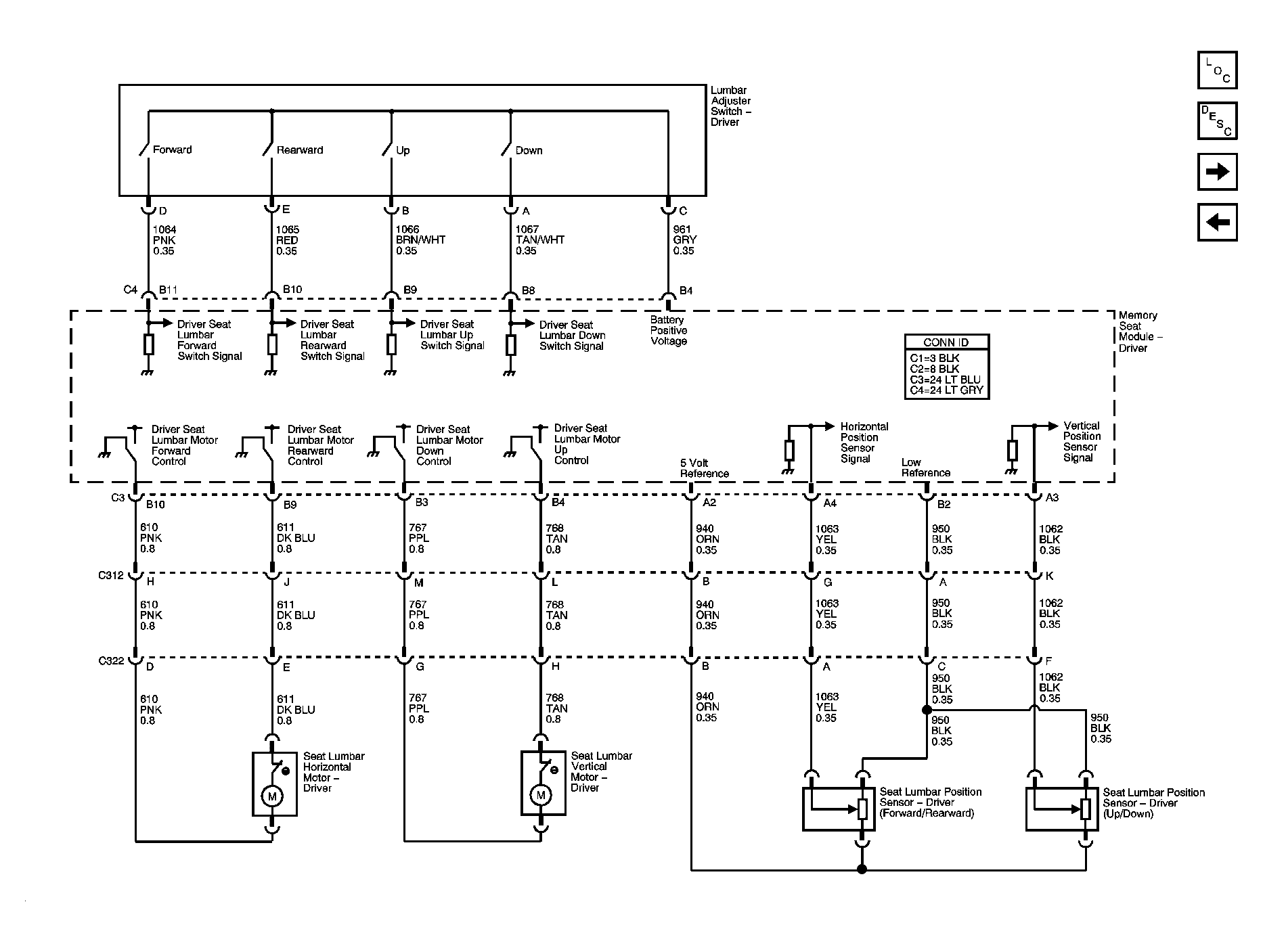

Fig 2: Driver Seat Controls Schematic - W/Memory

Courtesy of GENERAL MOTORS CORP.

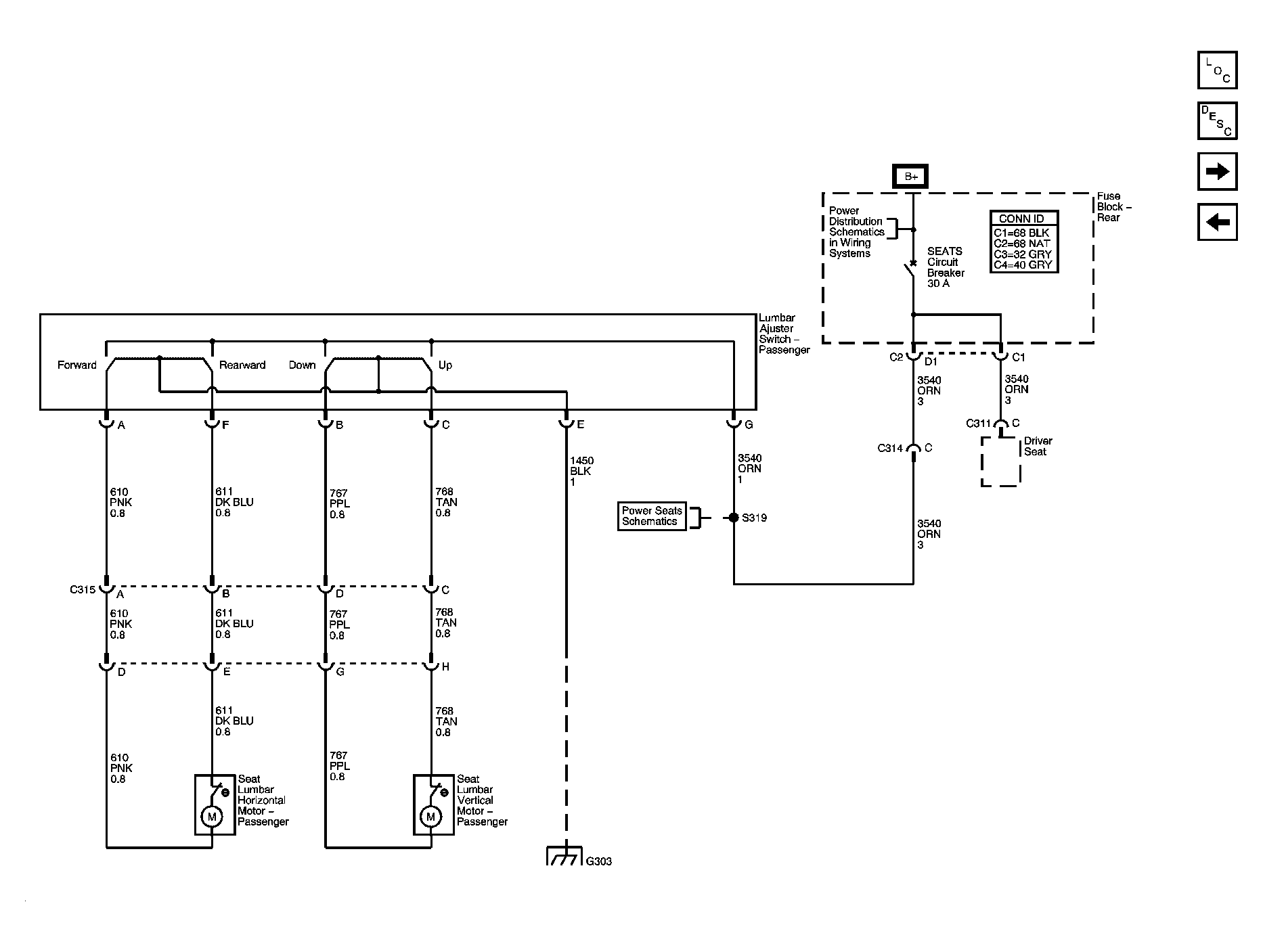

Fig 3: Passenger Controls W/O Heat Schematics

Courtesy of GENERAL MOTORS CORP.

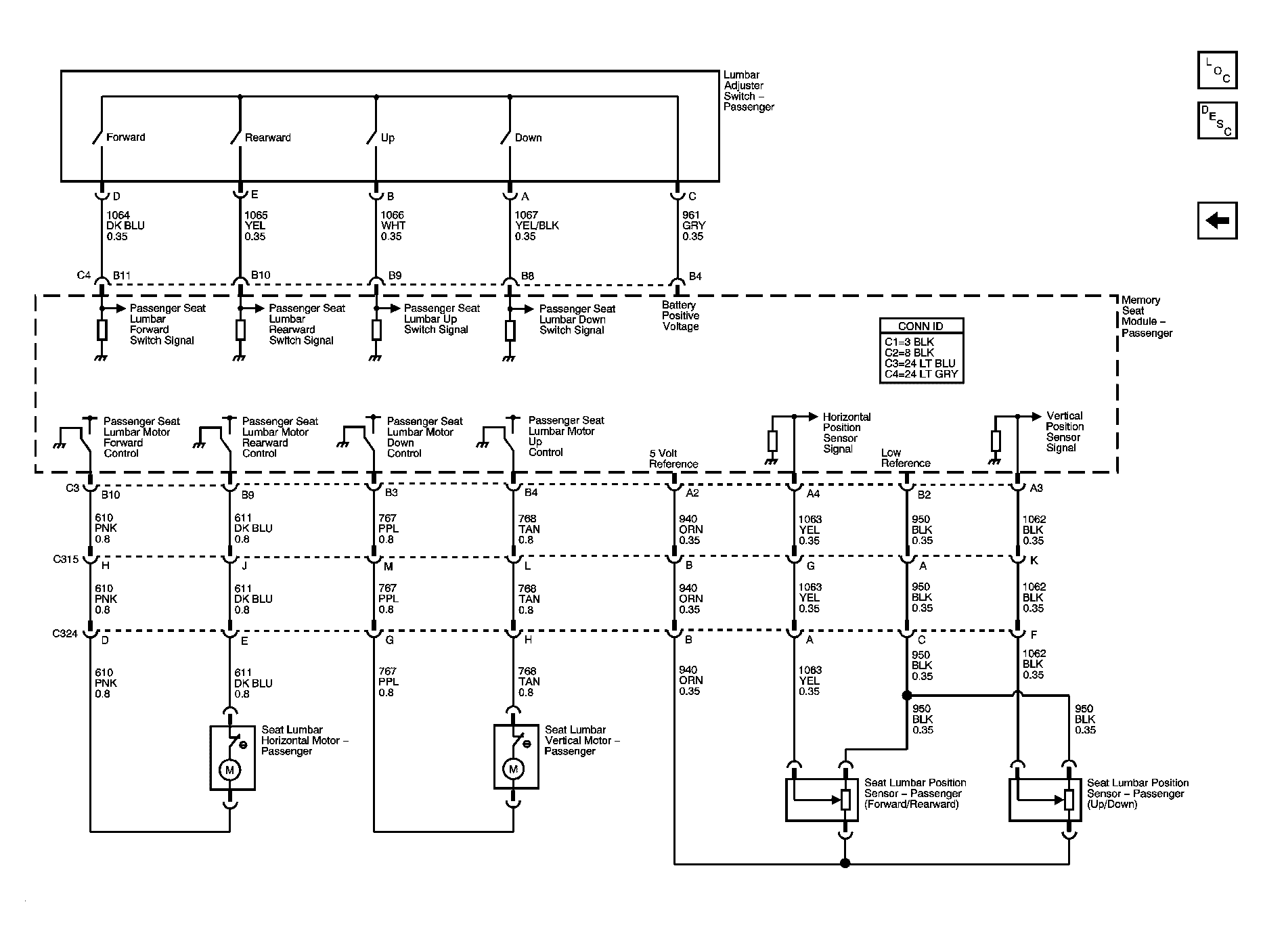

Fig 4: Passenger Seat Controls Schematic - W/Heat

Courtesy of GENERAL MOTORS CORP.
