Schematic And Routing Diagrams

Fig 1: Seat Belt Schematic Icons
G01804175Courtesy of GENERAL MOTORS CORP.

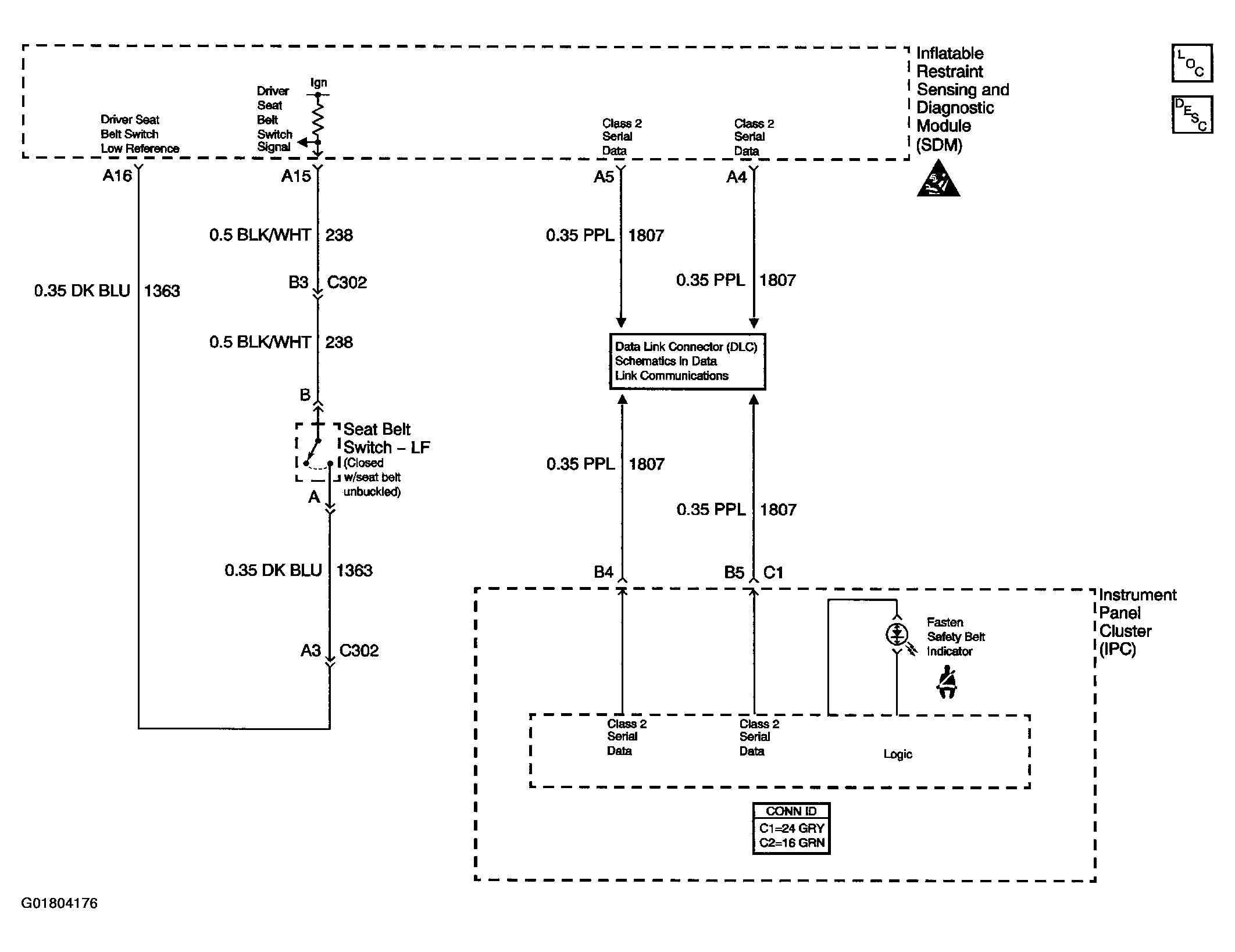

Fig 2: Seat Belt Schematics
G01804176Courtesy of GENERAL MOTORS CORP.
