Fuse Block-Rear

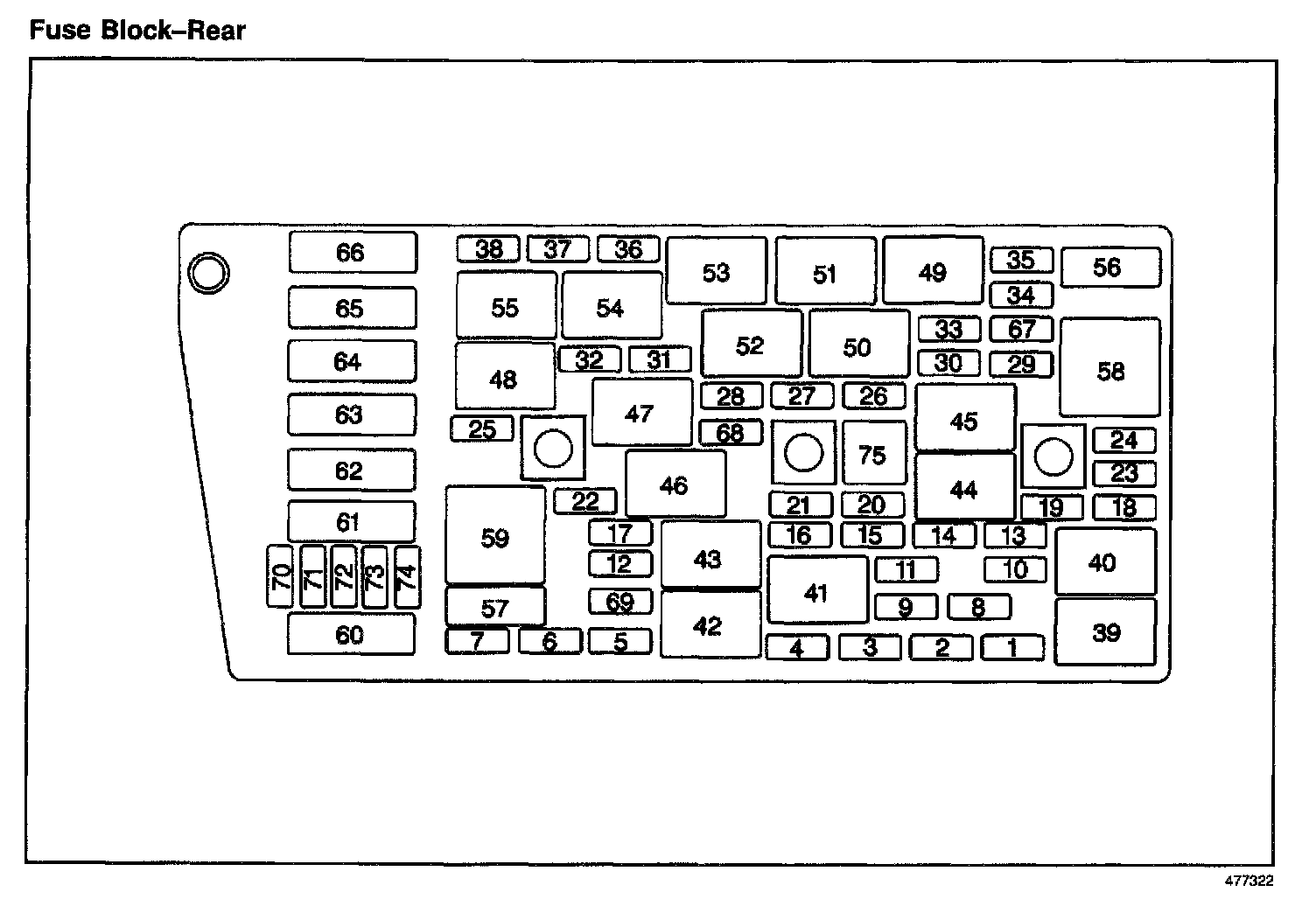

Fuse Block-Rear (Part 1 Of 3):

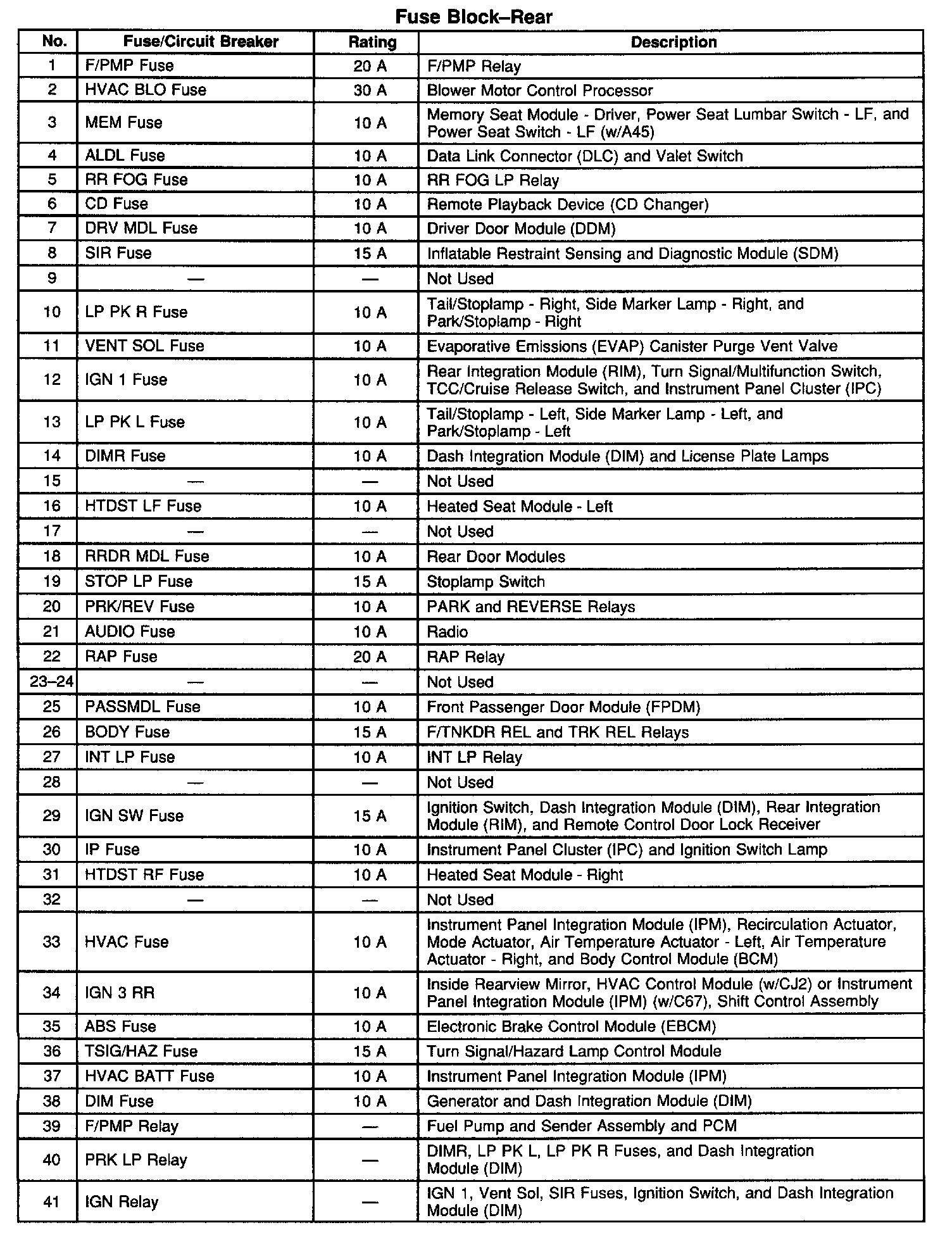

Fuse Block-Rear (Part 2 Of 3):

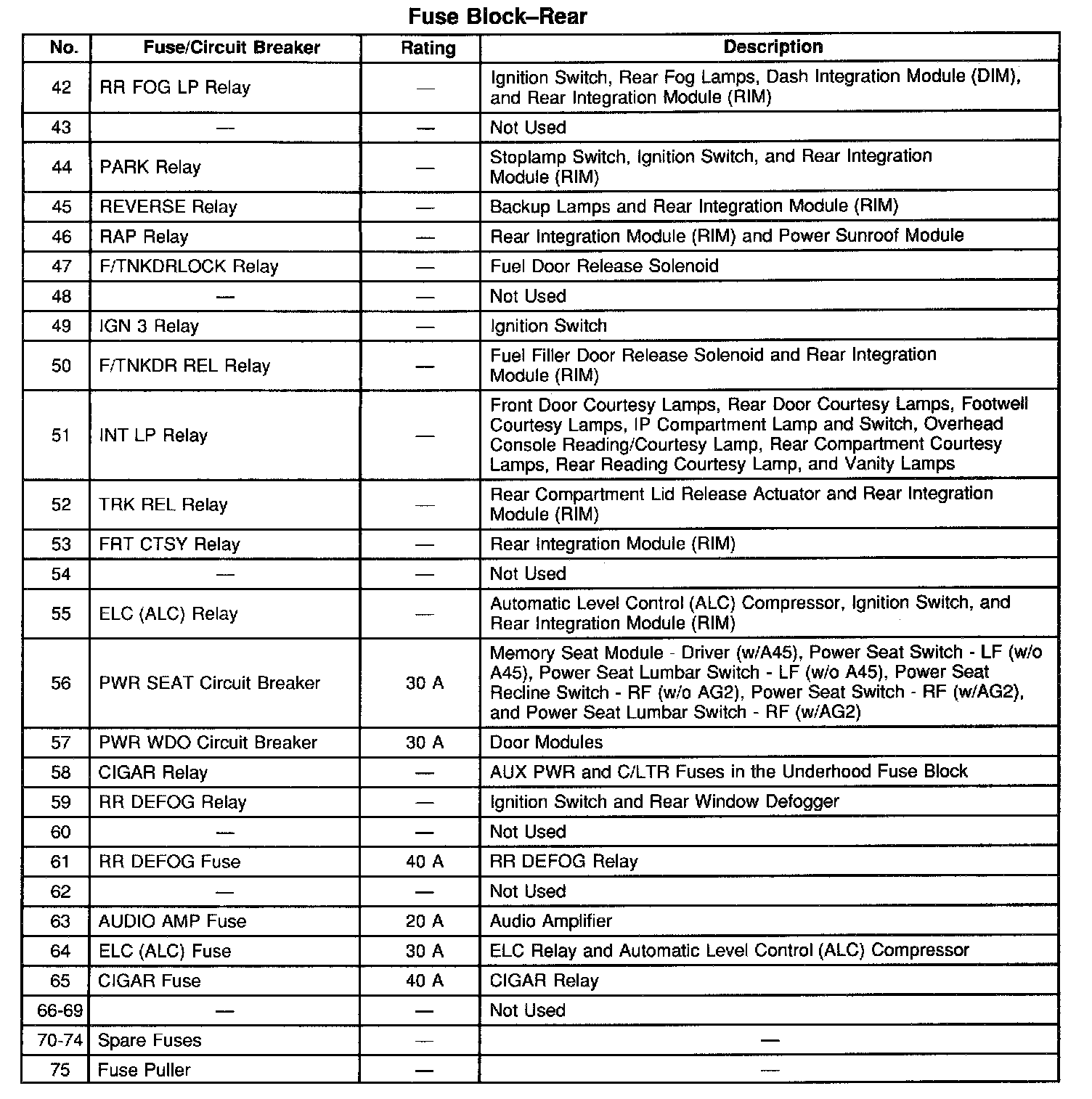

Fuse Block-Rear (Part 3 Of 3):




"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
